Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-88

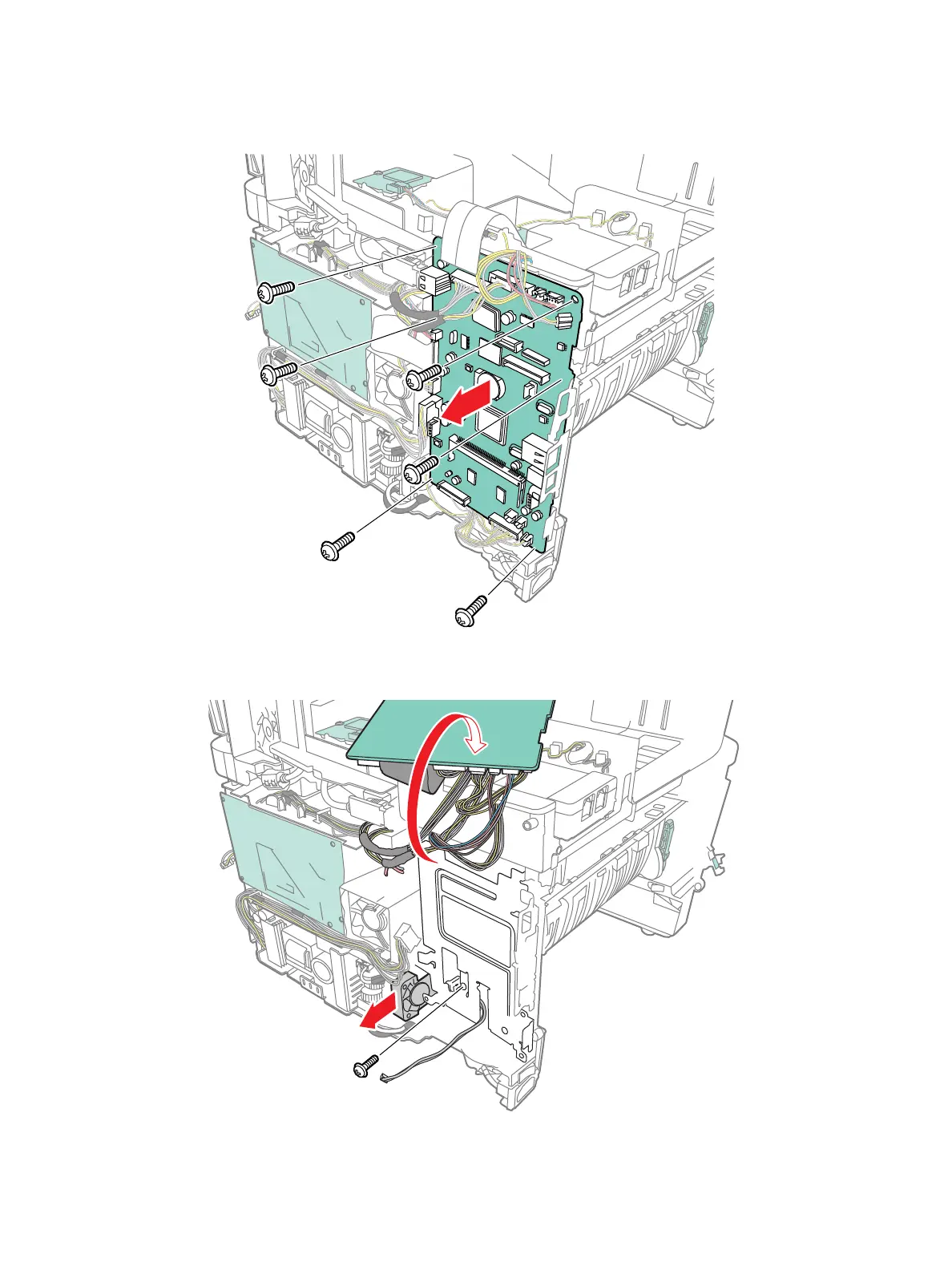

7. Remove 6 screws (silver, flanged, tap, 10 mm).
8. Remove 1 screw (silver, flanged, tap, 10 mm) and pull the Main PWB plate out enough to remove
the fan (Parts List 3.1A Frame (2 of 2), PL 3.1A.57) and fan wire.
To Next Page
