Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-115

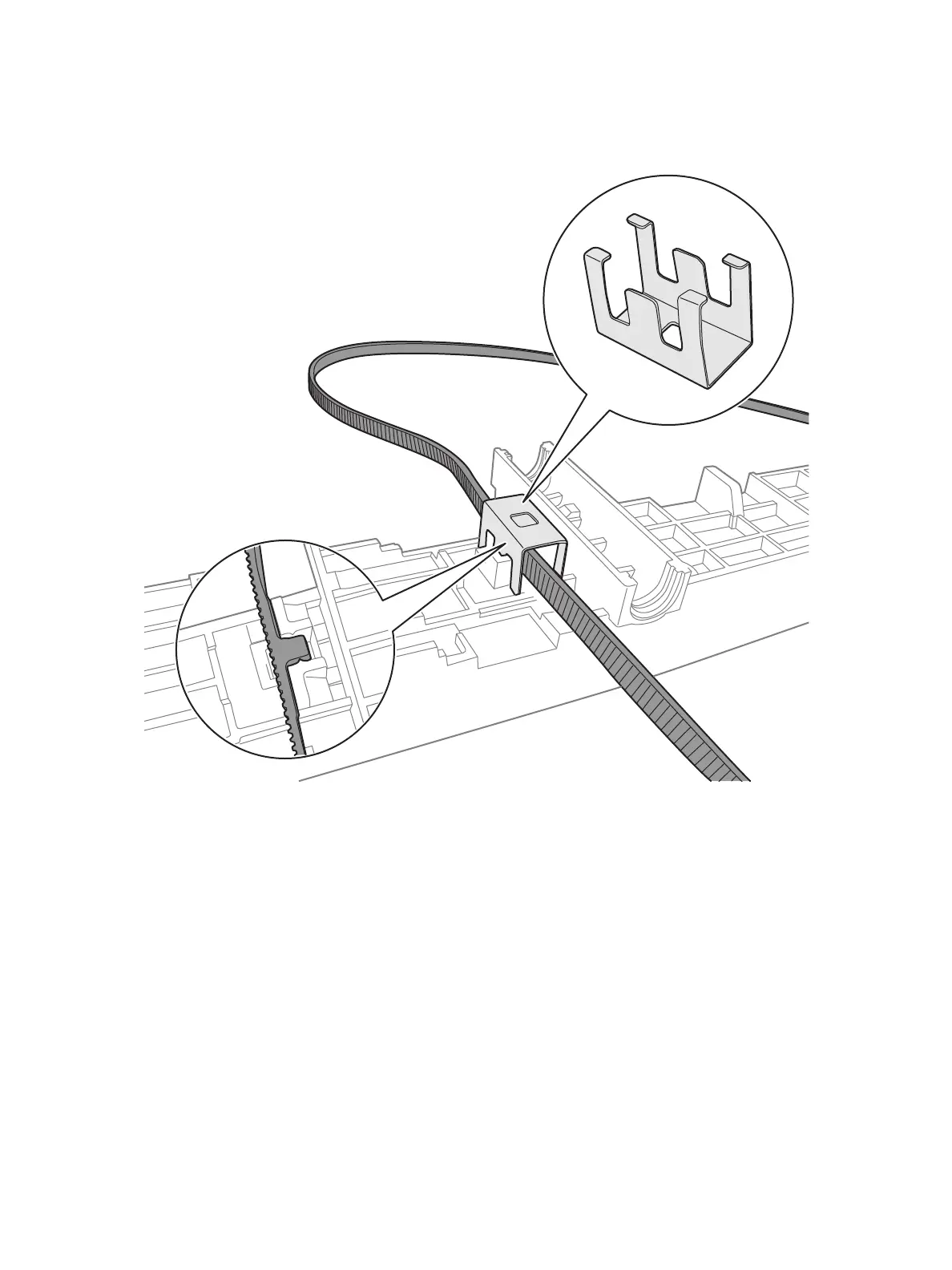

6. Disengage the tabs and remove the belt clip, and then remove the Timing Gear Belt (Parts List 9.2
WorkCentre 3335/3345 Platen, PL 9.2.13).
s3320-187
