Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-120

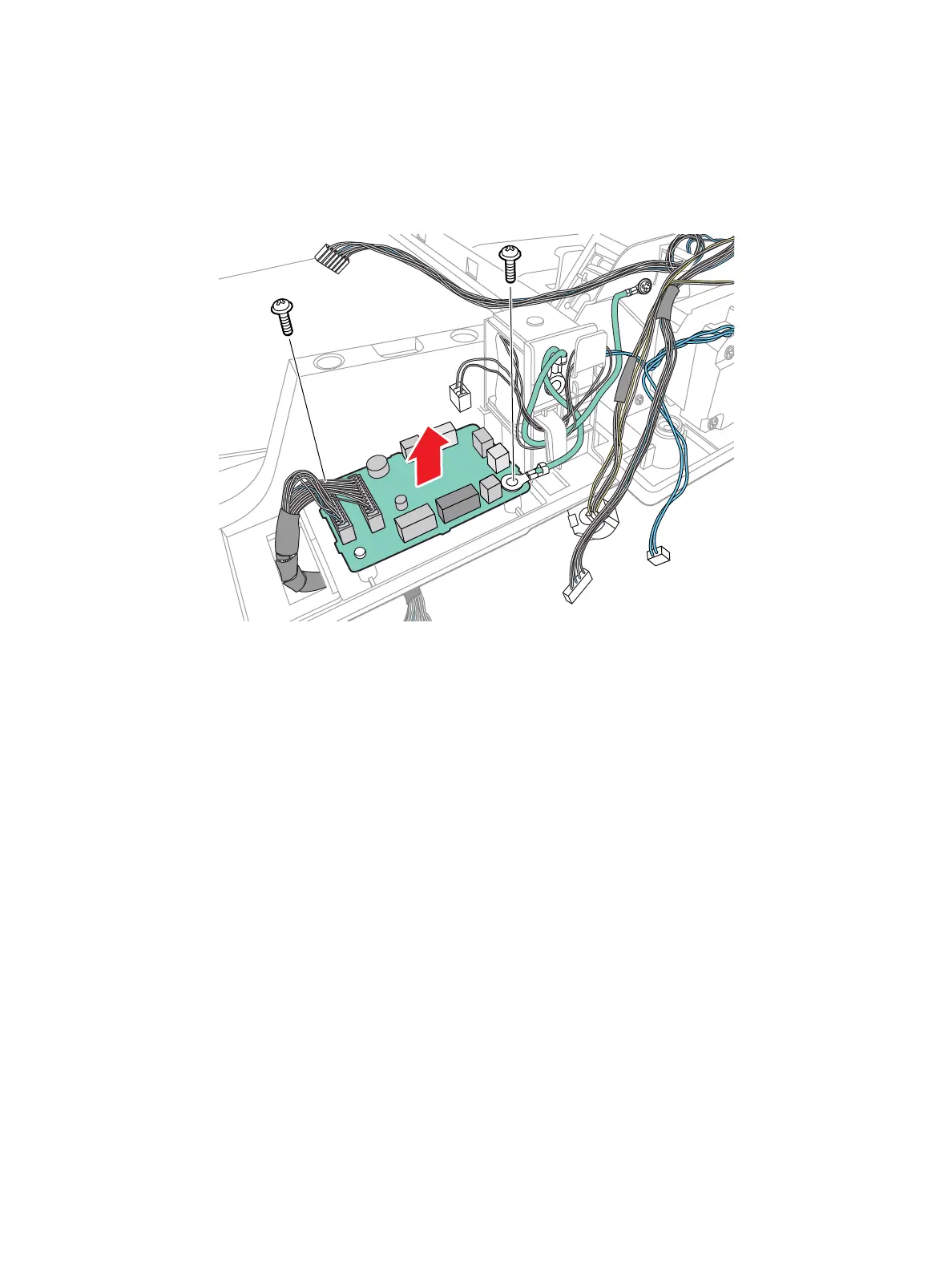

5. Disconnect all connections on the DADF Board (Parts List 8.1A WorkCentre 3345 DADF, PL
8.1A.13) and unlace the wiring.
6. Remove 2 screws that secure the DADF Board (Parts List 8.1A WorkCentre 3345 DADF, PL 8.1A.13)
and remove the board.
To Next Page
