Xerox WorkCentre 3345

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-146
Note: In the next step, a small flat blade Screwdriver will make the removal much easier.

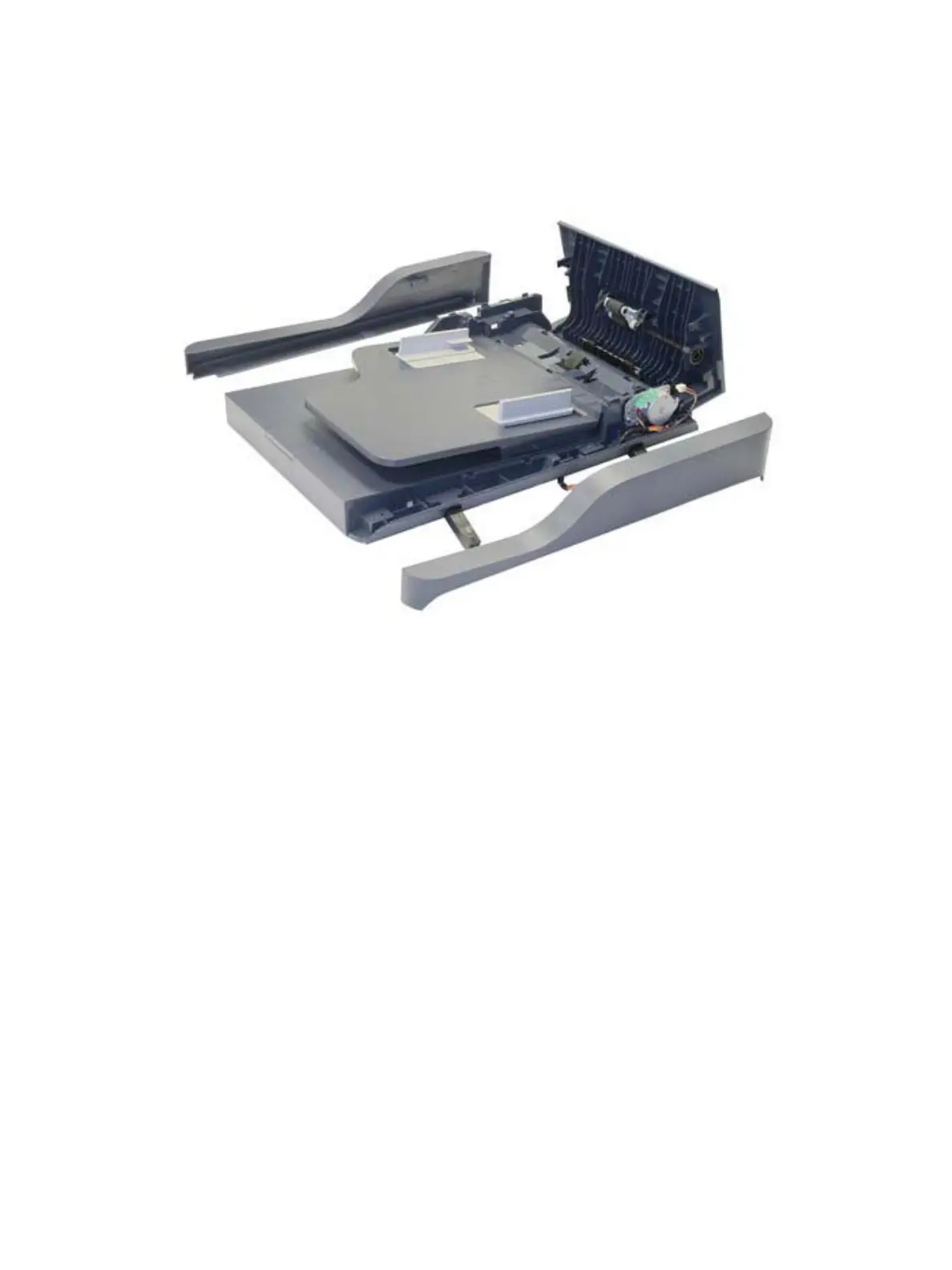

4. Remove the Front Cover from the bottom of the ADF and remove the Rear Cover from the top of
the ADF.
