Virtex-5 RocketIO GTP Transceiver User Guide www.xilinx.com 249
UG196 (v1.3) May 25, 2007
Microstrip/Stripline Bends
R

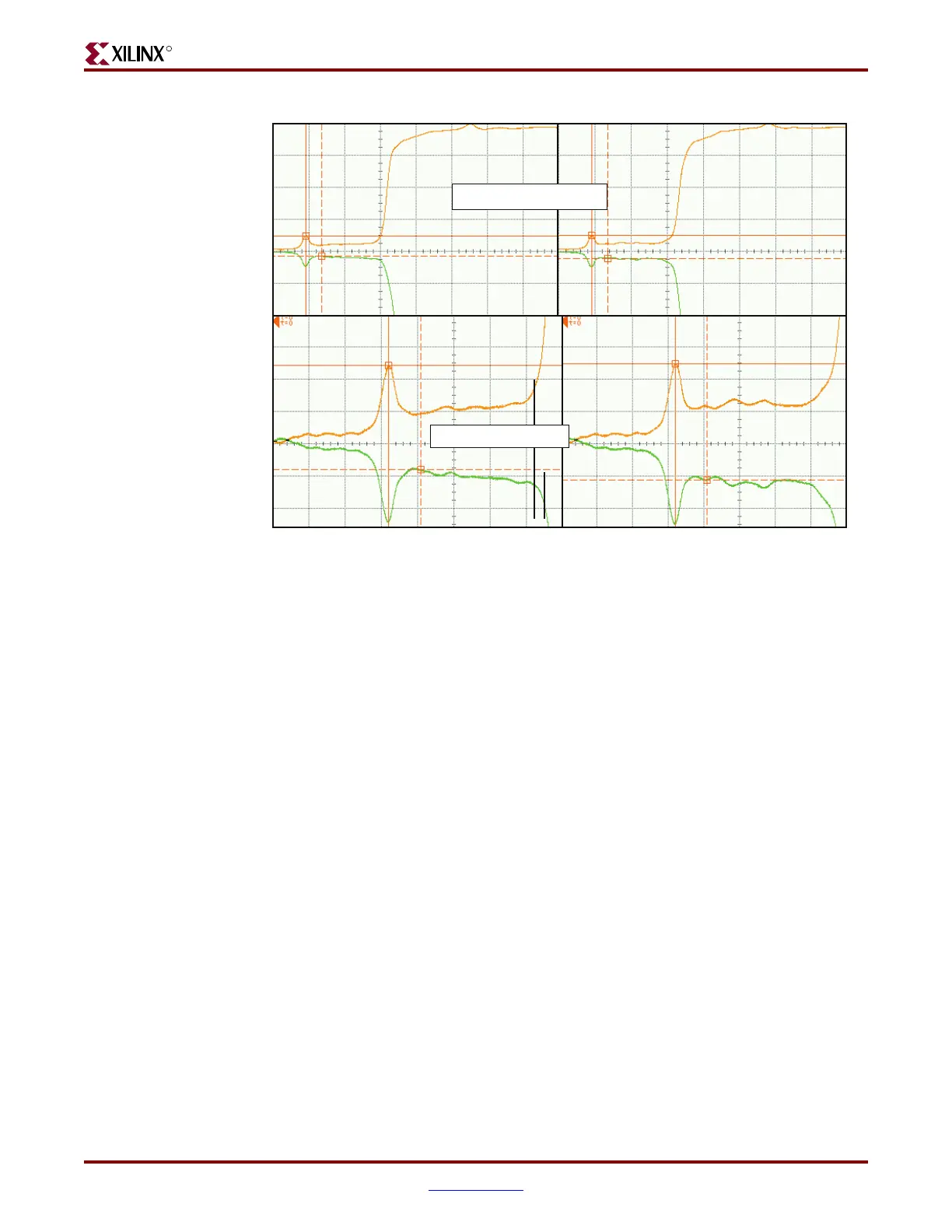

Figure 13-20: Measured TDR of 45 Degree Bends with and without Jog-Outs
UG196_c13_20_051406
No Jog-outs
No Jog-outs
With Jog-outs
With Jog-outs
Turns & Jog-outs
Tu r ns
Skew
50 mV, 200 ps Per Div.
10 mV, 100 ps Per Div.
