Xilinx Zynq UltraScale+ ZCU216 User Manual

Connector
Table 28: RFMC 2.0 Connector Parameters
Parameter Value
Part Number LPAM-50-01.0-L-08-2-K-TR
Data Rate 18 Gb/s
Connector Type LP Array (.050"/1.27 mm pitch)
IO pins 8x50
Stack Height .157"/4.00 mm (Mated with LPAF-50-03.0-L-08-2-K-TR)
Make SAMTEC
Description Low Profile Open Pin Field Array, male connector
Data Sheet See the Samtec website.

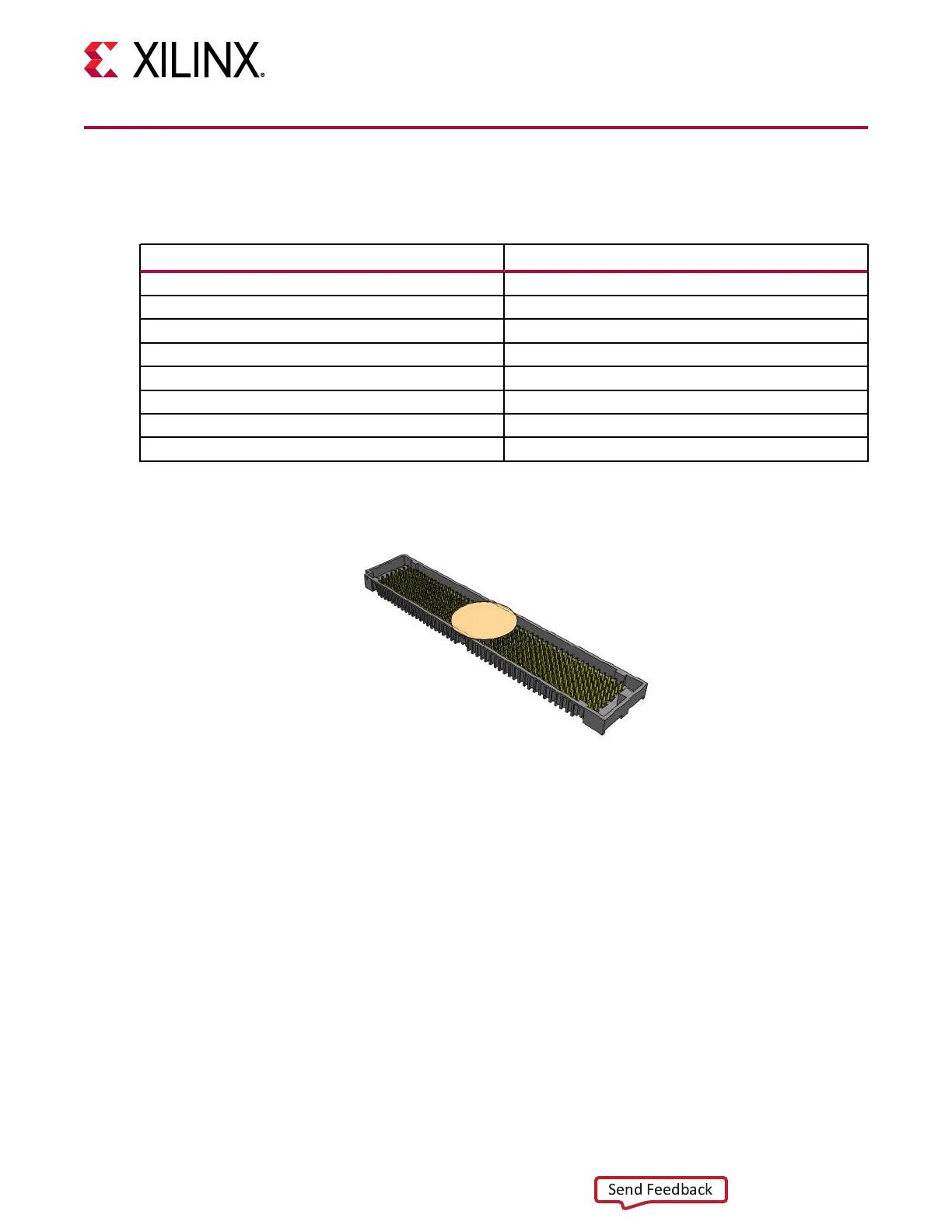

Figure 25: LPAM-50-01.0-L-08-2-K-TR 3D View
Appendix C: XM650/XM655 Balun Add-on Cards for RFSoC EVM
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 72
Send Feedback
