Xilinx Zynq UltraScale+ ZCU216 User Manual

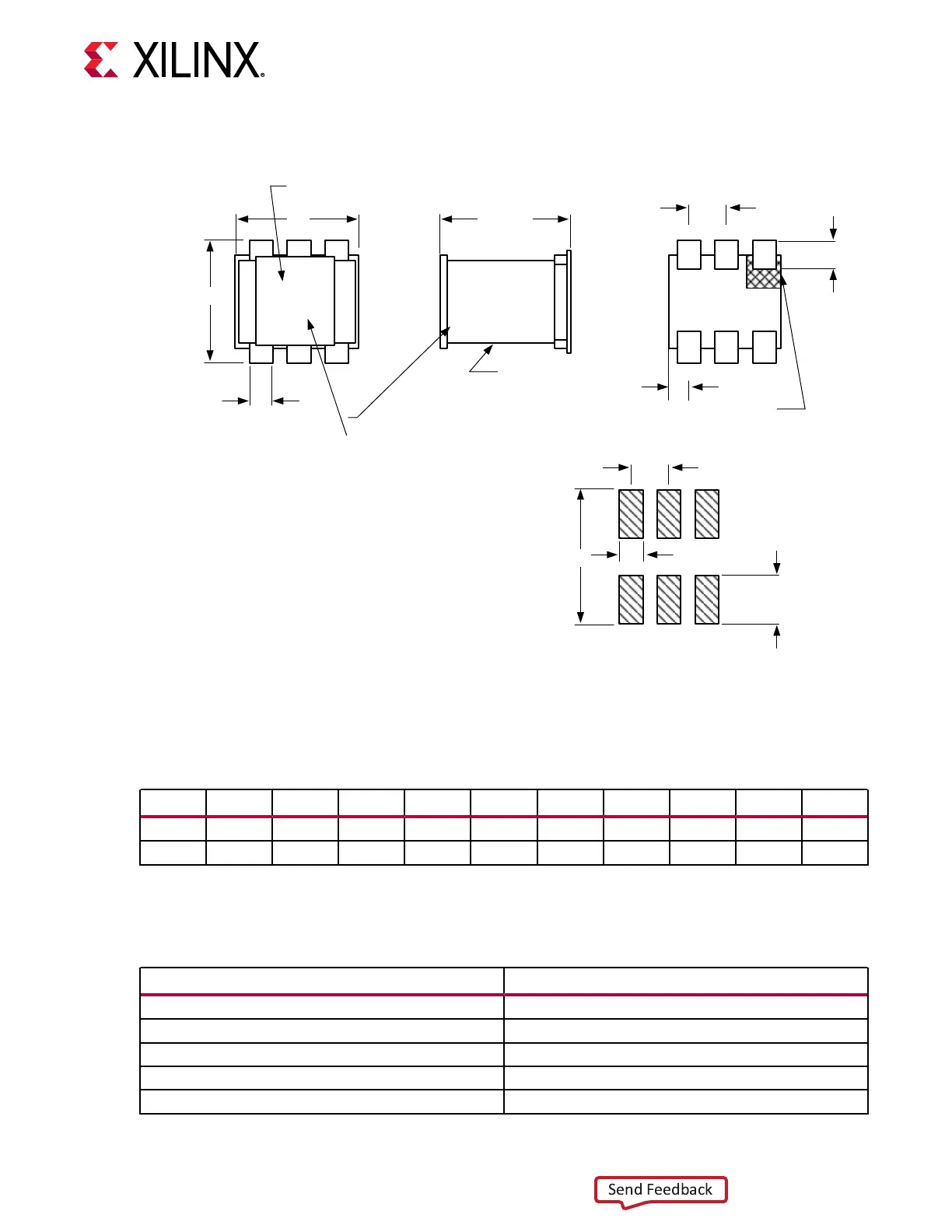

Figure 36: Low Frequency Balun Drawing
1 2 3
6 5 4
YY
C MAX
B
A
G TYP
3 2 1
4 5 6
D TYP
E TYP
F TYP
SEE NOTE 3
IOP-HAT/PICK & PLACE SURFACE AREA
(.10x.10) MIN
Total thickness: .013 inches MAX.
MODEL MARKING (ORIENTATION)
COMPONENT AREA
D TYP
J
K TYP
H TYP
PCB Land Pattern
Suggested Layout
Tolerance to be within .002
X23306-093019
The following table lists the outline dimensions for the gure above.
Table 31: Outline Dimensions (mm)
A B C D E F G H J K wt
0.160 0.150 0.160 0.050 0.040 0.025 0.028 0.065 0.190 0.030 grams
4.06 3.81 4.06 1.27 1.02 0.64 0.71 1.65 4.83 0.76 0.15
Medium Frequency Baluns
Table 32: Medium Frequency Balun Part Number
Parameter Value
Part Number BD1631J50100AHF
Manufacturer Anaren
Order P/N 1173-1059-2-ND
Vendor Digikey
Description Balun 1.6 GHz-3.1 GHz 50/100 0805
Appendix C: XM650/XM655 Balun Add-on Cards for RFSoC EVM
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 86
Send Feedback
