Xilinx Zynq UltraScale+ ZCU216 User Manual

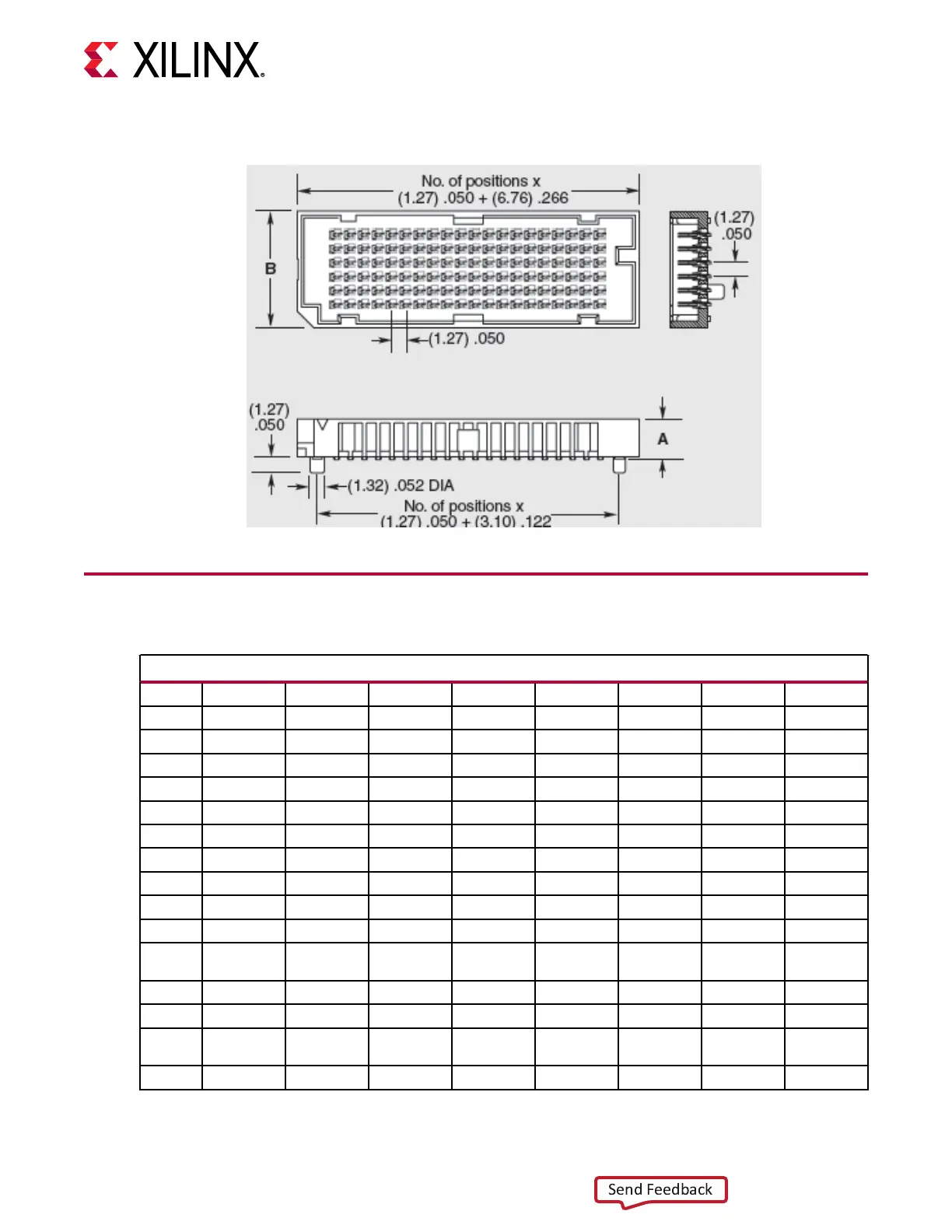

Figure 26: LPAM Connector Drawing
XM650/655 Connector Pinout
J55 DAC
A B C D E F G H
1 GND DACIO_VADJ GND DACIO_VADJ GND DAC_AVTT GND Spare 1
2 DACIO_00 GND DACIO_04 GND DACIO_08 GND DACIO_12 GND
3 GND DACIO_02 GND DACIO_06 GND DACIO_10 GND DACIO_14
4 DACIO_01 GND DACIO_05 GND DACIO_09 GND DACIO_13 GND
5 GND DACIO_03 GND DACIO_07 GND DACIO_11 GND DACIO_15
6 12V GND 12V GND 12V GND 12V GND
7 GND 12V GND 12V GND 12V GND 12V
8 5v0 GND 5v0 GND 5v0 GND 5v0 GND
9 GND 5v0 GND 5v0 GND 5v0 GND 5v0
10 GND GND GND GND GND GND GND GND
11 GND DAC231_T3_
CH3_N
DAC231_T3_
CH3_P
GND GND GND GND GND
12 GND GND GND GND GND GND GND GND
13 GND GND GND GND GND GND GND GND
14 GND GND GND GND GND DAC231_T3_
CH2_N
DAC231_T3_
CH2_P
GND
15 GND GND GND GND GND GND GND GND
Appendix C: XM650/XM655 Balun Add-on Cards for RFSoC EVM
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 73
