Xilinx Zynq UltraScale+ ZCU216 User Manual

XM650: No Cable or SMAs on Module
Balun/Filter
XM655
Low Frequency Baluns
Table 30: Low Frequency Balun Part Number
Parameter Value
Part Number TCM2-33WX+
Manufacturer Minicircuits
Order P/N TCM2-33WX+
Vendor Minicircuits
Description 10 to 3 GHz RF Transformer
Data Sheet See the Minicircuits website.

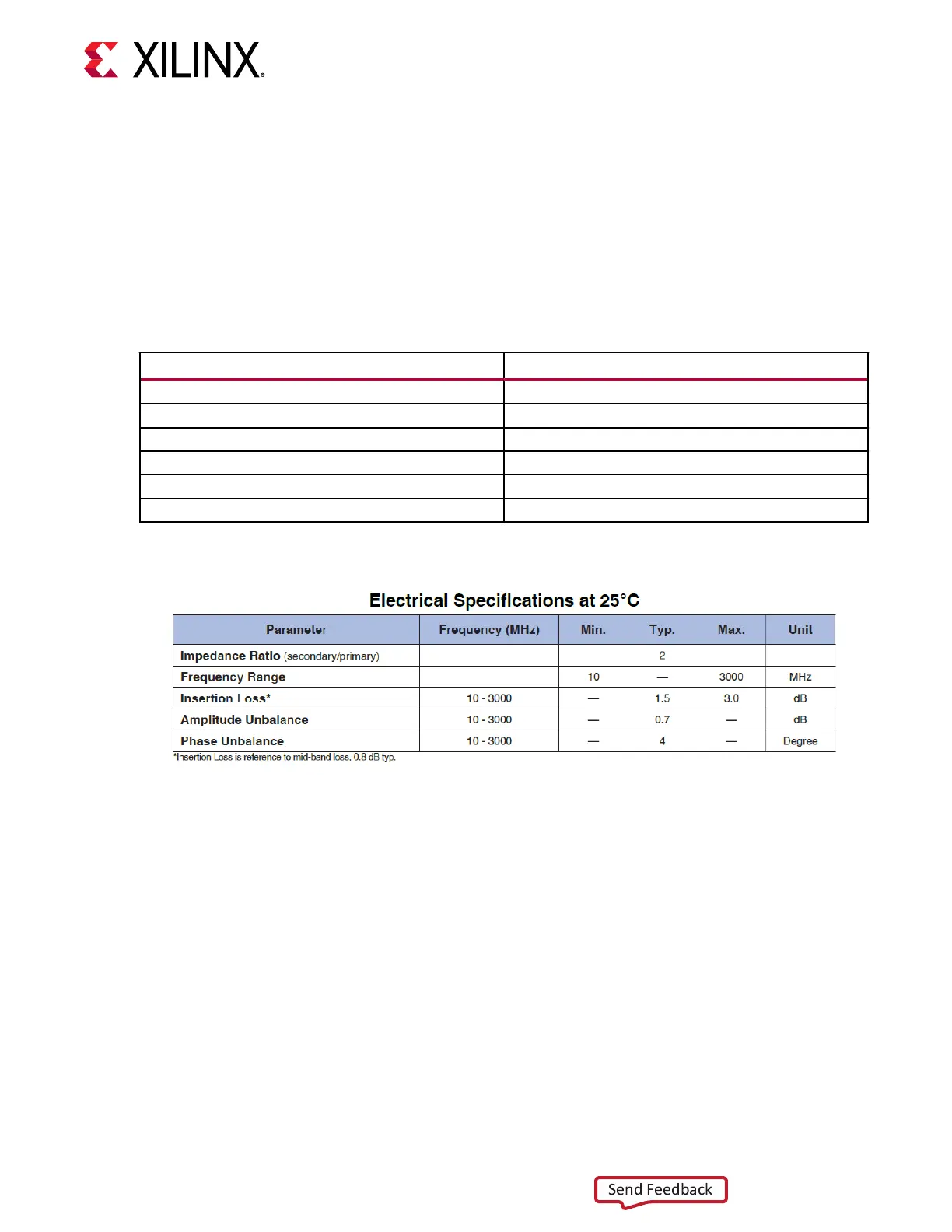

Figure 35: Low Frequency Balun Specifications
Appendix C: XM650/XM655 Balun Add-on Cards for RFSoC EVM
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 85
