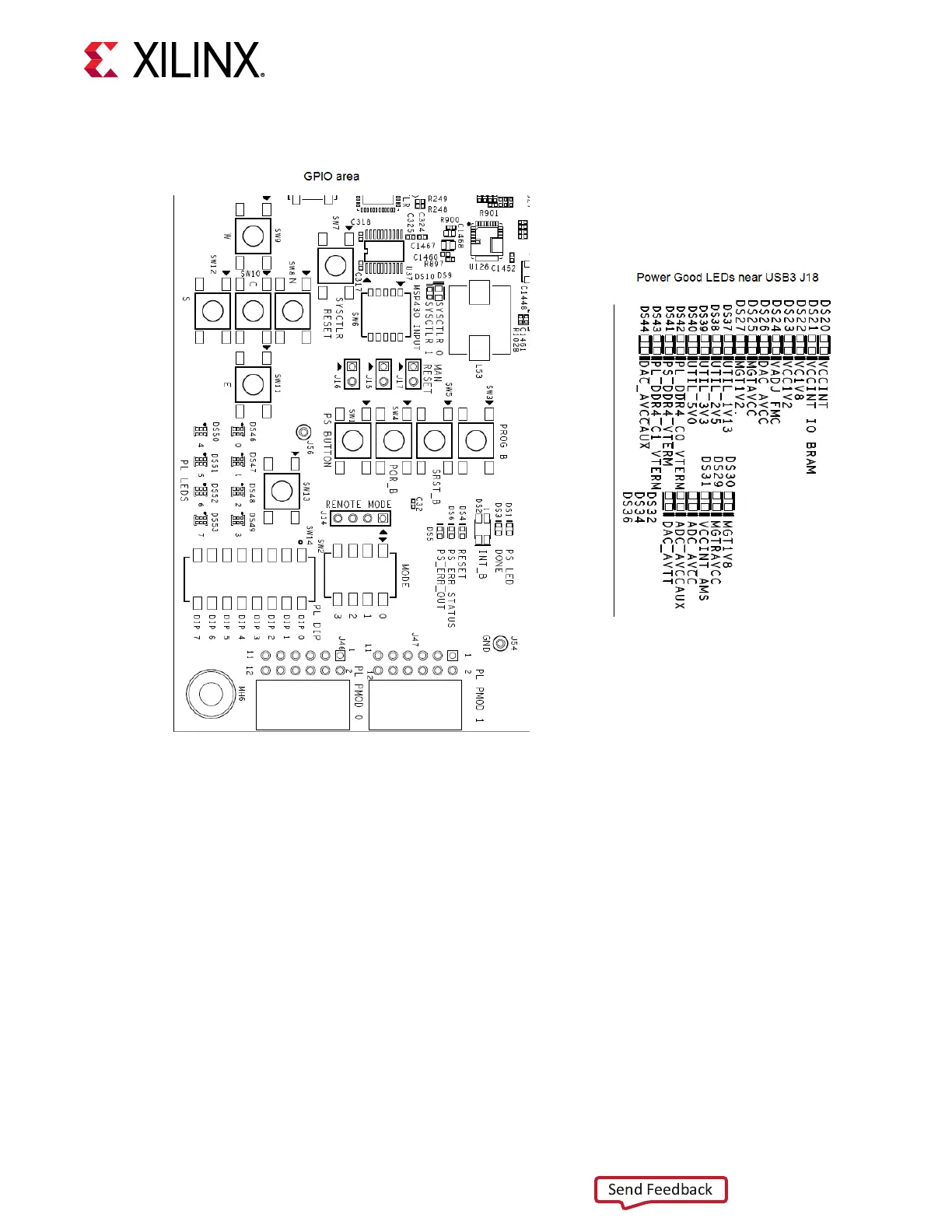

Figure 17: GPIO and Power Status LED areas
Multi-Gigabit Transceivers
The ZU49DR Zynq UltraScale+ RFSoC has 4 GTR gigabit transceivers (6 Gb/s capable) on the PS-
side and 16 GTY gigabit transceivers (28 Gb/s capable) on the PL-side. Two of four GTR
transceivers are used. All 16 GTY transceivers are used.
GTY Transceivers
The GTY transceivers in the ZU49DR are grouped into four channels or quads. The reference
clock for a quad can be sourced from the quad above or the quad below the GTY quad of
interest. The 4 GTY quads used on the ZCU216 board have the connecvity listed below. The
following table shows the MGTY assignments.
Chapter 3: Board Component Descriptions
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 54
