Mounting Holes/Keepouts
There are four Jack screws on the module and two edge stando, as shown in the gure above.
The boards are screwed to the ZCU216 board.
Table 29: Mounting Screws and Standoff Details
Parameters Screw Standoff
Part number JSO-0415-01 KEYSTONE 1894
Length 4 mm board stack height 0.625" + Rubber bumper
Ordering Part Number JSO-0415-01 1894
Description Jack screw press-in standoff #4-40 0.625" ALUM STANDOFF
Data Sheet See the Samtec website. –
Functional Description
Cables/SMAs
XM655
Cables: Carlisle Core HC2 8 Channel – Male, 3.5 mm TM40-0157-00

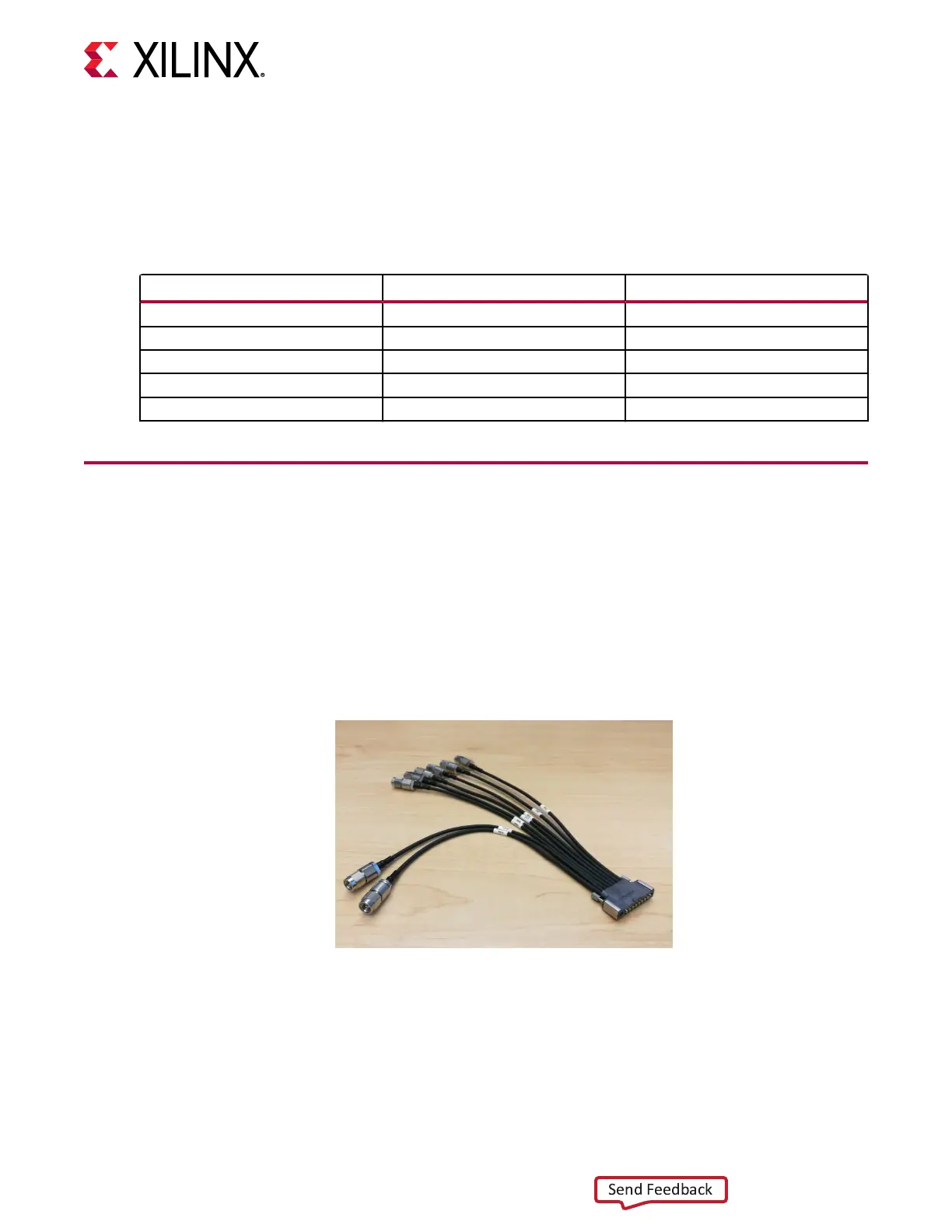

Figure 31: Carlisle Core HC2 8 Channel–Male Cable
Appendix C: XM650/XM655 Balun Add-on Cards for RFSoC EVM
UG1390 (v1.1) July 10, 2020 www.xilinx.com
ZCU216 Board User Guide 82
