Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
34 21790_05

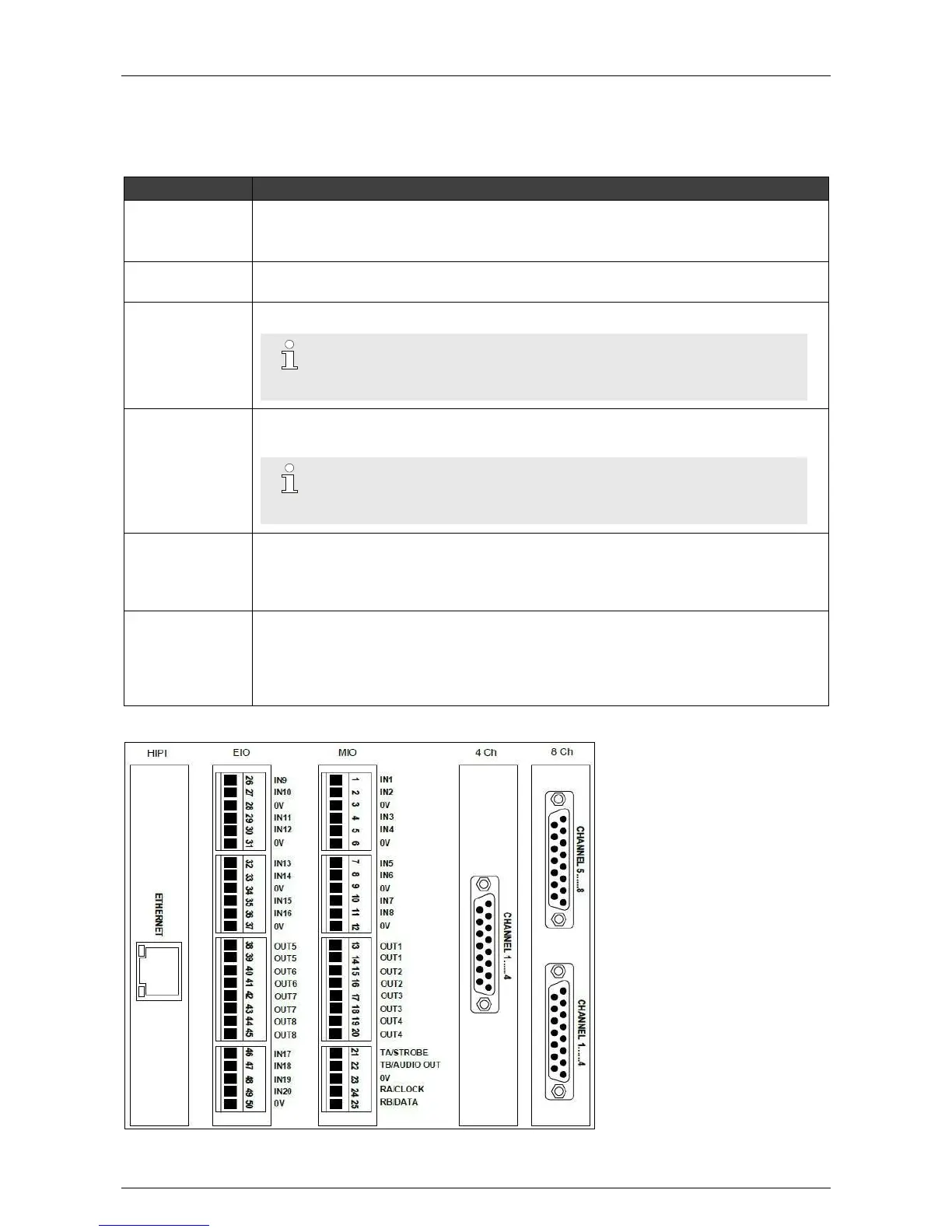

7 Extension Boards
7.1 Overview
Type
Description
HIPI
PCI Express extension board for 8 IP cameras. (Not compatible with MiTAC PH10LU
motherboard)
See also technical datasheet 19531930 HIPI card.
Ethernet
For FastTrace 2E only: Ethernet connection for IP camera network up to 32 IP
cameras. An Ethernet card is not required with the MiTAC PH10LU motherboard.
4ch/8ch
DS40xx
PCI extension board for 4 or 8 analogue cameras, including audio inputs per camera.
Note
Use these PCI cards on an Intel DG31PR or Intel DG41TY
motherboard.
4ch/8ch
DS42xx
PCI Express extension board for 4 or 8 or 16 analogue cameras, including audio
inputs per camera.
Note
Use these PCI Express cards on an Intel DH55TC, Intel DH61BE, or
MiTAC PH10LU motherboard.
Main I/O
Main Input Output board: USB extension card, inserted by default in the free slots, or if
necessary in a free PCI or PCI Express connector.
For more information, see technical datasheet 19531920 Main & Extension I/O
Cards or 19531900 Main I/O and Extension I/O Next Generation.
Extension I/O
Extension Input Output board: extension board, inserted by default in the free slots, or
if necessary in a free PCI of PCI Express connector and linked to the Main I/O board,
extending the number of inputs and outputs.
For more information, see technical datasheet 19531920 Main & Extension I/O
Cards or 19531900 Main I/O and Extension I/O Next Generation.
