Xtralis ADPRO FastTrace 2 series User Manual

Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
66 21790_05
Note
Check the polarity! If you reverse the connection, the motherboard receives a permanent reset
signal.

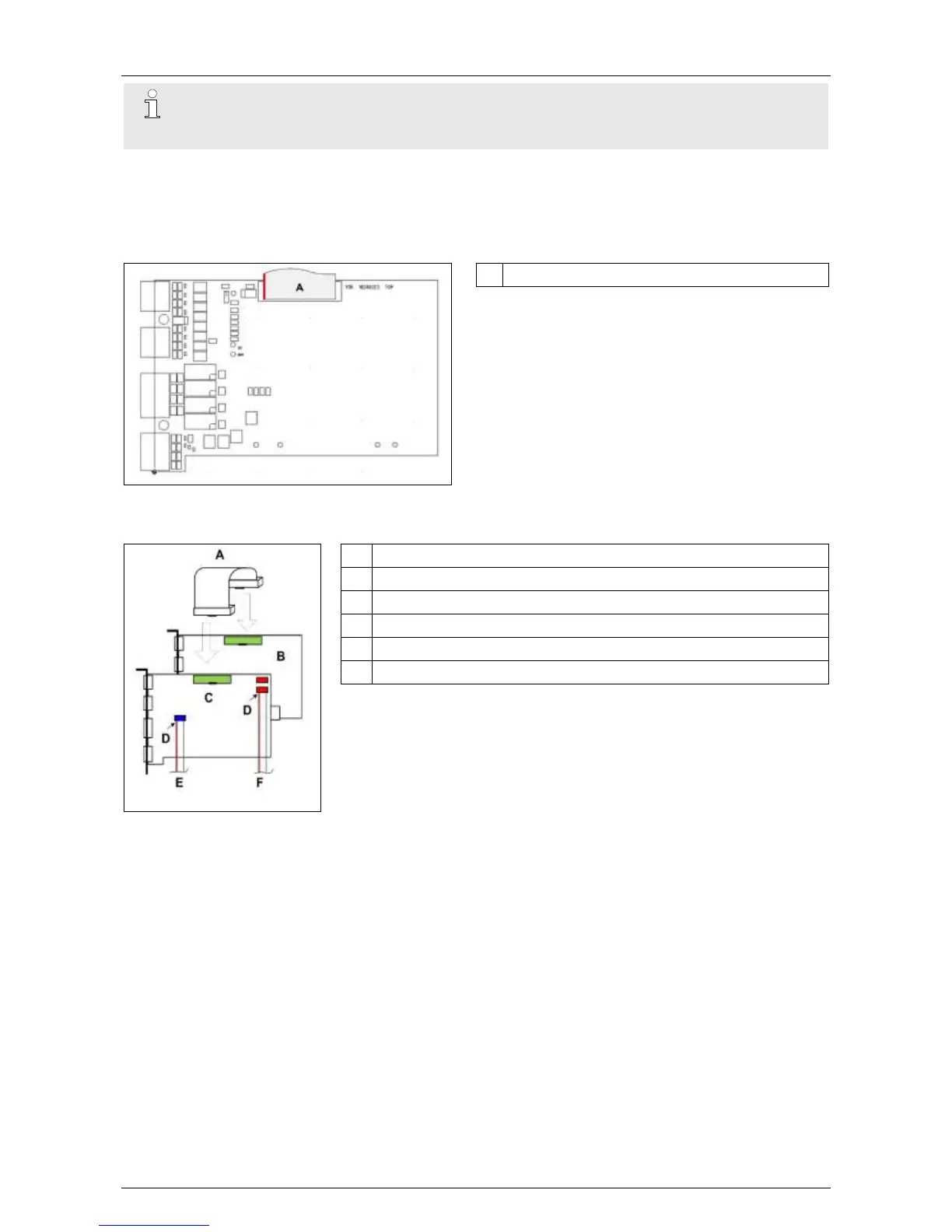

9.9 Adding an Extension I/O Card
9.9.1 Settings on the Extension I/O Card
A
From Main I/O card (#21760300)
No settings are required on the Extension I/O card.
9.9.2 Installation
A
Flat cable (#21760300)
B
Extension I/O card
C
Main I/O card
D
Red conductor = pin 1
E
To motherboard AUDIO connector
F
To motherboard USB connector
To install an Extension I/O card, proceed as follows:
1. Insert the extension card into an appropriate slot on the
motherboard. For more information, see Physical Position on
page 60.
2. Connect the Main I/O card to the Extension I/O card using flat
cable #21760300 (A).
