ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 17

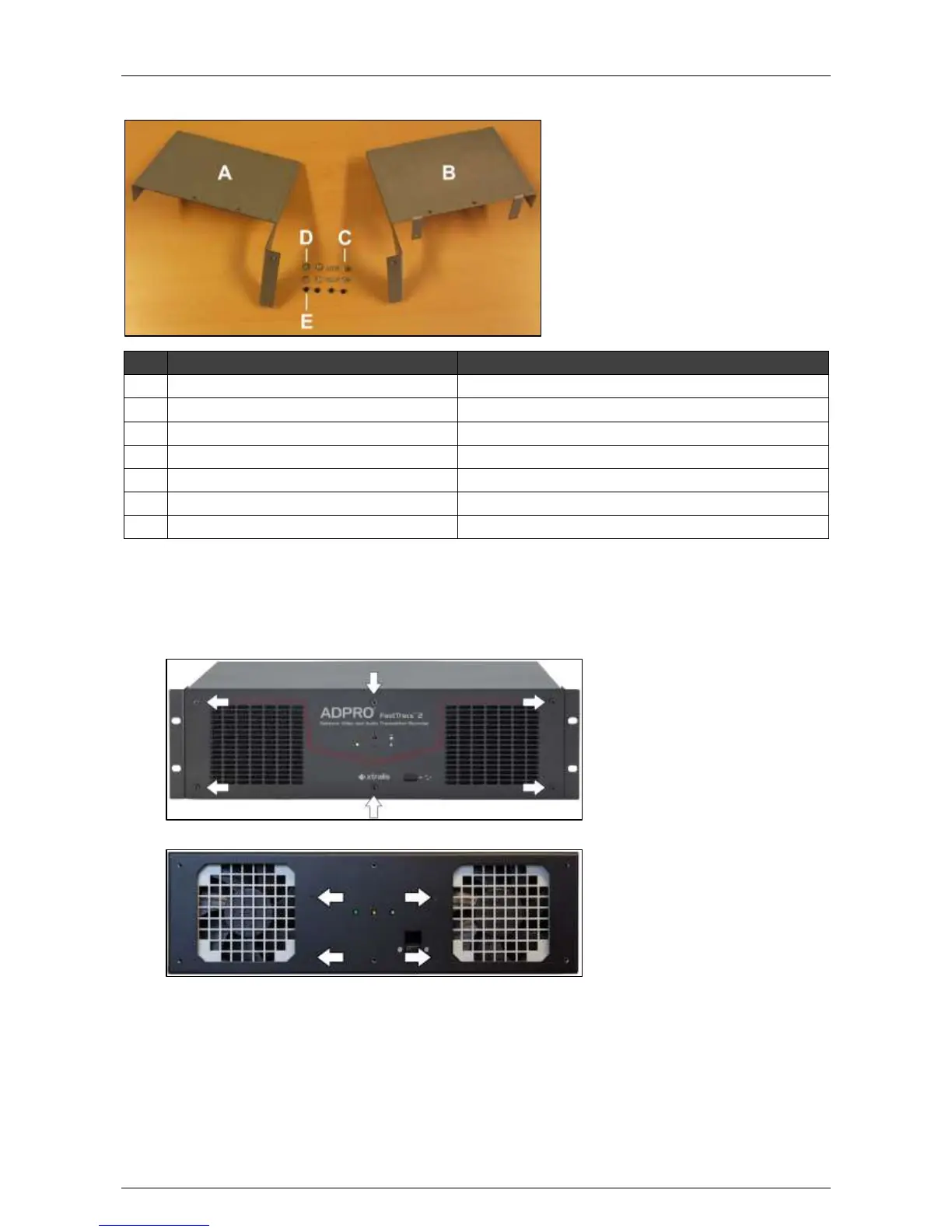

3.4 Material List (for 1 Hard Disk)
Part
Amount+ Reference Number
A
Support for disk 2
1 x #1729121*
B
Support for disk 3 and 4
1 x #1729122*
C
Disk screws
4 x #17434080 or #17434060
D
Dented washers M4
4 x #17720050
E
Mounting screws
4 x #17439080
SATA cable
1 x #1652087*
Tie-wraps
1 x #17730220
3.5 Adding Hard Disks with an Intel DH55TC Motherboard
To add one or more hard disks with an Intel DH55TC motherboard, proceed as follows:
1. Switch off the power supply and remove the lid. Then remove the front plate.
You can now see the mounting holes for the disk bays:
