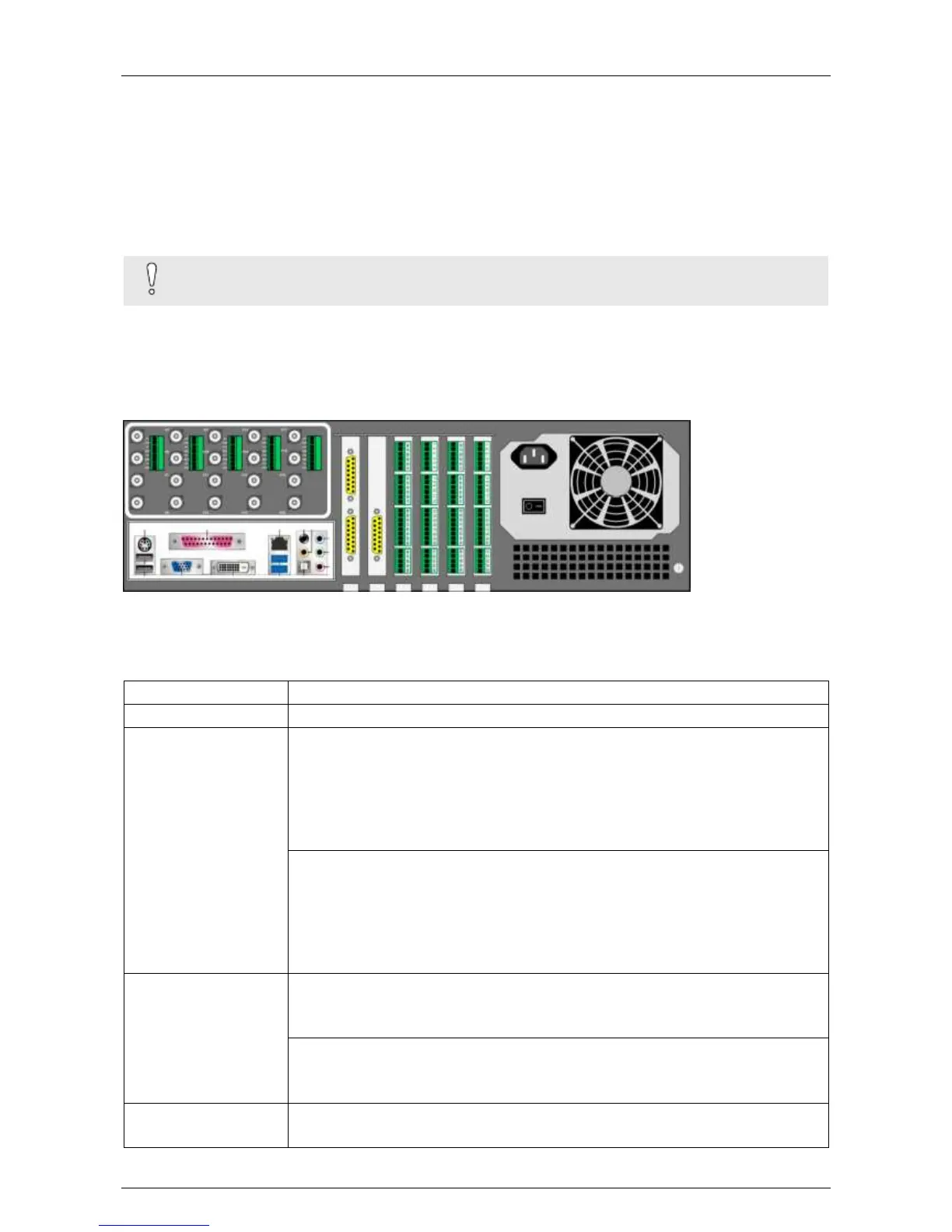

10 Required Encoder (A/V) Card
You use different video cards (encoder cards) with different motherboards in the FastTrace 2 video system:
 Use DS40xx-HCI encoder cards with the Intel DG31PR and Intel DG41TY motherboards.
 Use DS42xx-HFVI-E encoder cards with the Intel DH55TC, Intel DH61BE, and MiTAC PH10LU
motherboards.
Do not mix different cards within the same video system.
Caution!
The XOa 3 firmware does not support DS40xx-HCI encoder cards.
10.1 Number of Cameras
Depending on the installed encoder card(s), you have 4, 8, 12, 16, or 20 analogue A/V inputs. You can
connect analogue cameras to the rear of the FastTrace 2 video system using BNC RG59 or RG11 cables.
Each analogue camera needs a separate BNC input.
10.2 Technical Specifications of Analogue Cameras
video standard
PAL or NTSC
video compression
H.264
video resolution
PAL:
 QCIF (176 x 144)
 CIF (352 x 288)
 2CIF (704 x 288)
 DCIF (528 x 384) (not available with DS42xx A/V cards)
 4CIF (704 x 576)
NTSC:
 QSIF (176 x 120)
 SIF (352 x 240)
 2SIF (704 x 240)
 DSIF (528 x 320) (not available with DS42xx A/V cards)
 4SIF (704 x 480)
frames per second
PAL:
 CIF, 2CIF, DCIF: 25 fps / camera
 4CIF: 15 fps / camera (25 fps with DS42xx A/V cards)
NTSC:
 QSIF, SIF, 2SIF, DSIF: 30 fps / camera
 4SIF: 15 fps / camera (25 fps with DS42xx A/V cards)
audio
1 input per analogue camera, with screw connectors
input level: 2.0 Vp-p; 1000 ohm
