ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 57
9 Main and Extension I/O Cards Next Generation
9.1 Features
The Main I/O (MIO) and Extension I/O (EIO) Next Generation cards are internal I/O cards, to be fitted inside
the ADPRO FastTrace 2/2E system. They are also called OTB (on-the-board) cards.

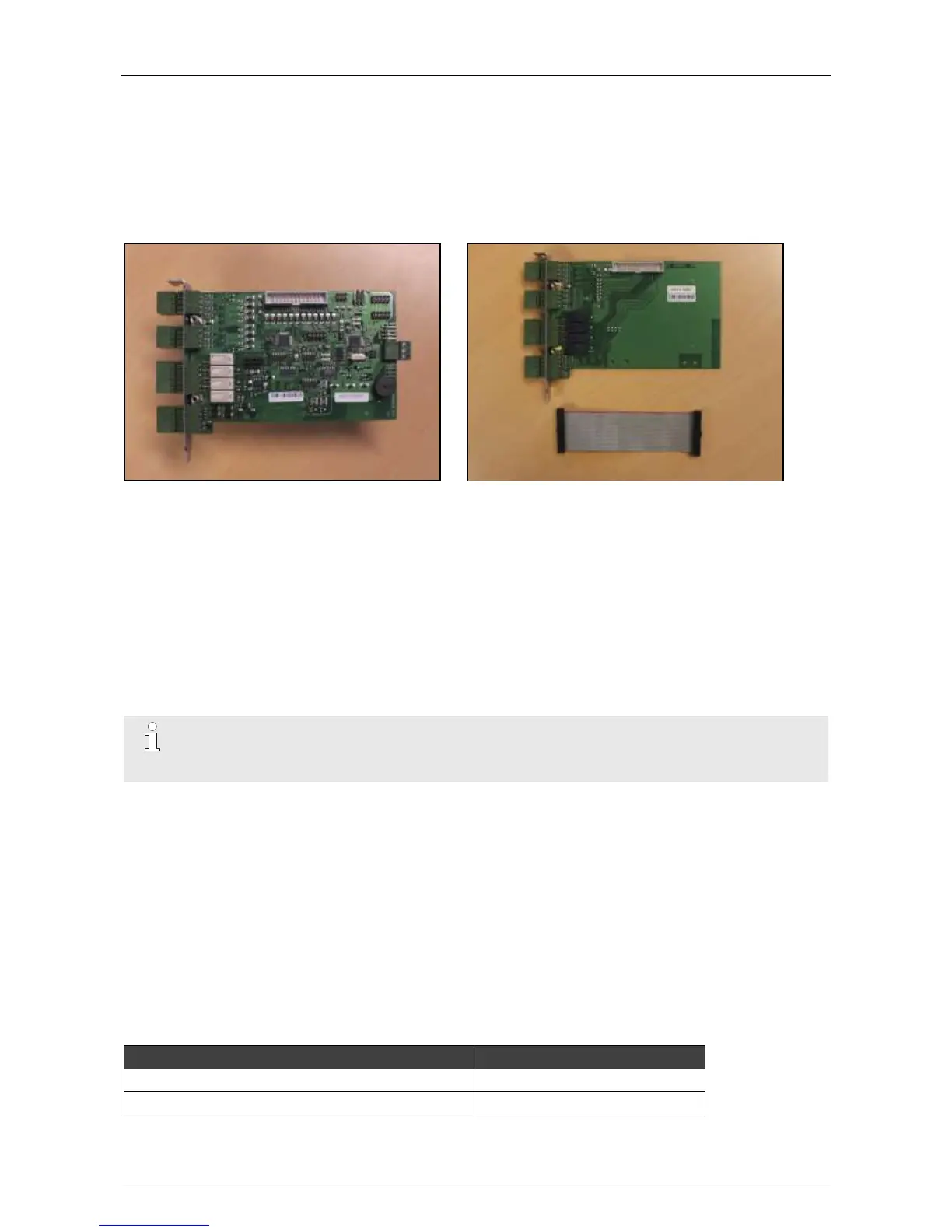

Main I/O Next Generation card:
Extension I/O Next Generation card:
These I/O cards offer:
8 tamper-protected inputs and 4 relay outputs (rated 14 VDC @ 1 A) on the Main I/O card
12 tamper-protected inputs and 4 relay outputs on the Extension I/O card
GND for every input
driver for PTZ cameras (half/full duplex RS-485) on the Main I/O card; you need to set 1 jumper to select
2- or 4-wire PTZ
driver for audio module/VM22 audio switcher on the Main I/O card; with improved audio quality
driver on the Main I/O card for front LED indicators of FastTrace 2/2E model
auto-detected Main I/O cards on FastTrace 2/2E system
The Main I/O and Extension I/O cards of the FastTrace 2/2E are compatible with the V3100
HYBRID.
9.2 Possible Configurations
You can configure maximum 2 sets of I/O cards on the FastTrace 2/2E:
Main I/O only
Main I/O + Extension I/O
2 x Main I/O + 1 x Extension I/O
2 x Main I/O + 2 x Extension I/O
9.3 Ordering Information
Use these reference numbers to place your order with Xtralis:
Main I/O card plus mounting set
Extension I/O card plus mounting set
