7.3.3 With Intel DH55TC Motherboard

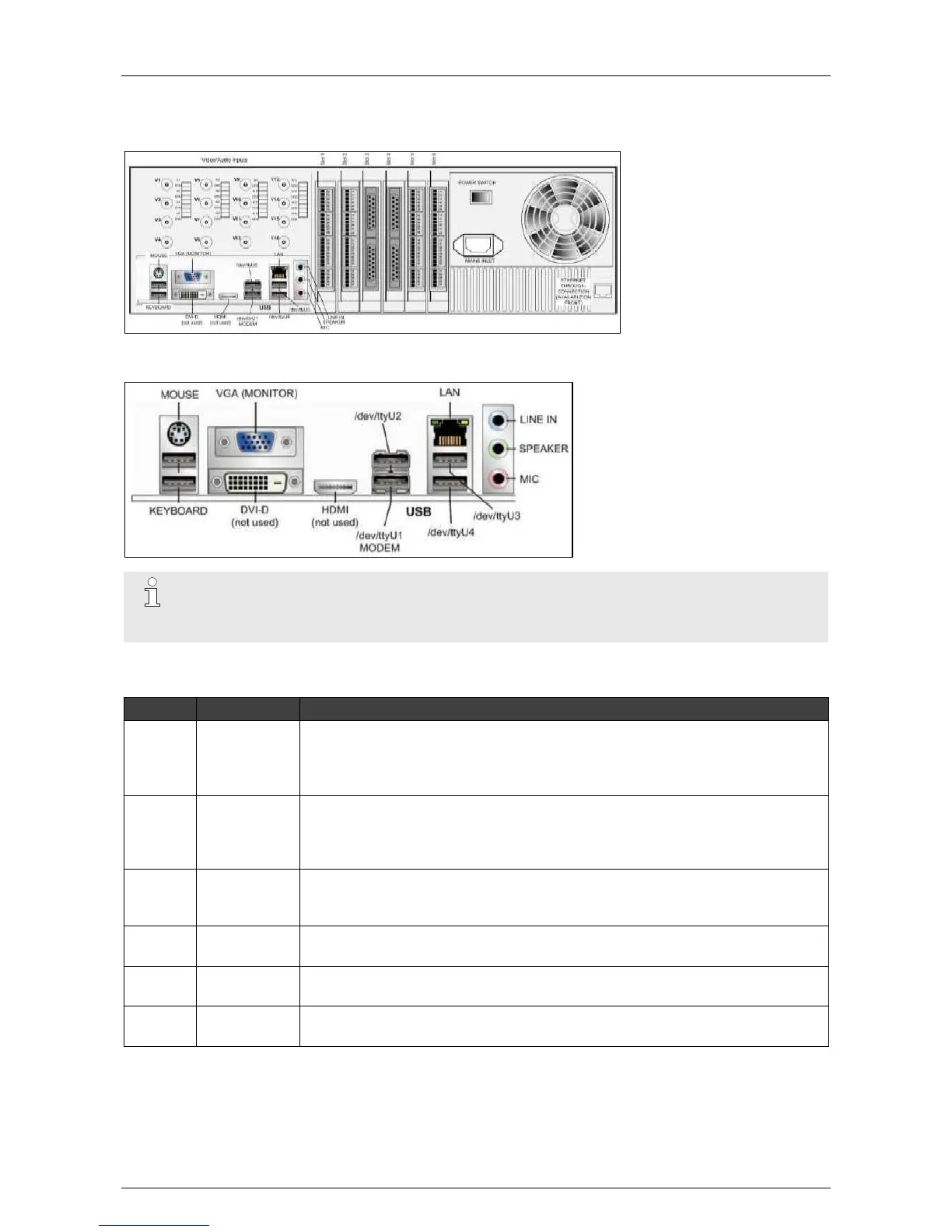

7.3.3.1 Network/Monitor/Keyboard
Note
You must restart the XOa client software after connecting devices to a USB port.
USB input 1 (/dev/ttyU1) is reserved for an external modem.
7.3.3.2 Extension Slots
Slot
Type
Accepts
1
PCI Express
Main I/O
Extension I/O
HIPI (ETH1) for 8 IP cameras
A/V with 4 or 8 channels
2
PCI Express
Main I/O
Extension I/O
HIPI (ETH1) for 8 IP cameras
A/V with 4 or 8 channels
3
PCI Express
Main I/O
Extension I/O
A/V with 4 or 8 or 16 channels
4
PCI
Main I/O
Extension I/O
5
/
Main I/O
Extension I/O
6
/
Main I/O
Extension I/O
When using A/V cards of equal A/V inputs, attribute the lowest camera numbers to the A/V card that is in or
closest to slot 1.
When combining a 4CH and an 8CH A/V card, attribute the lowest camera numbers to the 4CH A/V card.
