Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
50 21790_05

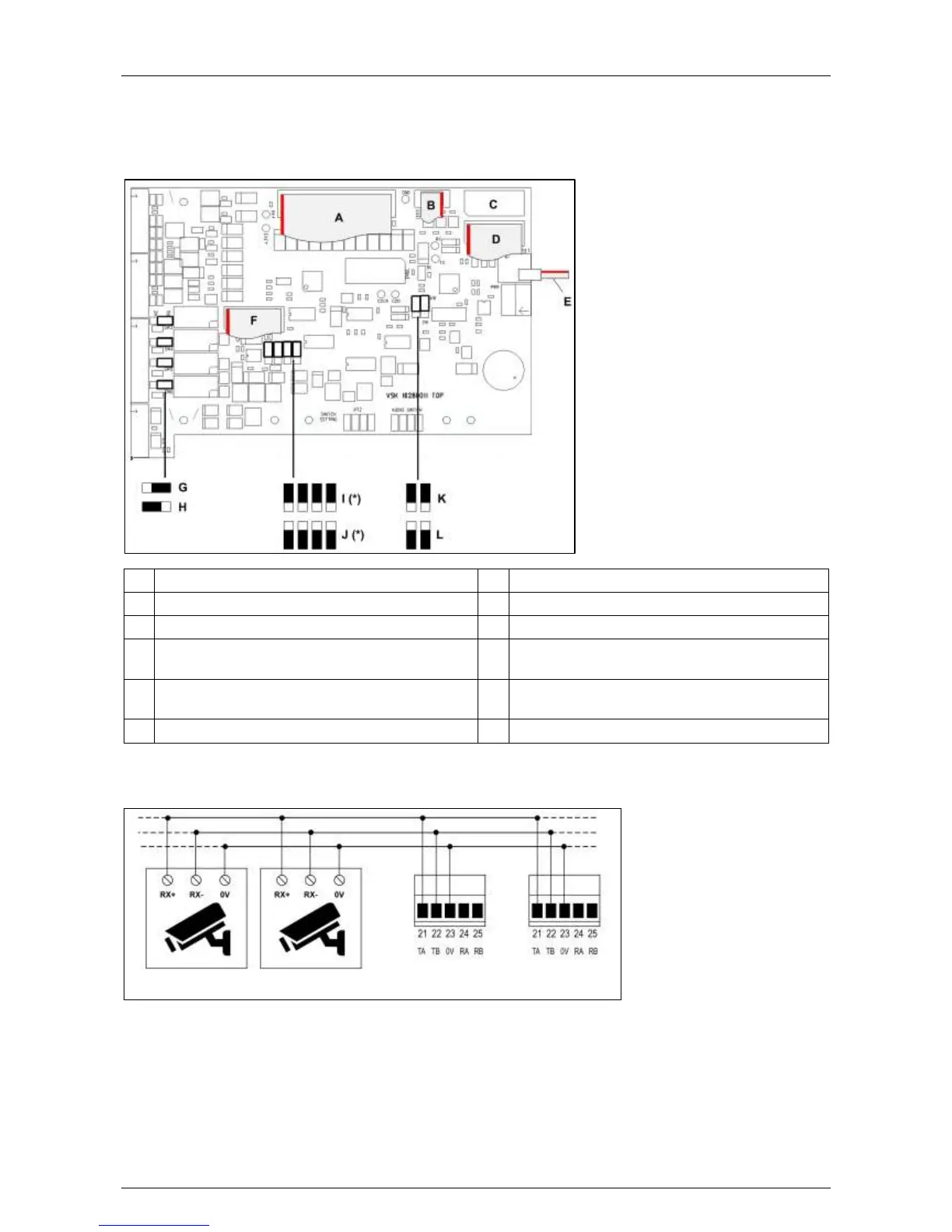

8.5 Settings on the Main I/O Card
If you are connecting PTZ cameras from the same RS-485 bus to multiple FastTrace 2 servers, set the
RS-485 PTZ jumper on the Main I/O card to the 2-wire (PTZ) position.
RS-485 cable length: max. 1200 m.
A
To Extension I/O card (#21760300)
G
Jumper setting: normally open relay contact
B
To front LEDs (#21760101)
H
Jumper setting: normally closed relay contact
C
USB port; to second Main I/O card
I
Jumper setting: PTZ output (*)
D
To nearest USB port on motherboard
(#16540260)
J
Jumper setting: VM22A output (*)
E
Reset signal from motherboard (#21760401)
K
RS-485 PTZ jumper: 4-wire setting (default
setting)
F
To AUDIO on motherboard (#16540280)
L
RS-485 PTZ jumper: 2-wire setting
(*) PTZ/VM22A:
On 1st Main I/O: addressed as /dev/ttyU6.
On 2nd Main I/O: addressed as /dev/ttyU8.
PTZ cameras
Main I/O cards
8.6 Installation
To install the Main I/O card, proceed as follows:
1. Switch off the power supply, and remove the lid from the server.
2. Remove any superfluous blind brackets.
