11.2 Adding a HIPI Card
Use these reference numbers when ordering your HIPI card with Xtralis:
Extension Board
Reference Number
HIPI card: card only
39544300
Hybrid HIPI card: card + mounting set
39544320
11.2.1 Placement on the Intel DG31PR Motherboard

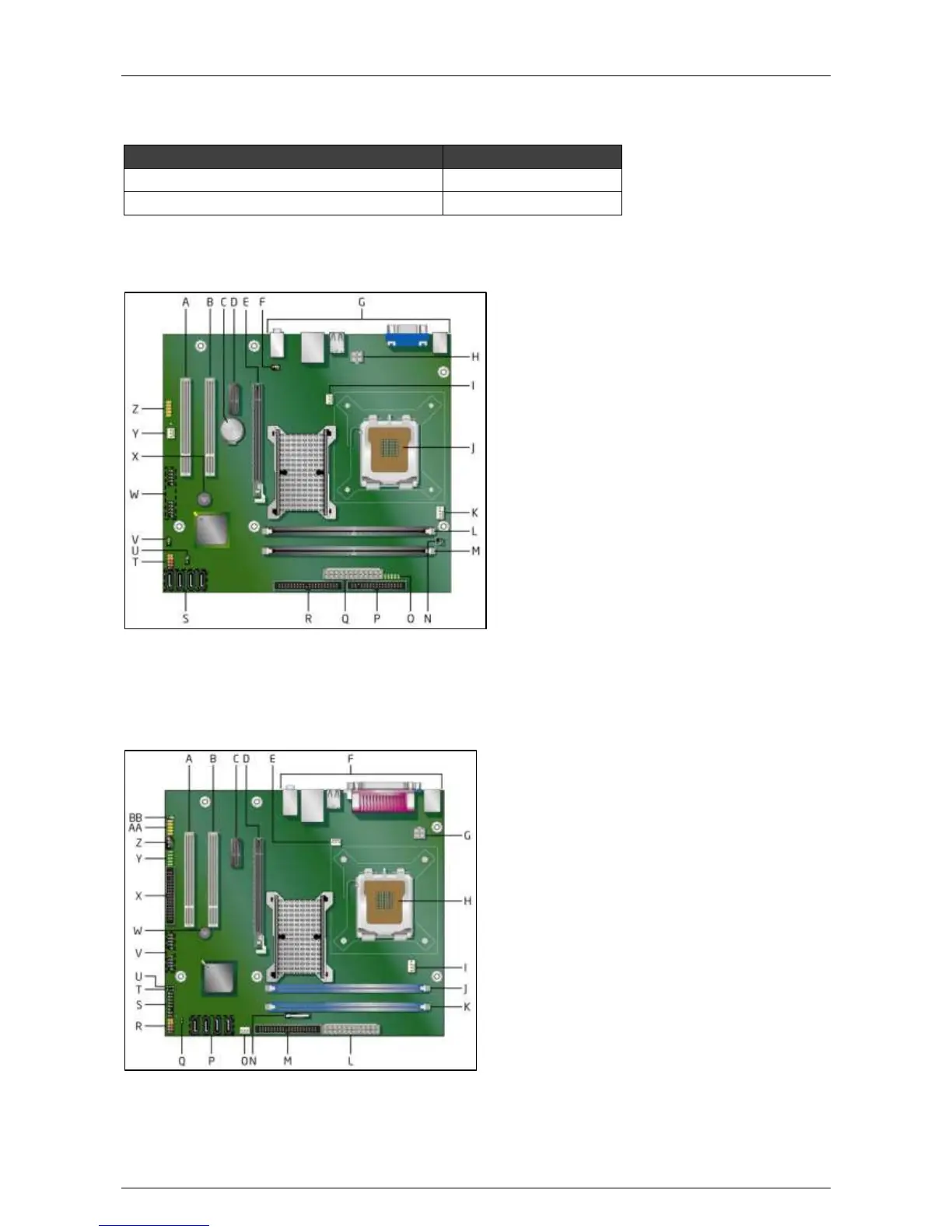

Insert the first HIPI card in PCI Express slot E. Insert the second HIPI card in PCI Express slot D.
The card in slot E is assigned as ETH1 in the system. For more information, see the manual of the
motherboard.
11.2.2 Placement on the Intel DG41TY Motherboard
Insert the first HIPI card in PCI Express slot D. Insert the second HIPI card in PCI Express slot C.
The card in slot D is assigned as ETH1 in the system. For more information, see the manual of the
motherboard.
