Xtralis ADPRO FastTrace 2 series User Manual

ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 67

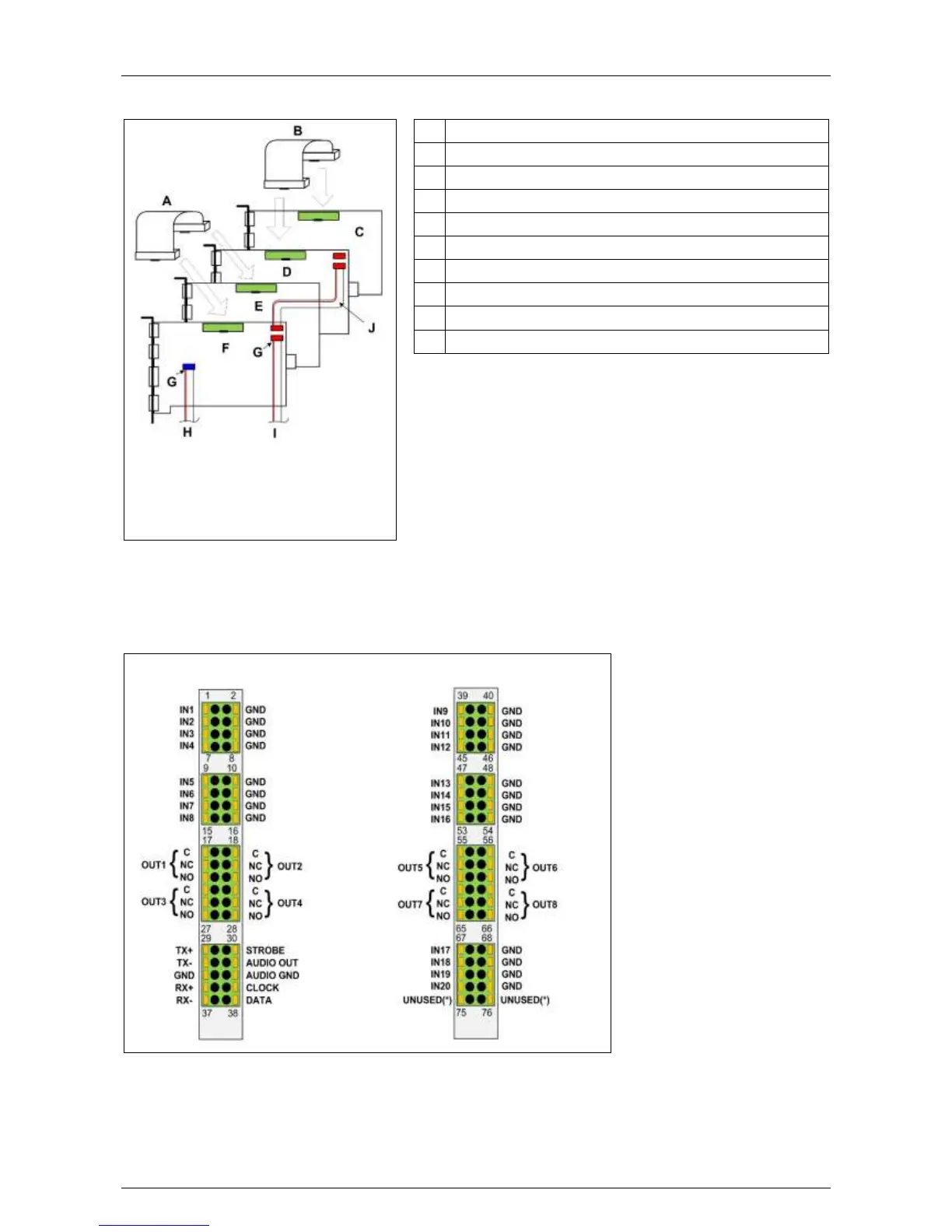

9.10 Adding a Second Set of I/O Cards
A
Flat cable (#21760300)
B
Flat cable (#21760300)
C
EIO 2
D
MIO 2
E
EIO 1
F
MIO 1
G
Red conductor = pin 1
H
To motherboard AUDIO connector
I
To motherboard USB connector (MIO 1 only)
J
Flat cable (#16540260)
To insert a second set of I/O cards, proceed as follows:
1. Insert all cards into appropriate slots (see Physical
Position on page 60).
2. Connect MIO 1 to EIO 1
using flat cable #21760300 (A).
3. Connect MIO 2 to EIO 2
using a flat cable #21760300 (B).
4. Connect MIO 1 to MIO 2
using a flat cable #16540260 (J).
9.11 Connection of Inputs/Outputs
9.11.1 Overview of Inputs and Outputs
Main I/O
Extension I/O
(*) 75 and 76 are interconnected.
Depending on the type, the Next Generation cards can be equipped with one of two different spring insertion
connectors: Dinkle (standard) or Phoenix. For both types you need a 2 mm slotted screwdriver.
