Xtralis ADPRO FastTrace 2 series User Manual

ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 65

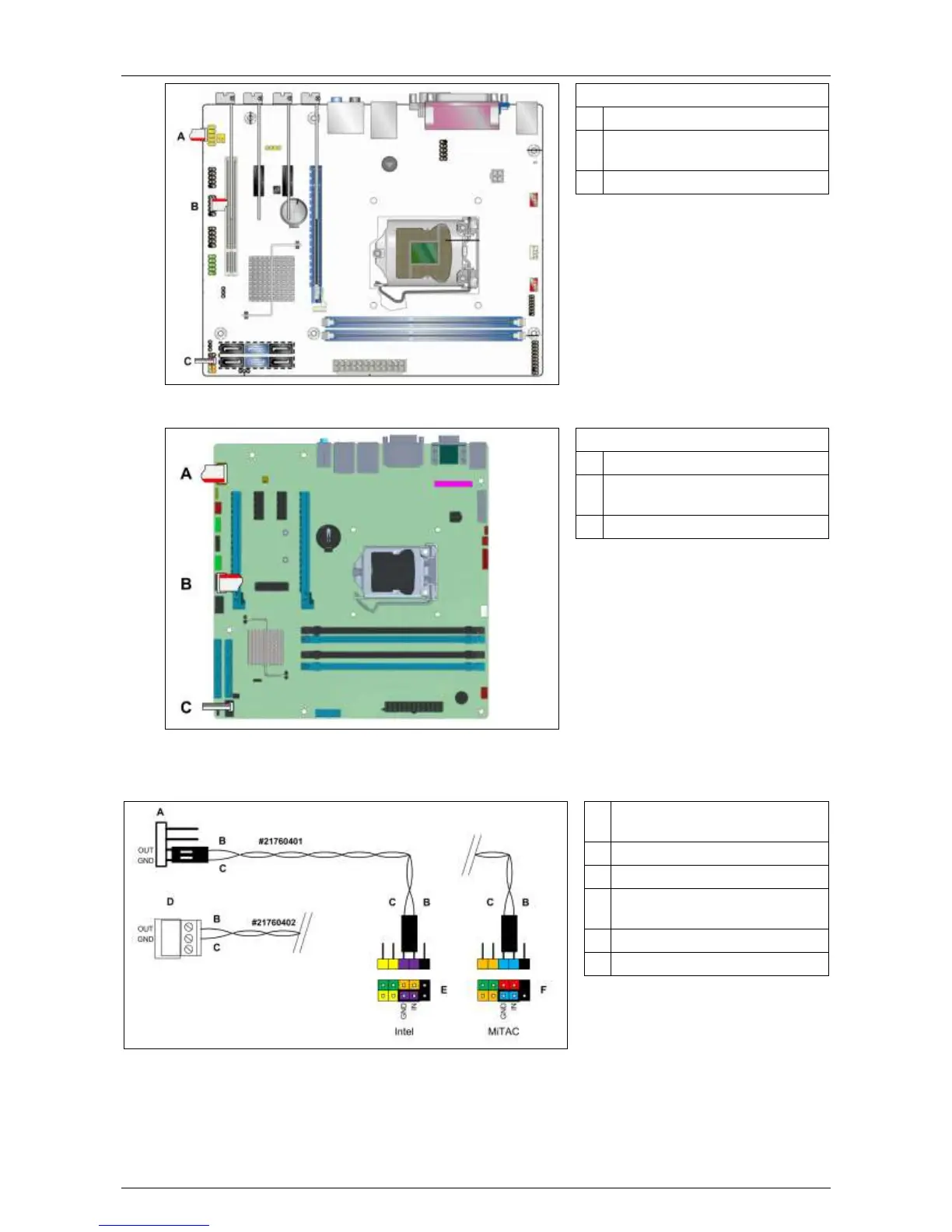

DH61BE motherboard
A
AUDIO (to MIO card)
B
USB (to MIO card), use adapter
#16500660
C
Reset (to MIO card)
PH10LU motherboard
A
AUDIO (to MIO card)
B
USB (to MIO card), use adapter
#16500665
C
Reset (to MIO card)
9.8 Reset Signal Details
A
Connector – Main I/O and
Main I/O Next Generation
B
Grey wire
C
White wire
D
Connector – Main I/O Next
Generation only
E
Intel motherboard
F
MiTAC motherboard
The Main I/O Next Generation card has two connectors for the reset cable: a pin connector (A) and a screw
terminal (D). Depending on the plug that is available on the reset cable, you can connect it to either
connector on the new Main I/O cards.
On older Main I/O cards, only the pin connector is available.
