FastTrace™ 2 Series Hardware Installation Manual
21790_05 37
Hybrid (16 Channels)
Slot
Type
Extension Card
1
PCI Express
HIPI (ETH1)
2
PCI Express
Extension I/O 2
3
PCI
Main I/O 2
4
PCI
A/V 8 channels 1
5
/
Extension I/O 1
6
/
Main I/O 1

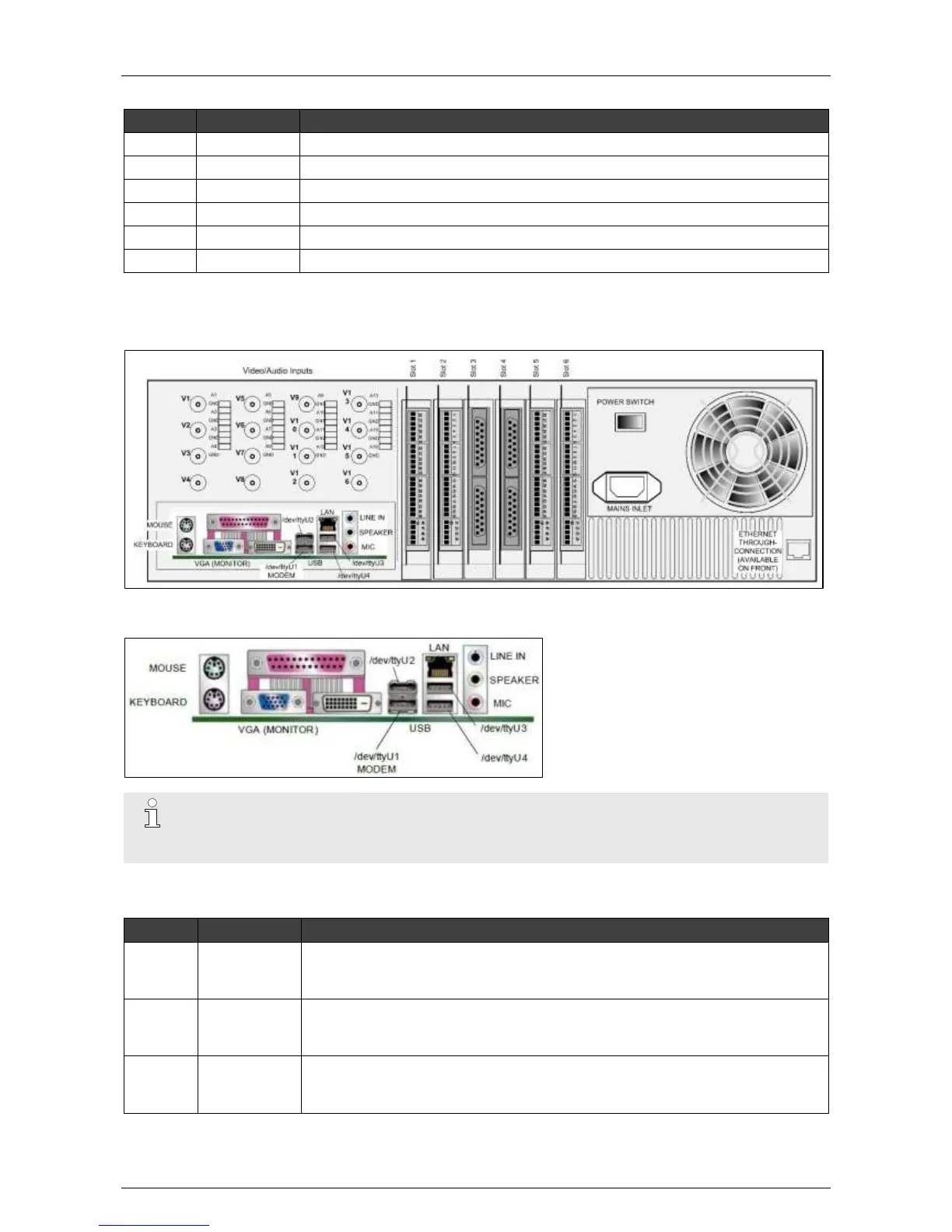

7.3.2 With Intel DG41TY Motherboard
7.3.2.1 Network/Monitor/Keyboard
Note
You must restart the XOa client software after connecting devices to a USB port.
USB input 1 (/dev/ttyU1) is reserved for an external modem.
7.3.2.2 Extension Slots
Slot
Type
Accepts
1
PCI Express
Main I/O
Extension I/O
HIPI (ETH1) for 8 IP cameras
2
PCI Express
Main I/O
Extension I/O
HIPI (ETH1) for 8 IP cameras
3
PCI
Main I/O
Extension I/O
A/V with 4 or 8 channels (lowest camera numbers: CAM 1 > 4/8)
