ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 69
9.13 Input Circuits

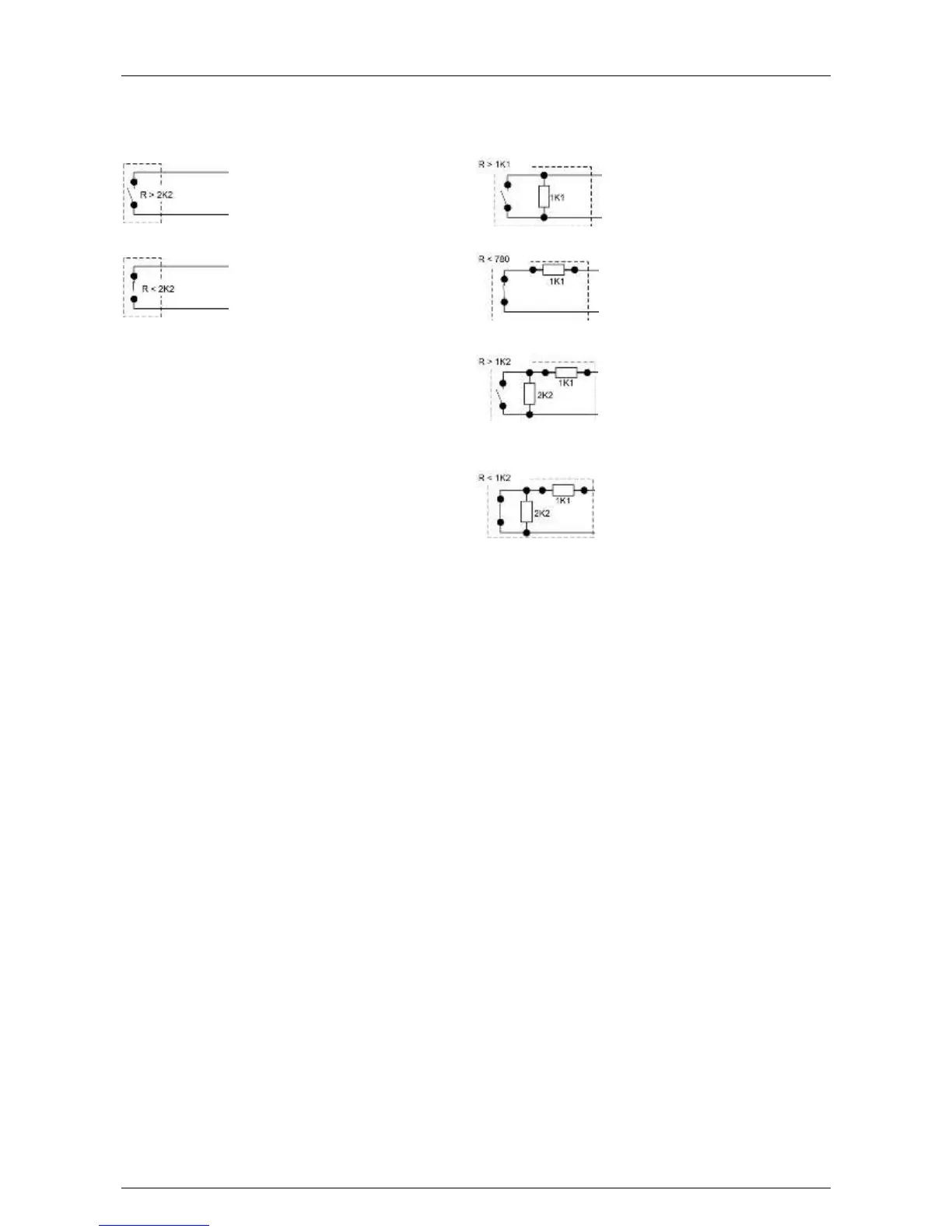

Use the ADPRO XOa client to configure the inputs as NEOL, SEOL, or DEOL.
Normally open NEOL
Short circuit = alarm
Open circuit = idle
Normally open SEOL
Short circuit = alarm
1K1 = idle
Open circuit = tamper
Normally closed NEOL
Short circuit = idle
Open circuit = alarm
Normally closed SEOL
Short circuit = tamper
1K1 = idle
Open circuit = alarm
Normally open DEOL
Short circuit = tamper
1K1 = alarm
3K3 = idle
Open circuit = tamper
Normally closed DEOL
Short circuit = tamper
1K1 = idle
3K3 = alarm
Open circuit = tamper
(Default setting)
