Hardware Installation Manual ADPRO

FastTrace™ 2 Series

56 21790_05

8.11 Configuring the Internal I/O Cards

The FastTrace 2 server automatically detects all connected MIO and EIO cards. To configure the inputs and

outputs, see the XOa Client Software User Manual.

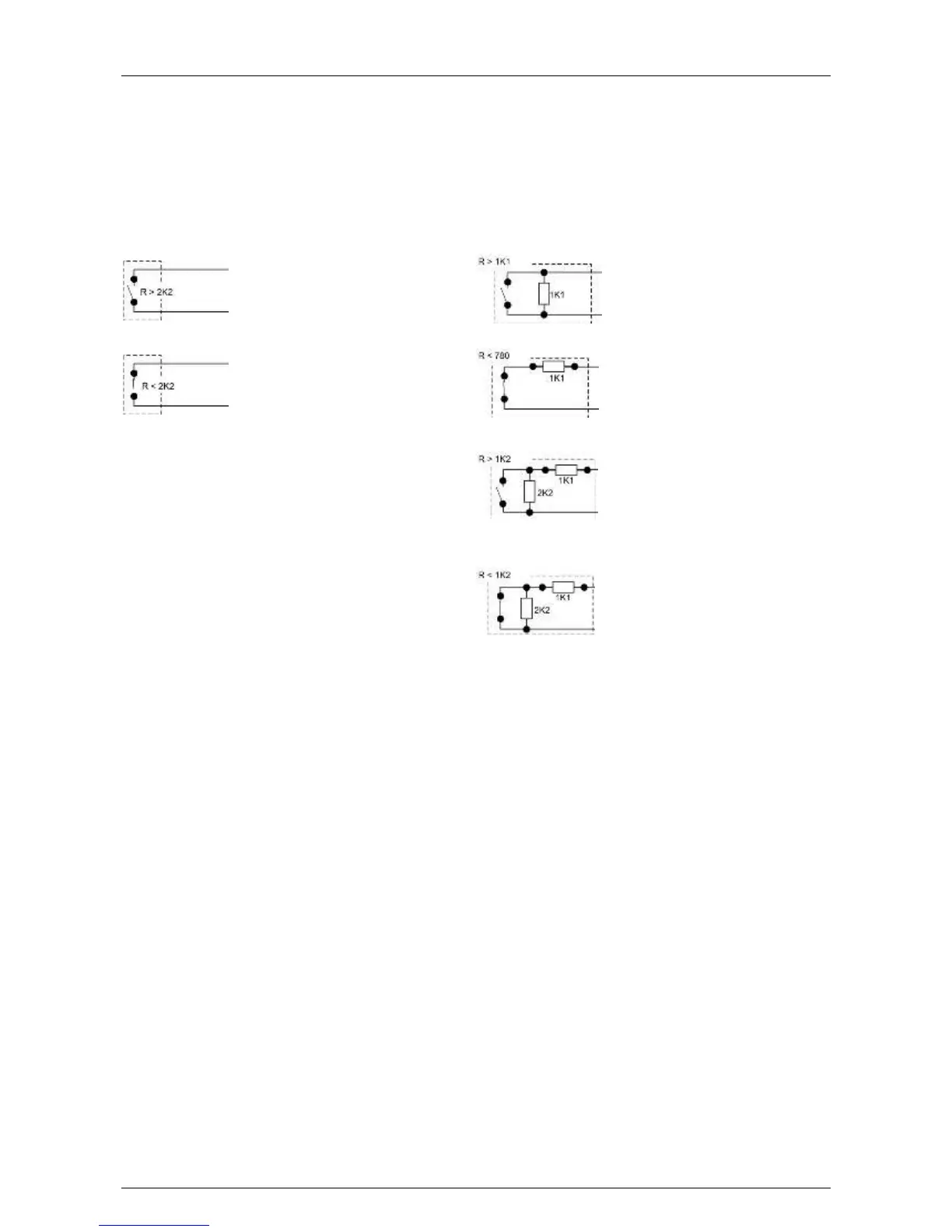

8.12 Input Circuits

Use the ADPRO XOa client to configure the inputs as NEOL, SEOL, or DEOL.

Normally open – NEOL

Short circuit = alarm

Open circuit = idle

Normally open – SEOL

Short circuit = alarm

1K1 = idle

Open circuit = tamper

Normally closed – NEOL

Short circuit = idle

Open circuit = alarm

Normally closed – SEOL

Short circuit = tamper

1K1 = idle

Open circuit = alarm

Normally open – DEOL

Short circuit = tamper

1K1 = alarm

3K3 = idle

Open circuit = tamper

Normally closed – DEOL

Short circuit = tamper

1K1 = idle

3K3 = alarm

Open circuit = tamper

(Default setting)
