With the FastTrace 2E Series, Xtralis introduced the Next Generation I/O cards. If you are using
Next Generation cards with your FastTrace 2E unit, see Main and Extension I/O Cards Next
Generation on page 57.

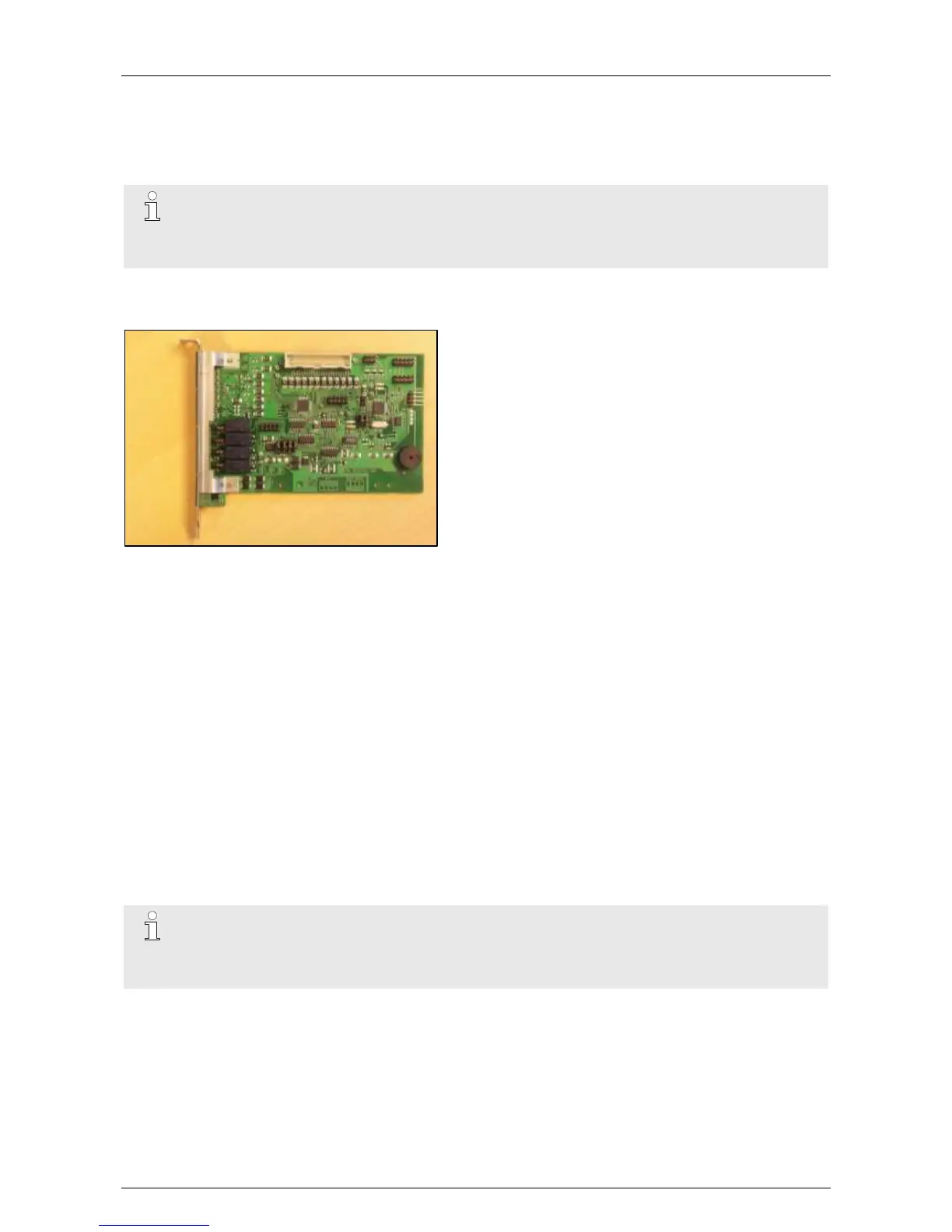

The Main I/O (MIO) and Extension I/O (EIO) cards are internal I/O cards, to be fitted inside the ADPRO
FastTrace 2 system. They are also called OTB (on-the-board) cards.
These I/O cards offer:
8 tamper-protected inputs and 4 relay outputs (rated 14 VDC @ 1 A) on the Main I/O card
12 tamper-protected inputs and 4 relay outputs on the Extension I/O card
driver for PTZ cameras (half/full duplex RS-485) or audio module/VM22A audio switcher (selected by
jumpers on the card)
driver for front LED indicators on FastTrace 2 model
auto-detected cards on FastTrace 2 system
8.2 Possible Configurations
You can configure maximum 2 sets of I/O cards on the FastTrace 2:
Main I/O only
Main I/O + Extension I/O
2 x Main I/O + Extension I/O
2 x Main I/O + 2 x Extension I/O
Note
With an ENTRY system license you can install only 1 Main I/O card. Multiple Main I/O cards are
not supported. Also, an ENTRY system does not support Extension I/O cards. This is for
instance the case with the ADPRO FastTrace 2 Lite.
