ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 49
8.3 Ordering Information
Use these reference numbers to place your order with Xtralis:
Item
Reference Number
Main I/O card
39544070
Main I/O card plus mounting set
39544000
Extension I/O card
39544080
Extension I/O card plus mounting set
39544010

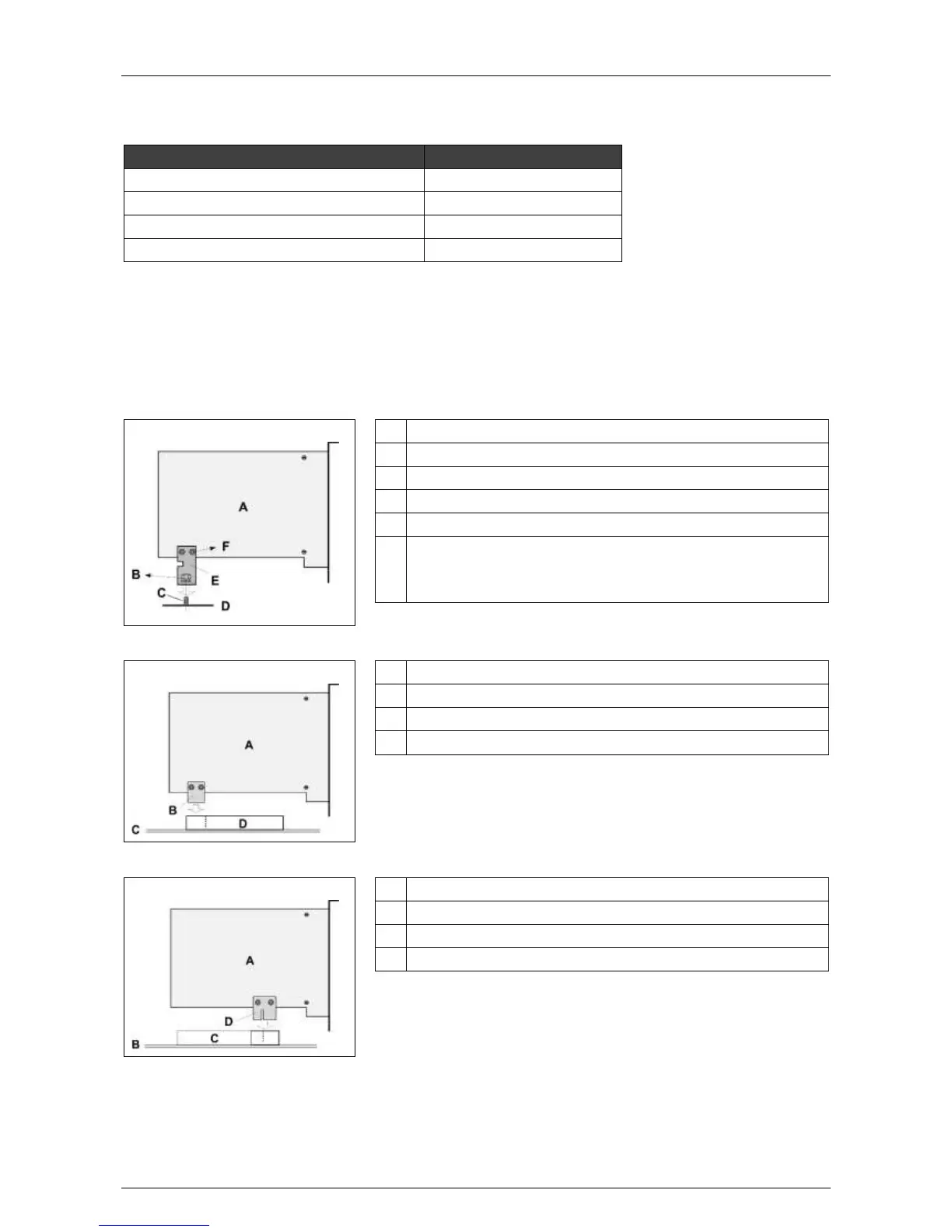

8.4 Physical Position
Insert the first set of I/O cards in the two furthermost slots (= nearest to the power supply). Use the L-shaped
brackets to fix the cards to the chassis. Insert the Main I/O card in the furthermost slot (= slot 6).
Insert the second set in the PCI or PCI Express slots on the motherboard using the included PCI or PCI
Express Inserters. Depending on the type of motherboard, you need either a PCI or PCI Express Inserter.
Mounting on chassis:
A
I/O card, bottom side
B
Locknut (#17439010)
C
M3 stud
D
Chassis
E
L-shaped metal bracket (#17291141) on top side
F
Screw M2.5 (#17420060)
Nut M2.5 (#17429000)
Dented washer M2.5 (#17720090)
PCI connector:
A
I/O card, bottom side
B
PCI inserter (#17291100)
C
Motherboard
D
PCI connector
PCI Express connector:
A
I/O card, bottom side
B
Motherboard
C
PCI Express connector
D
PCI Express inserter (#17291110)
