Hybrid (up to 32 Channels* with 1 Ethernet Card)
Slot
Type
Extension Card
1
PCI Express
A/V 4 or A/V 8 or A/V 16 channels
2
PCI Express
Ethernet Card
3
PCI Express
Extension I/O 2
4
PCI
Main I/O 2
5
/
Extension I/O 1
6
/
Main I/O 1
(*) You can purchase IP camera licenses individually or in sets of 4. Depending on the license(s) you have
purchased, you will have 1-32 video channels available. The full 32 channels are only available on
FastTrace 2E models with XOa firmware installed, an Intel DH61BE or MiTAC PH10LU motherboard, and
4 GB RAM or more. On any other model, maximum 16 IP channels are available.
Note
You can use the Ethernet card only on FastTrace 2E units.
You cannot use HIPI cards on FastTrace 2E units.

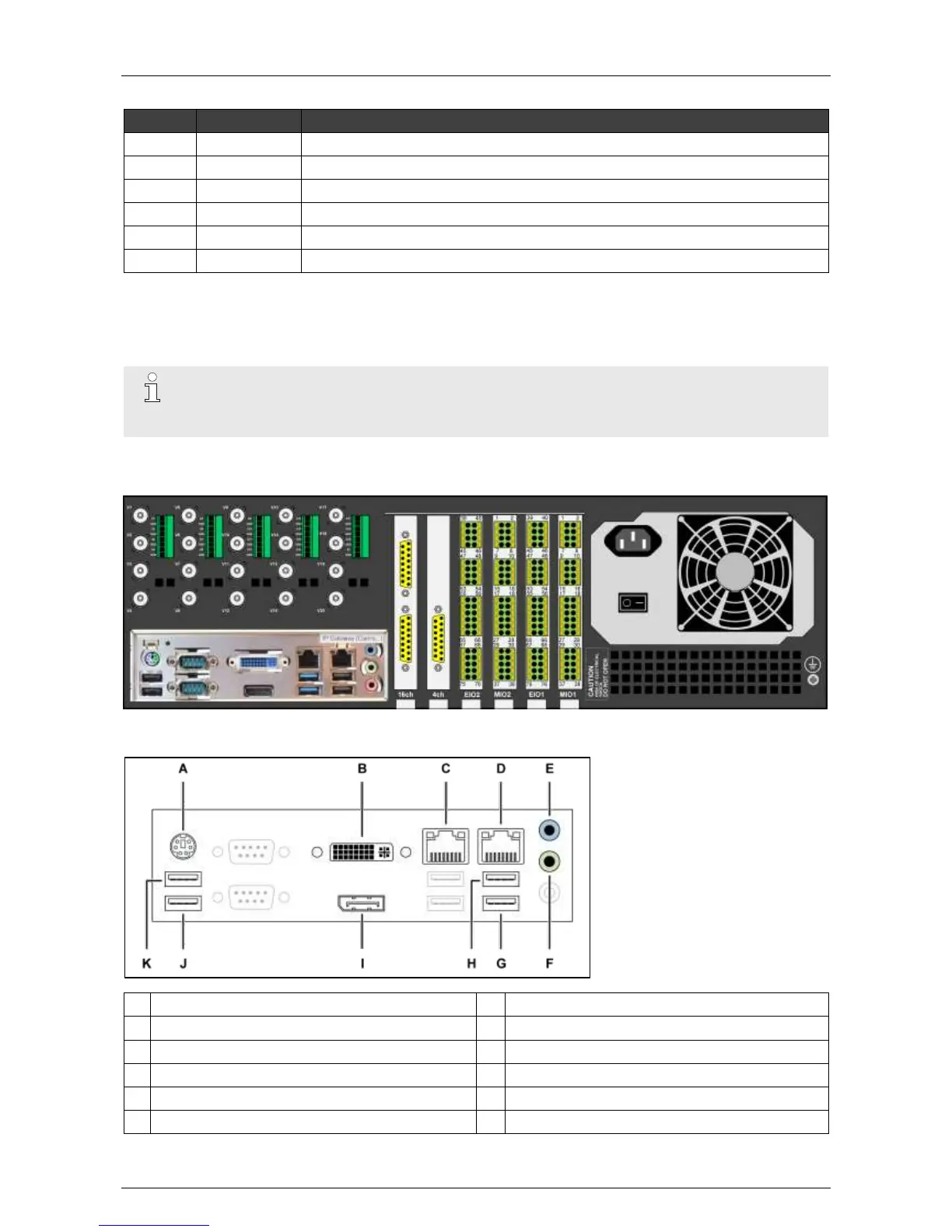

7.3.5 With MiTAC PH10LU Motherboard
7.3.5.1 Network/Monitor/Modem
A
PS/2 (keyboard)
G
dev/ttyU4 (USB)
B
DVI-I (monitor)
H
dev/ttyU3 (USB)
C
ETH0: network for FastTrace 2 device
I
DisplayPort (monitor)
D
ETH1: IP gateway, network for IP cameras…
J
dev/ttyU1 (USB, modem)
E
Audio line in
K
dev/ttyU2 (USB)
F
Audio line out
