Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
80 21790_05
14 PTZ Cameras
You can connect PTZ (Pan-Tilt-Zoom) cameras in one of the following ways for PTZ control:
 on the Main I/O card
 via a USB converter
 via the coaxial interface (DTC card)
Each method is described in detail below.
14.1 Serial PTZ on MIO Card

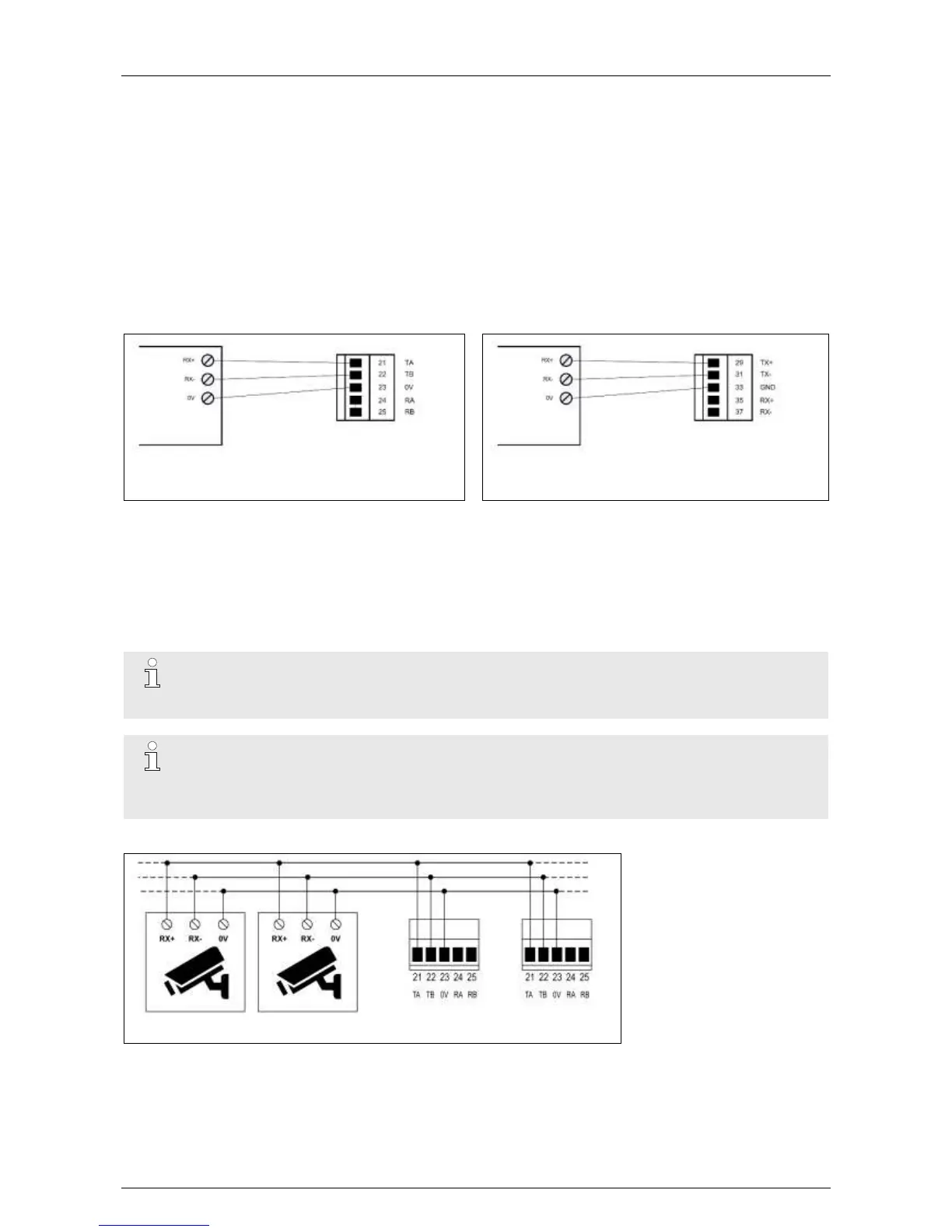

Connect the PTZ camera to the MIO card as shown below:
PTZ camera
Main I/O card
PTZ camera
Main I/O card
Next Generation
When using 5 wires to connect your PTZ camera to the Main I/O card, you also have a TX+ and TX–
terminal on the PTZ camera:
 Connect the TX+ terminal to the RA terminal (number 24) of the Main I/O card, or the RX+ terminal
(number 35) on the MIO Next Generation card.
 Connect the TX– terminal to the RB terminal (number 25) on the Main I/O card, or the RX– terminal
(number 37) on the MIO Next Generation card.
Note
It is recommended to terminate the last (= the longest distance from the FastTrace 2 unit) PTZ
camera with a 120 ohm resistor. RS-485 cable length: max. 1200 m.
Note
If you are connecting PTZ cameras from the same RS-485 bus to multiple FastTrace 2 servers,
set the RS-485 PTZ jumper on the Main I/O card to the 2-wire (PTZ) position.
RS-485 cable length: max. 1200 m.
PTZ cameras
Main I/O cards
