Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
60 21790_05

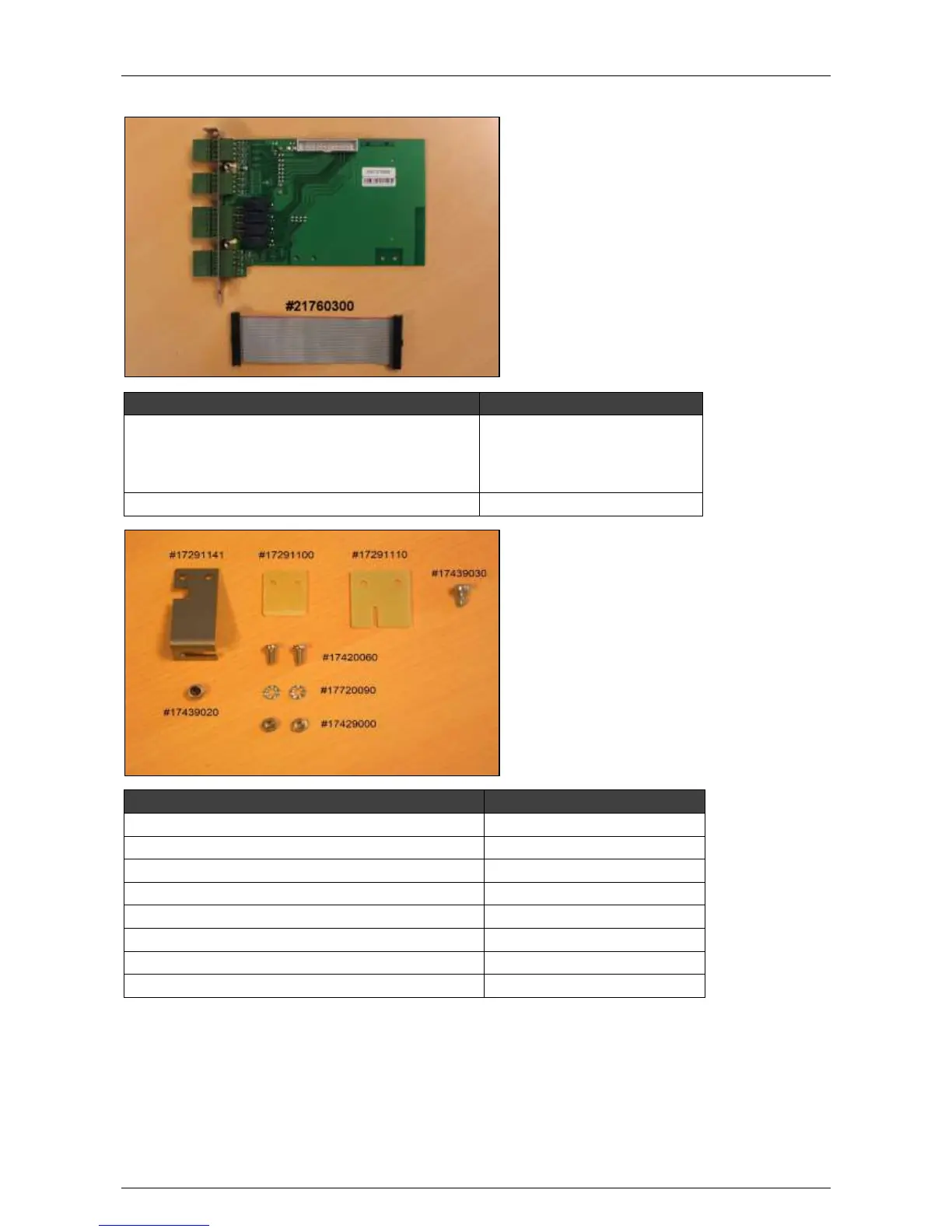

9.4.2 Extension I/O Card with Mounting Set (#39544010)
Part
Amount + Reference Number
Extension I/O card
(incl. mounting bracket,
M3 screws, and
hex spacers)
1 x #39544080
(1 x #17291161)
(2 x #17439030)
(2 x #17210070)
Flat cable (26 pins)
1 x #21760300
Part
Amount + Reference Number
L-profile
1 x #17291141
Locknut
1 x #17439020
Screw M2.5
2 x #17420060
Nut M2.5
2 x #17429000
Dented washer M2.5
2 x #17720090
Self-locking screw M3
1 x #17439030
PCI Inserter
1 x #17291100
PCI Express Inserter
1 x #17291110
9.5 Physical Position
Insert the first set of I/O cards in the two furthermost slots (= nearest to the power supply). Use the L-shaped
brackets to fix the cards to the chassis. Insert the Main I/O card in the furthermost slot (= slot 6).
Insert the second set in the PCI or PCI Express slots on the motherboard using the included PCI or PCI
Express Inserters. Depending on the type of motherboard, you need either a PCI or PCI Express Inserter.
