FastTrace™ 2 Series Hardware Installation Manual
21790_05 41
IP Cameras (8 or 16 Channels)
Slot
Type
Extension Card
1
PCI Express
HIPI (ETH1)
2
PCI Express
HIPI (ETH2)
3
PCI Express
Extension I/O 2
4
PCI
Main I/O 2
5
/
Extension I/O 1
6
/
Main I/O 1
Hybrid (12 Channels)
Slot
Type
Extension Card
1
PCI Express
HIPI (ETH1)
2
PCI Express
Extension I/O 2
3
PCI Express
A/V 4 channels 1
4
PCI
Main I/O 2
5
/
Extension I/O 1
6
/
Main I/O 1
Hybrid (16 Channels)
Slot
Type
Extension Card
1
PCI Express
HIPI (ETH1)
2
PCI Express
Extension I/O 2
3
PCI Express
A/V 8 channels 1
4
PCI
Main I/O 2
5
/
Extension I/O 1
6
/
Main I/O 1

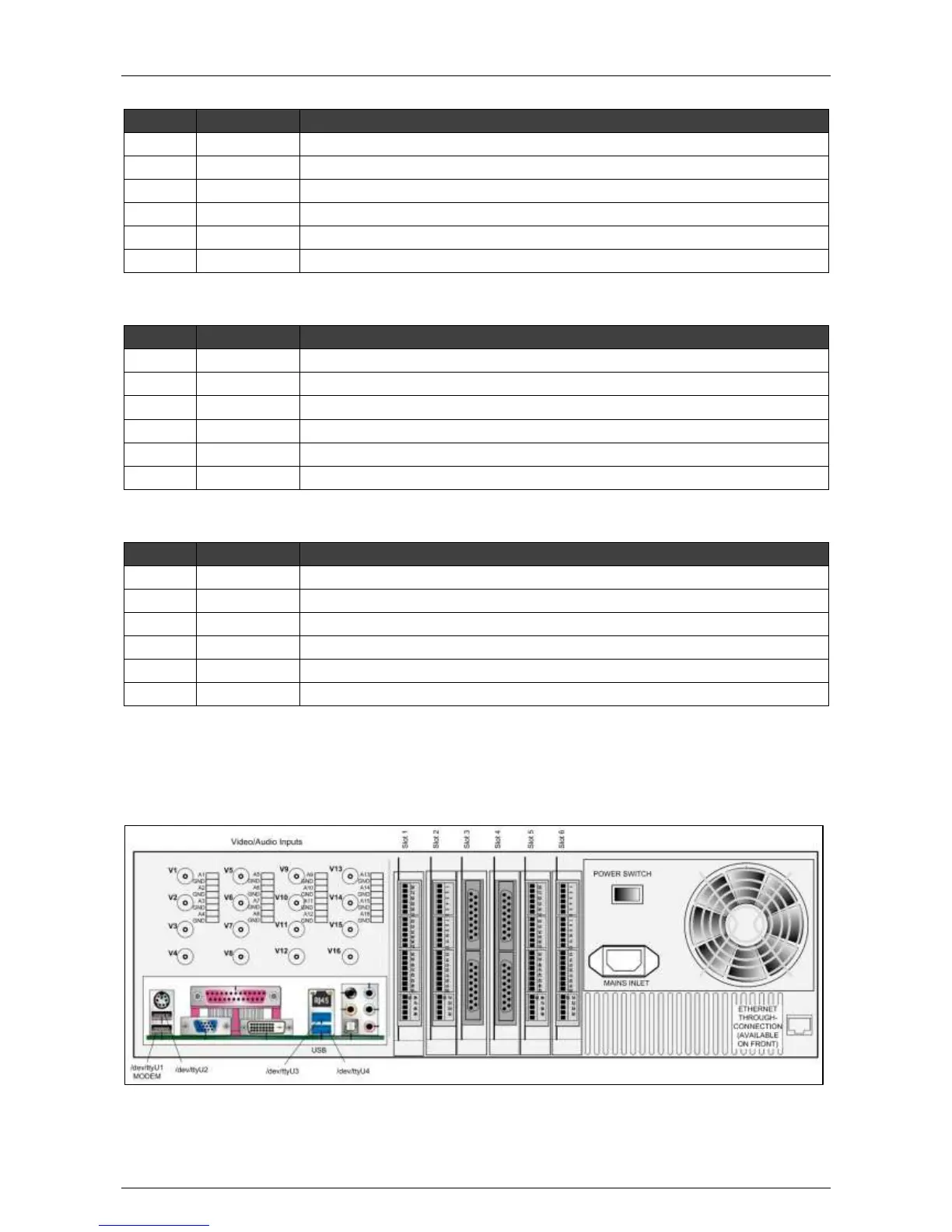

A sticker below each slot, visible from the back of the appliance, indicates which card has been installed at
that position.
7.3.4 With Intel DH61BE Motherboard
