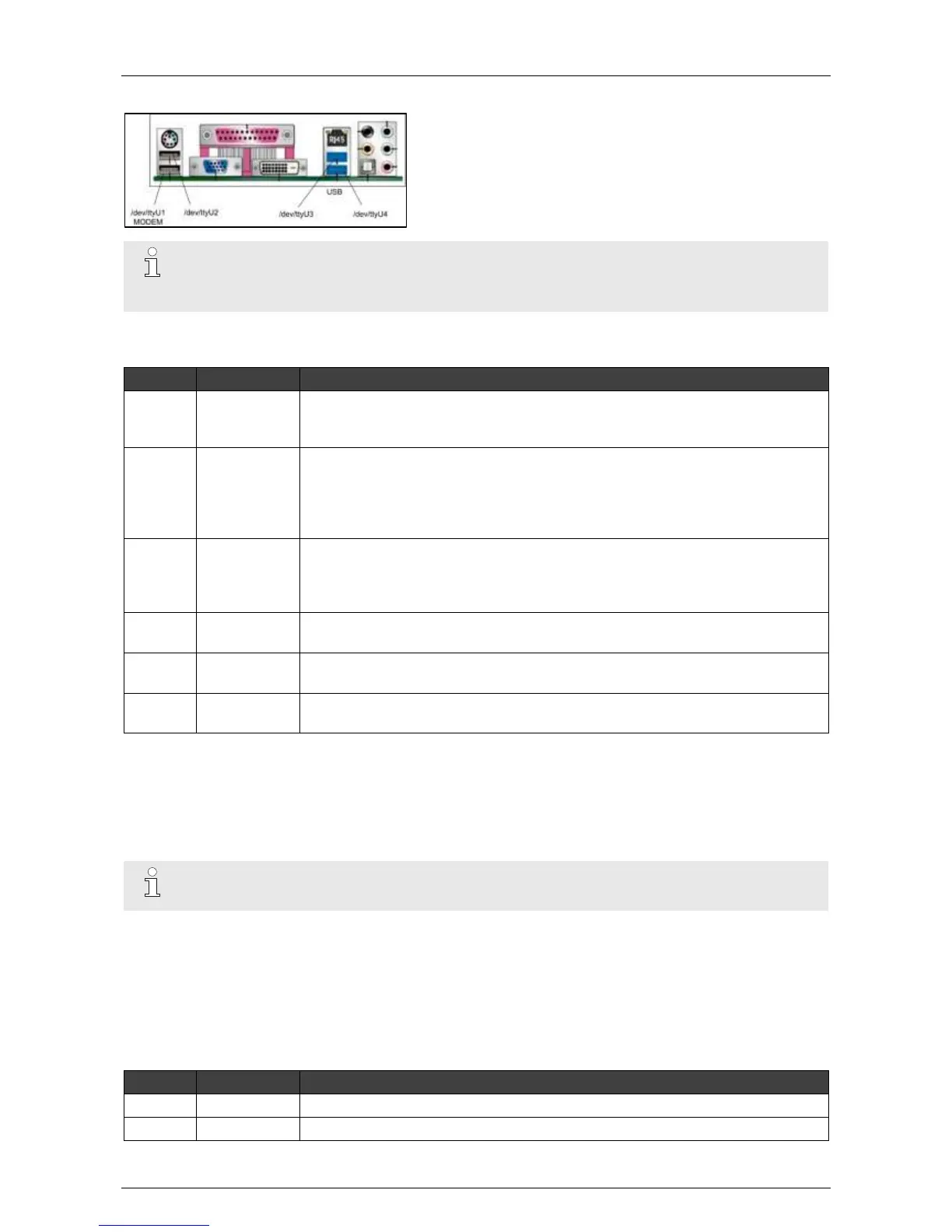

7.3.4.1 Network/Monitor/Keyboard
Note
You must restart the XOa client software after connecting devices to a USB port.
USB input 1 (/dev/ttyU1) is reserved for an external modem.
7.3.4.2 Extension Slots
Slot
Type
Accepts
1
PCI Express
Main I/O
Extension I/O
A/V with 4 or 8 or 16 channels
2
PCI Express
Main I/O
Extension I/O
HIPI (ETH1) for 8 IP cameras
Ethernet Card
A/V with 4 or 8 channels
3
PCI Express
Main I/O
Extension I/O
HIPI (ETH2) for 8 IP cameras
A/V with 4 or 8 channels
4
PCI
Main I/O
Extension I/O
5
/
Main I/O
Extension I/O
6
/
Main I/O
Extension I/O
When using A/V cards of equal A/V inputs, attribute the lowest camera numbers to the A/V card that is in or
closest to slot 1.
When combining a 4CH and an 8CH A/V card, attribute the lowest camera numbers to the 4CH A/V card.
Example: camera numbers 1–4 allocated to the 4CH A/V card, and numbers 5–12 allocated to the 8CH A/V
card.
Note
Only the A/V cards type DS42xx are allowed on the Intel DH61BE motherboard.
7.3.4.3 The Xtralis Configurations for FastTrace 2 Units
From December 2013 onwards the FastTrace 2 will only be available as an analogue-only unit. Existing
FastTrace 2 IP and/or Hybrid units can no longer be expanded.
Analogue Cameras (4 Channels)
Slot
Type
Extension Card
1
PCI Express
A/V 4 channels 1 (DS42xx)
2
PCI Express
