ADPRO

FastTrace™ 2 Series Hardware Installation Manual

21790_05 73

10.5 Video Input Termination (75 Ohm/High Impedance)

This is only available on the latest version of the 8 or 16 channel video cards.

Jumpers JP1–JP8/16 determine whether the corresponding video input is terminated with 75 ohm (if jumper

is placed) or not (if jumper is removed).

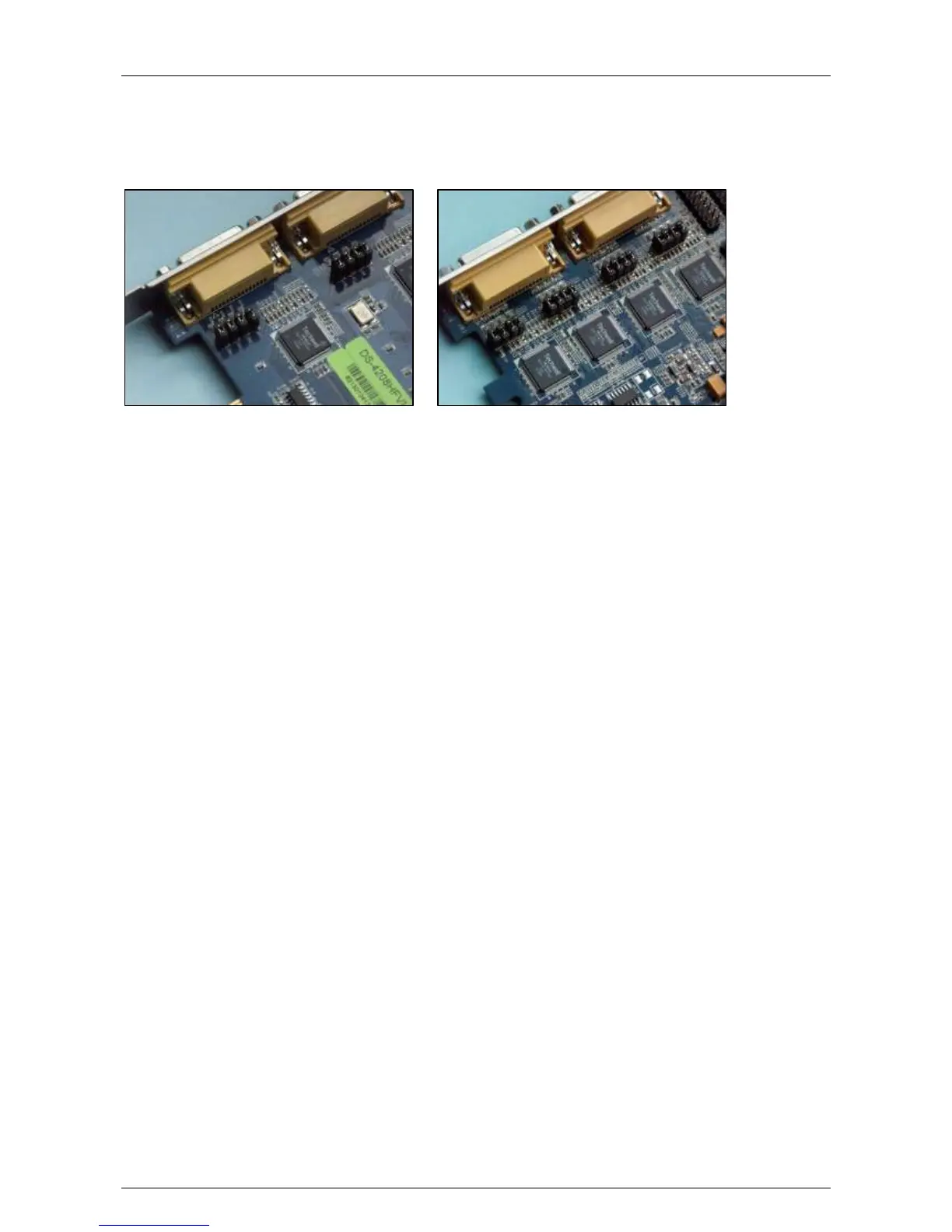

8-channel A/V card

16-channel A/V card
