Xtralis ADPRO FastTrace 2 series User Manual

ADPRO
®
FastTrace™ 2 Series Hardware Installation Manual
21790_05 51

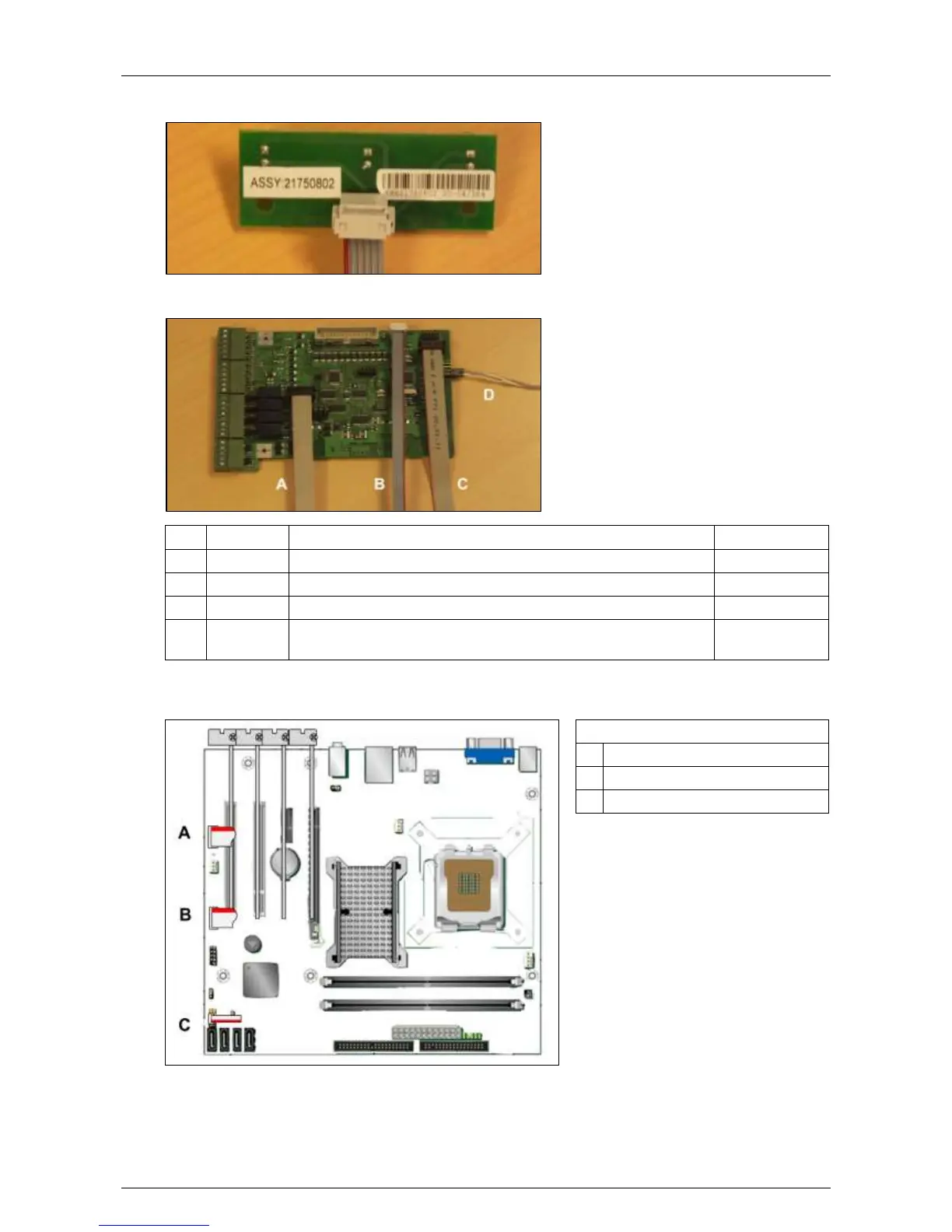

3. Remove the two cables that connect the LED board on the front to the motherboard. The LEDs will be
powered from the Main I/O card (of the 1
st
set).
4. Before inserting the Main I/O card into the motherboard, connect all necessary cables to the card. See
the table below for an overview of cable connections.
From
To
Cable
A
MIO 1
Motherboard audio
#16540280
B
MIO 1
Front LED board
#21760101
C
MIO 1
Motherboard USB
#16540260
D
MIO 1
Motherboard reset. For more information, see Reset Signal
Details on page 53.
#21760401
5. Insert the I/O card in the appropriate slot. For more information, see Physical Position on page 49.
6. Connect the cables from the I/O card to the motherboard as indicated in the illustrations below.
DG31PR motherboard
A
AUDIO (to MIO card)
B
USB (to MIO card)
C
Reset (to MIO card)
