B95W
Operation
244 / 306
7
07_Bedienung_en.fm - V1.0 - 1.8.17
26
Actuating auxiliary control circuit 1
Operating lever
for auxiliary
control circuit 1
(1)
Depending on the attached additional tool the pedal functions for the auxiliary
control circuit (1) will vary:
• Actuate hammer and grab
• Open and close grab
• Rotate grab
Possible additional tools are:
• Hydraulic hammers
•Grabs
• Clamshell grabs
• Milling attachment
• Tilt bucket
• Ditch cleaning bucket

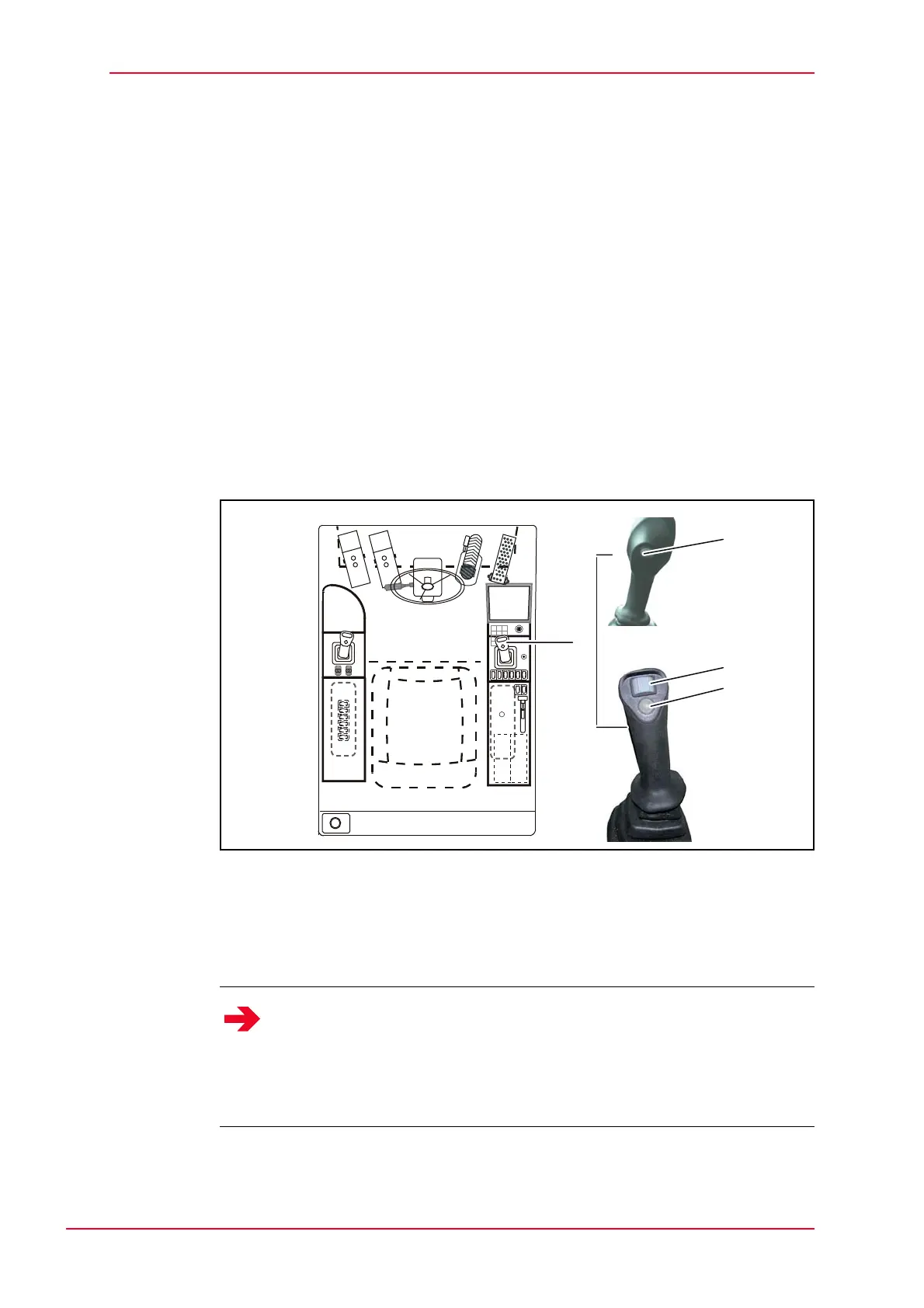

Fig. 7-20 Using auxiliary control circuit 1
1 Joystick - excavator equipment right
2 Continuous operation for additional control circuit (save key)
3 Actuate dial for auxiliary control circuit 1
4 Changeover articulation/articulated boom
Notice
The slide control integrated into the right joystick facilitates continuously
variable control of the auxiliary hydraulic circuit for attached devices.
The quantity of hydraulic oil required for the proportionally controllable
auxiliary circuit can be set via the display and adapted to suit the device
fitted, e.g. hydraulic breaker.
J See chapter 5.3.4 “Display”.
2
3
4
1
