Digital Operator
Display
Name
Minor Fault
Output
(H2-oo =
10)
Page
<2>
THo Thermistor Disconnect YES 211
TrPC IGBT Maintenance Time (90%) YES 211
UL3 Undertorque 1 YES 211
UL4 Undertorque 2 YES 211
Digital Operator
Display
Name
Minor Fault
Output
(H2-oo =
10)
Page
UL5
Mechanical Weakening
Detection 2
YES 200
Uv Undervoltage YES 211
voF Output Voltage Detection Fault YES 212
<1>
Output when H2-oo = 2F.
<2>
Detected in models CIMR-Ao4A0930, 4A1200 and A1000 HHP.
<3> Terminals H1, H2, DM+, and DM- on 600 V class models are designed to the functionality, but are not certified to IEC/EN 61800-5-1, ISO/EN
13849 Cat. 3, IEC/EN 61508 SIL2, Insulation coordination: class 1.
n
Operation Errors

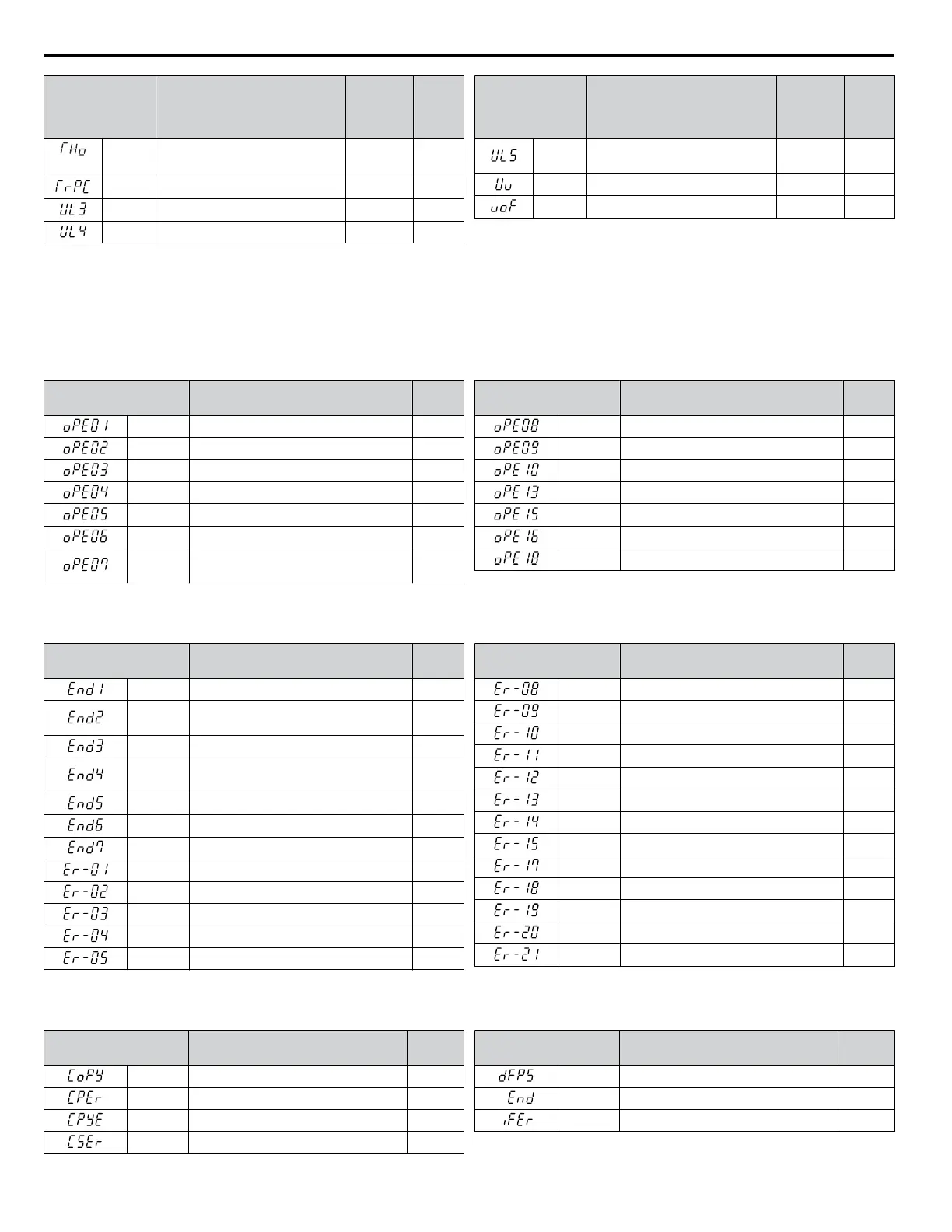

Table 2.7 Operation Error Displays
Digital Operator
Display
Name Page
oPE01 Drive Unit Setting Error 213
oPE02 Parameter Setting Range Error 213
oPE03 Multi-Function Input Setting Error 213
oPE04 Terminal Board Mismatch Error 214
oPE05 Run Command Selection Error 214
oPE06 Control Method Selection Error 214
oPE07
Multi-Function Analog Input Selection
Error
214
Digital Operator
Display
Name Page
oPE08 Parameter Selection Error 215
oPE09 PID Control Selection Error 215
oPE10 V/f Data Setting Error 215
oPE13 Pulse Train Monitor Selection Error 216
oPE15 Torque Control Setting Error 216
oPE16 Energy Saving Constants Error 216
oPE18 Online Tuning Parameter Setting Error 216
n
Auto-Tuning Errors
Table 2.8 Auto-Tuning Error Displays
Digital Operator
Display
Name Page
End1 Excessive V/f Setting 217
End2
Motor Iron Core Saturation Coefficient
Error
217
End3 Rated Current Setting Alarm 217
End4
Adjusted Slip Value Fell Below Lower
Limit
217
End5 Resistance Between Lines Error 217
End6 Leakage Inductance Alarm 217
End7 No-Load Current Alarm 218
Er-01 Motor Data Error 218
Er-02 Alarm 218
Er-03 STOP Button Input 218
Er-04 Line-to-Line Resistance Error 218
Er-05 No-Load Current Error 218
Digital Operator
Display
Name Page
Er-08 Rated Slip Error 219
Er-09 Acceleration Error 219
Er-10 Motor Direction Error 219
Er-11 Motor Speed Error 219
Er-12 Current Detection Error 219
Er-13 Leakage Inductance Error 220
Er-14 Motor Speed Error 2 220
Er-15 Torque Saturation Error 220
Er-17 Reverse Prohibited Error 220
Er-18 Induction Voltage Error 220
Er-19 PM Inductance Error 220
Er-20 Stator Resistance Error 220
Er-21 Z Pulse Correction Error 221
n
Errors and Displays When Using the Copy Function
Table 2.9 Copy Errors
Digital Operator
Display
Name Page
CoPy Writing Parameter Settings (flashing) 222
CPEr Control Mode Mismatch 222
CPyE Error Writing Data 222
CSEr Copy Unit Error 222
Digital Operator
Display
Name Page
dFPS Drive Model Mismatch 222
End Task Complete 222
iFEr Communication Error 222
2.3 Drive Alarms, Faults, and Errors
182
