YASKAWA A1000 HHP User Manual

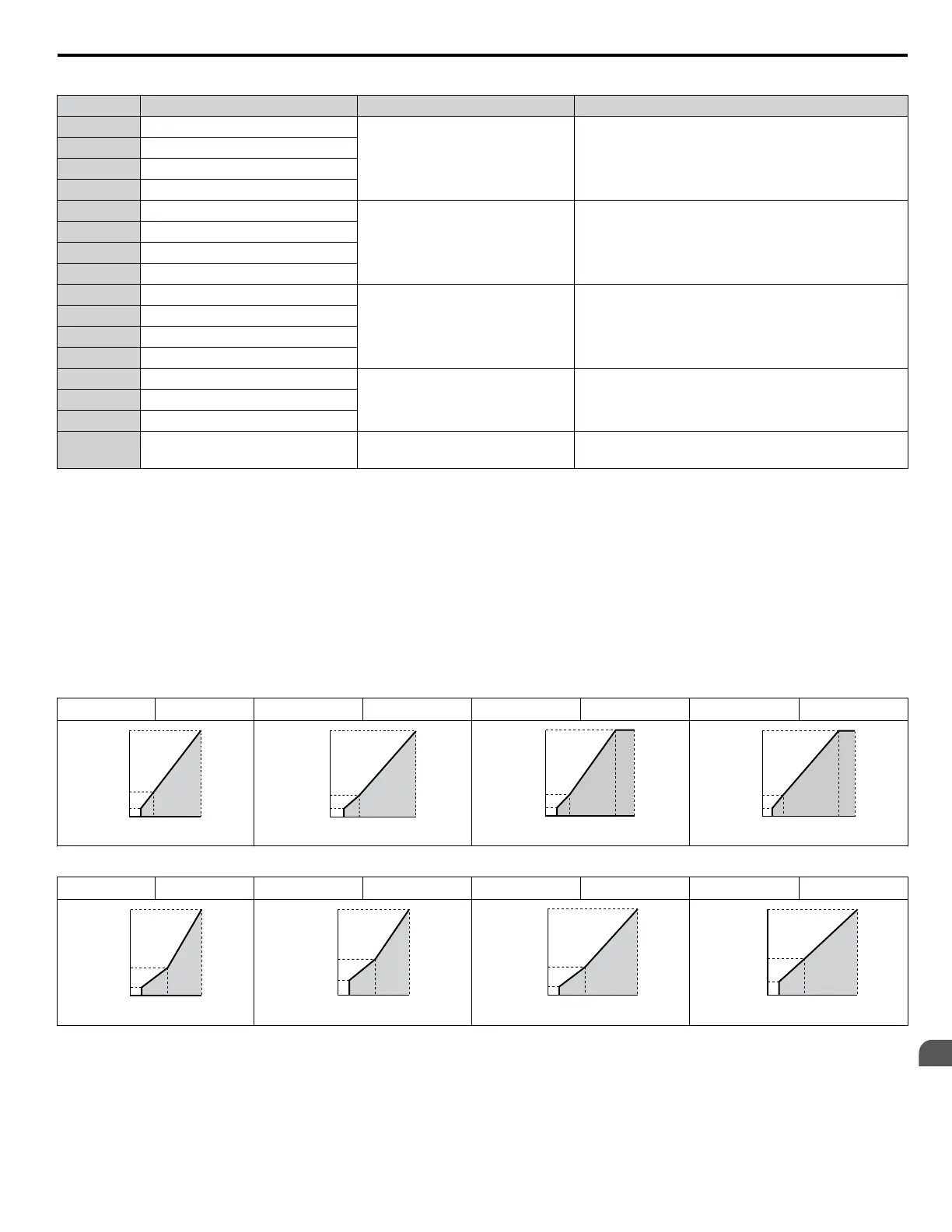

Table 1.31 Predefined V/f Patterns
Setting Specification Characteristic Application
0 50 Hz
Constant torque
For general purpose applications. Torque remains constant
regardless of changes to speed.
1 60 Hz
2 60 Hz (with 50 Hz base)
3 72 Hz (with 60 Hz base)
4 50 Hz, Heavy Duty 2
Variable torque
For fans, pumps, and other applications where the required
torque changes as a function of the speed.
5 50 Hz, Heavy Duty 1
6 50 Hz, Heavy Duty 1
7 50 Hz, Heavy Duty 2
8 50 Hz, mid starting torque
High starting torque
Select high starting torque when:
• Wiring between the drive and motor exceeds 150 m.
• A large amount of starting torque is required.
• An AC reactor is installed.
9 50 Hz, high starting torque
A 60 Hz, mid starting torque
B 60 Hz, high starting torque
C 90 Hz (with 60 Hz base)
Constant output
Output voltage is constant when operating at greater than
60 Hz.
D 120 Hz (with 60 Hz base)
E 150 Hz (with 60 Hz base)
F
<1>
60 Hz Constant torque
For general purpose applications. Torque remains constant
regardless of changes to speed.
<1> Setting F enables a custom V/f pattern by changing parameters E1-04 to E1-13. When the drive is shipped, the default values for parameters E1-04
to E1-13 are the same as those of setting 1.
The following tables show details on predefined V/f patterns.
Predefined V/f Patterns for all HHP models:
• 400 V Class 414 A to 2000 A Heavy Duty, 466 A to 2250 A Normal Duty,
• 575 V Class 414 A to 2000 A Heavy Duty, 466 A to 2250 A Normal Duty,
• 690 V Class 414 A to 2000 A Heavy Duty, 466 A to 2250 A Normal Duty.
The values in the following graphs are specific to 400 V class drives. Multiply the values by 1.4375 for 575 V class drives.
Multiply the values by 1.725 for 690 V class drives.
Table 1.32 Rated Torque Characteristics, Settings 0 to 3
Setting = 0 50 Hz Setting = 1 60 Hz Setting = 2 60 Hz Setting = 3 72 Hz
0
12
400
1.3 2.5 50
24
Voltage (V)
Frequency (Hz)
0
12
400
1.5 3 60
24
Voltage (V)
Frequency (Hz)
0
12
24
400
1.5 3 6050
Voltage (V)
Frequency (Hz)
0
12
24
400
1.5 3 7260
Voltage (V)
Frequency (Hz)
Table 1.33 Derated Torque Characteristics, Settings 4 to 7
Setting = 4 50 Hz Setting = 5 50 Hz Setting = 6 60 Hz Setting = 7 60 Hz
0
10
400
1.3 25 50
70
Voltage (V)
Frequency (Hz)
0
12
400
1.3 25 50
100
Voltage (V)
Frequency (Hz)
0
10
400
1.5 30 60
70
Voltage (V)
Frequency (Hz)
0
12
400
1.5 30 60
100
Voltage (V)
Frequency (Hz)
1.5 E: Motor Parameters
YASKAWA ELECTRIC SIEP YEAHHP 01B YASKAWA AC Drive – A1000 HHP Programming Manual
75
1
Parameter Details

YASKAWA A1000 HHP Specifications

General

Series	A1000
Overload Capacity	150% for 60 seconds
Horsepower	0.5-1000 HP
Control Method	V/f Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault
Communication	Modbus, DeviceNet, Profibus, Ethernet/IP
Input Voltage	200-240 V, 380-480 V
Output Voltage	0-Input Voltage
Frequency	400 Hz
Power Range	0.4-630 kW
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% RH (non-condensing)
Enclosure Rating	IP20, IP00
Voltage	200-480 V
