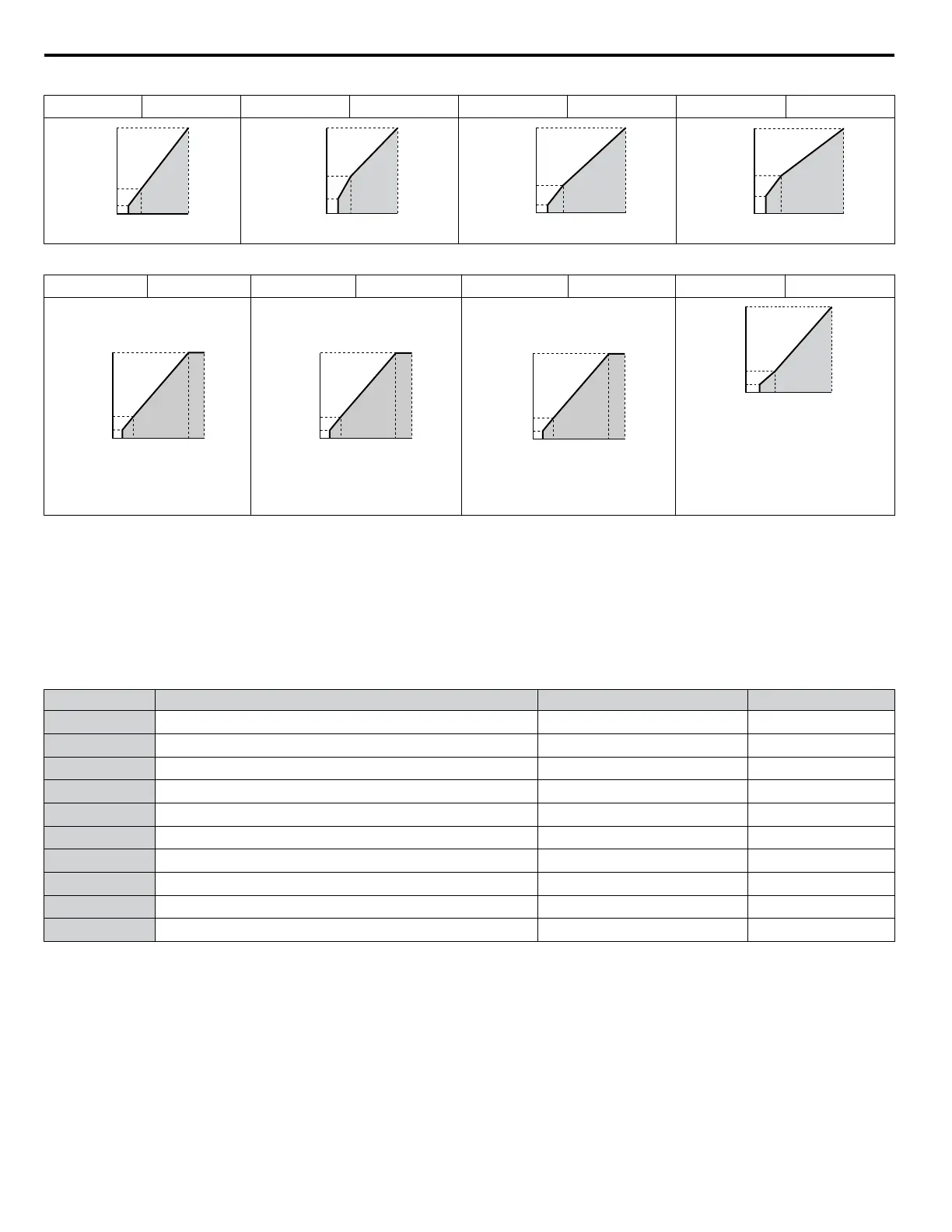

Table 1.34 High Starting Torque, Settings 8 to B
Setting = 8 50 Hz Setting = 9 50 Hz Setting = A 60 Hz Setting = B 60 Hz
0
14
400
1.3 2.5 50
30
Voltage (V)
Frequency (Hz)
0
18
400
1.3 2.5 50
40
Voltage (V)
Frequency (Hz)
0
14
400
1.5 3 60
30
Voltage (V)
Frequency (Hz)
0
22
400
1.5 3 60
40
Voltage (V)
Frequency (Hz)
Table 1.35 Constant Output, Settings C to F
Setting = C 90 Hz Setting = D 120 Hz Setting = E 150 Hz Setting = F 60 Hz
0
12
24
400
1.5 3 9060
Voltage (V)
Frequency (Hz)
0
12
24
400
1.5 3 12060
Voltage (V)
Frequency (Hz)
0
12
24
400
1.5 3 15060
Voltage (V)
Frequency (Hz)
0
13.8
460
1.5 3 60
27.6
Voltage (V)
Frequency (Hz)
Note: The values in this graph are
specific to 400 V class drives in
setting F. Multiply the values by
1.25 for 575 V class drives.
Multiply the values by 1.725 for
690 V class drives.
Setting a Custom V/f Pattern (Setting F: Default)
Setting parameter E1-03 to F allows the user to set up a custom V/f pattern by changing parameters E1-04 to E1-13.
n
V/f Pattern Settings E1-04 to E1-13
If E1-03 is set to a preset V/f pattern (i.e., a value other than F), the user can monitor the V/f pattern in parameters E1-04
through E1-13. To create a new V/f pattern, set E1-03 to F. Refer to V/f Pattern on page 77 for an example custom V/f
pattern.
Note:
Certain E1-oo parameters might not be visible depending on the control mode. Refer to Parameter List on page 235 for details.
No. Parameter Name Setting Range Default
E1-04 Maximum Output Frequency 40.0 to 150.0 Hz
<1>
E1-05 Maximum Voltage
0.0 to 510.0 V
<3> <1>
E1-06 Base Frequency 0.0 to [E1-04]
<1>
E1-07 Middle Output Frequency 0.0 to [E1-04]
<1>
E1-08 Middle Output Frequency Voltage
0.0 to 510.0 V
<3> <1>
E1-09 Minimum Output Frequency 0.0 to [E1-04]
<1>
E1-10 Minimum Output Frequency Voltage
0.0 to 510.0 V
<3> <1>
E1-11 Middle Output Frequency 2 0.0 to [E1-04]
0.0 Hz
<5>
E1-12 Middle Output Frequency Voltage 2
0.0 to 510.0 V
<3>
0.0 V
<4>
<5>
E1-13 Base Voltage
0.0 to 510.0 V
<3>
0.0 V
<4>
<1> Default setting is determined by the control mode.
<3> Values shown are specific to 400 V class drives. Multiply the value by 1.4375 for 575 V class drives. Multiply the value by 1.725 for 690 V class
drives.
<4> The drive changes these settings when Auto-Tuning is performed (Rotational Auto-Tuning, Stationary Auto-Tuning 1, 2).
<5> Parameter ignored when E1-11 and E1-12 are set to 0.0.
1.5 E: Motor Parameters
76
YASKAWA ELECTRIC SIEP YEAHHP 01B YASKAWA AC Drive – A1000 HHP Programming Manual
