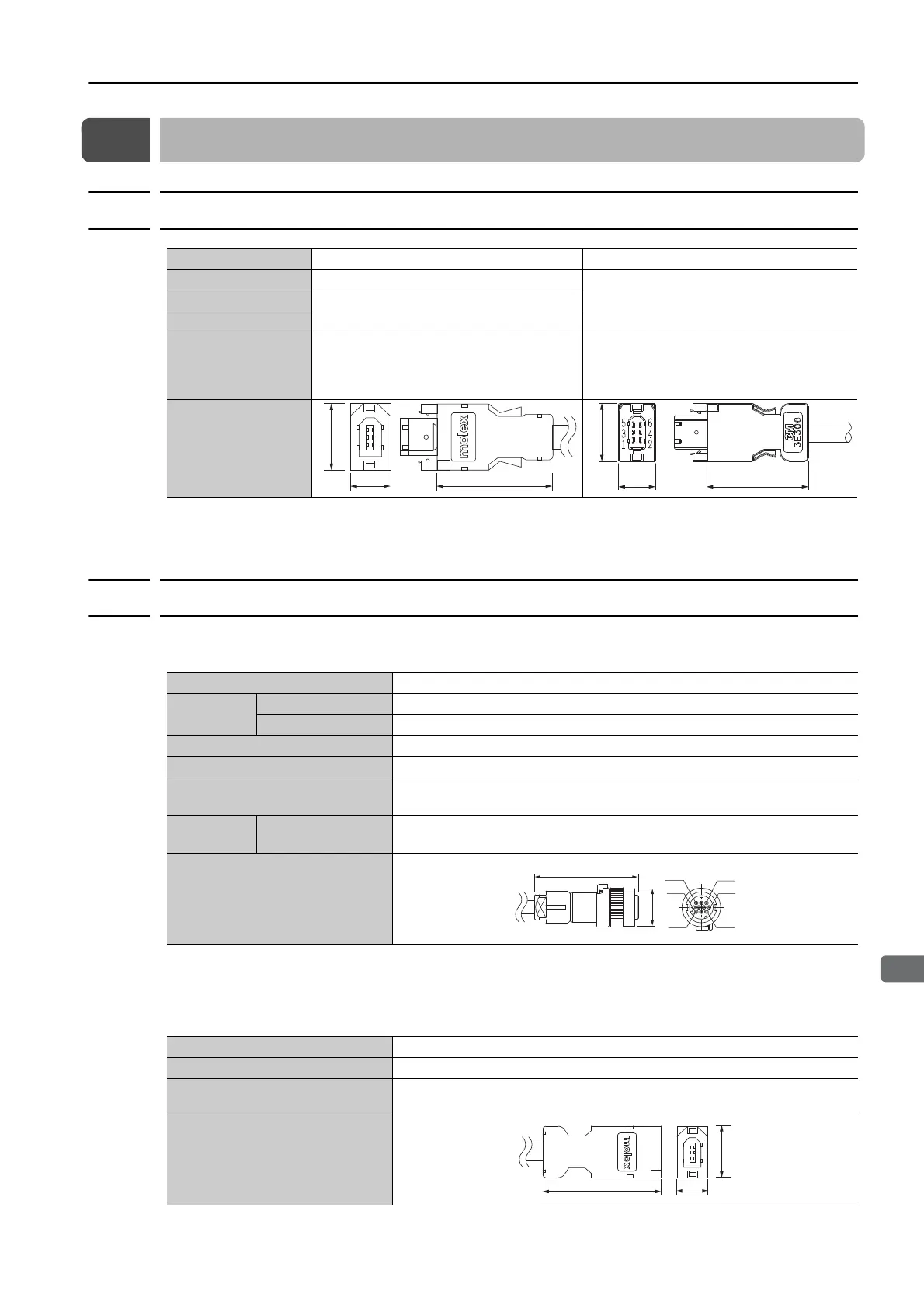

8.6 User-Assembled Wiring Materials for Encoder Cables
8.6.1 SERVOPACK Connector Kits
8-39
8
Cables and User-Assembled Wiring Materials for Direct Drive Servomotors
8.6 User-Assembled Wiring Materials for Encoder Cables
8.6.1 SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited.
Note: Cables are not included. Purchase them separately.
8.6.2 Encoder Connector Kits
Flange Specification 1 or 3
Note: This item is not available from Yaskawa Controls Co., Ltd. Order it directly from Japan Aviation Electronics
Industry, Ltd. The tool is not provided by Yaskawa.
Flange Specification 4 or 5
Type Standard Connector Kit Compatible Connector Kit*
Inquires Yaskawa Controls Co., Ltd.
3M Japan LimitedManufacturer Molex Incorporated
Order Number JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042 and
JNPS-1043
External Dimen-
sions [mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
Manufacturer Japan Aviation Electronics Industry, Ltd.
Order
Number
Straight Plug JN1DS10SL1 (crimped)
Socket Contacts JN1-22-22S-PKG100
Applicable Wire Sizes AWG21 to AWG25
Applicable Cable Diameter 5.7 mm to 7.3 mm
Outer Diameter of Insulating
Sheath
0.8 mm to 1.5 mm
Crimping
Tool
Hand Tool CT150-2-JN
External Dimensions [mm]
Manufacturer Molex Incorporated
Order Number JZSP-CMP9-2-E
Specifications
54280-0609 (soldered)
Product specifications: PS-54280
External Dimensions [mm]
1
3
7
10
4
8
51.5 max.
18.8 dia.
1
2
3
4
5
6
(19)
(12)
(44)
