YASKAWA SGD7W - Page 179

8.5 Relay Encoder Cable of 30 m to 50 m
8.5.4 SGMCS Encoder Cables
8-38

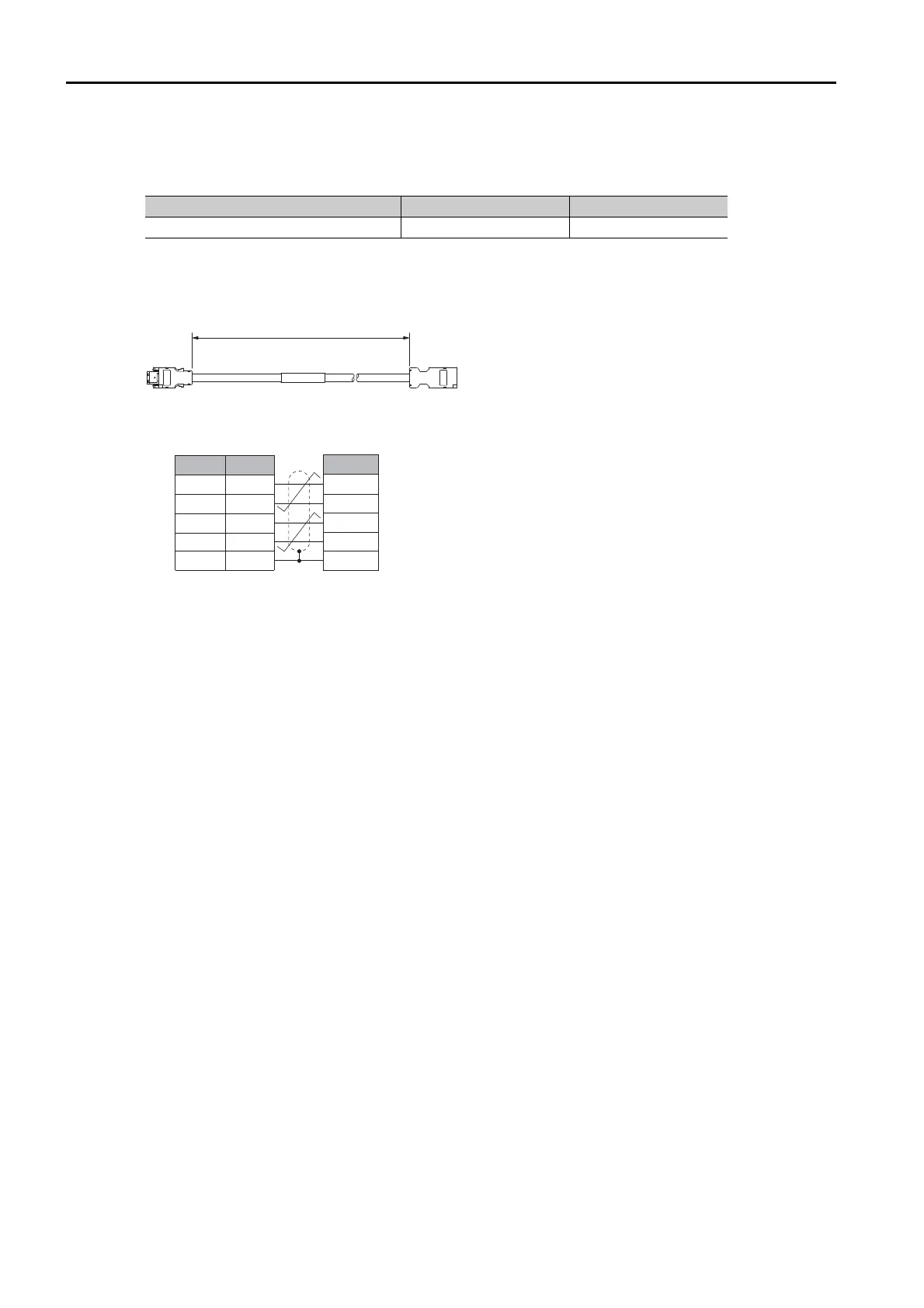

SERVOPACK-End Relay Encoder Cables
 Selection Table
* Replace the boxes () in the order number with the cable length (30, 40, or 50).
 External Dimensions
 Wiring Specifications
Note: Always connect the shield wire from the Encoder Cable to the connector case (shell).
Specification Length (L) Order Number*
For incremental or absolute encoder 30 m, 40 m, and 50 m JZSP-UCMP00--E
Encoder endSERVOPACK end
L
Pin
5
6
2
1
Pin Signal
6
5
2
1
Shell FG
Shell
SERVOPACK end
Shield wire
PG5V
PG0V
PS
/PS
Encoder (motor) end
