10.5 I/O Signal Cables for SERVOPACKs
10.5.4 For Servo Section of Σ-7C SERVOPACKs
10-24
Connector Kits
 Selection Table
• Wire Sizes
Note: Use a twisted-pair or screened twisted-pair cable.

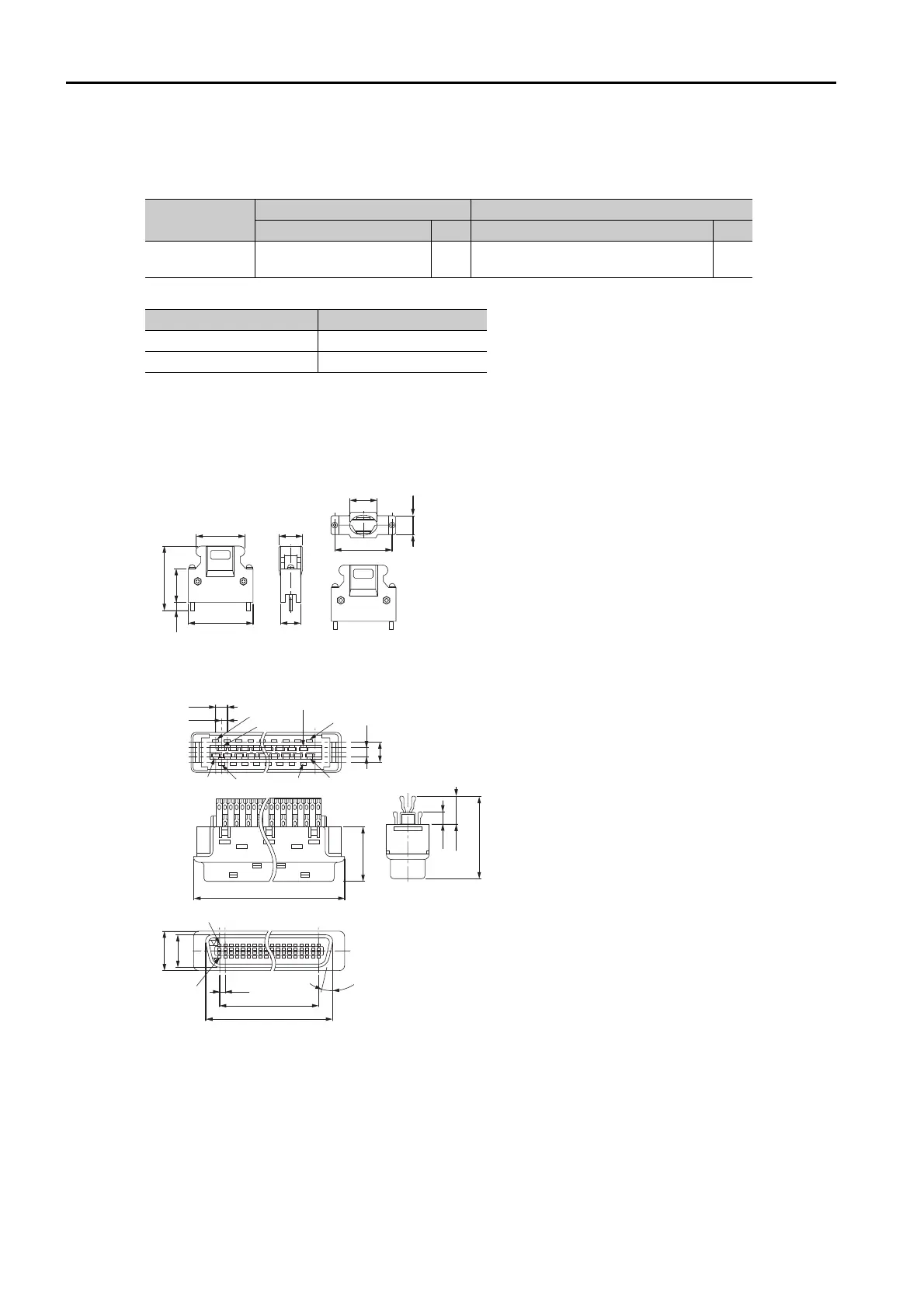

 Dimensional Drawings
 Case
 Connectors
Connector Kit
Order Number
Case Connectors
Model Qty Model Qty
DP9420007-E
10336-52A0-008
(3M Japan Limited)
1 set
10136-3000PE (soldered)
(3M Japan Limited)
1
Item Specification
Applicable Wires AWG24, 26, 28, 30
Cable Finished Diameter 16 mm max.
43.5
12.7
32.2
37.6
17.0
14.0
39.0
23.8
(5.2)
14.0
Unit: mm
2.54
Pin 19
1.27
Pin 14
Pin 1
27.8
21.59
15°
1.27
32.2
5.1
(6.8)
19.5
(2.9)
2.3
12.7
3M
Pin 20
Pin 1
Pin 2
Pin 17
Pin 18
Pin 36
Pin 35
9.1
7.5
Unit: mm
