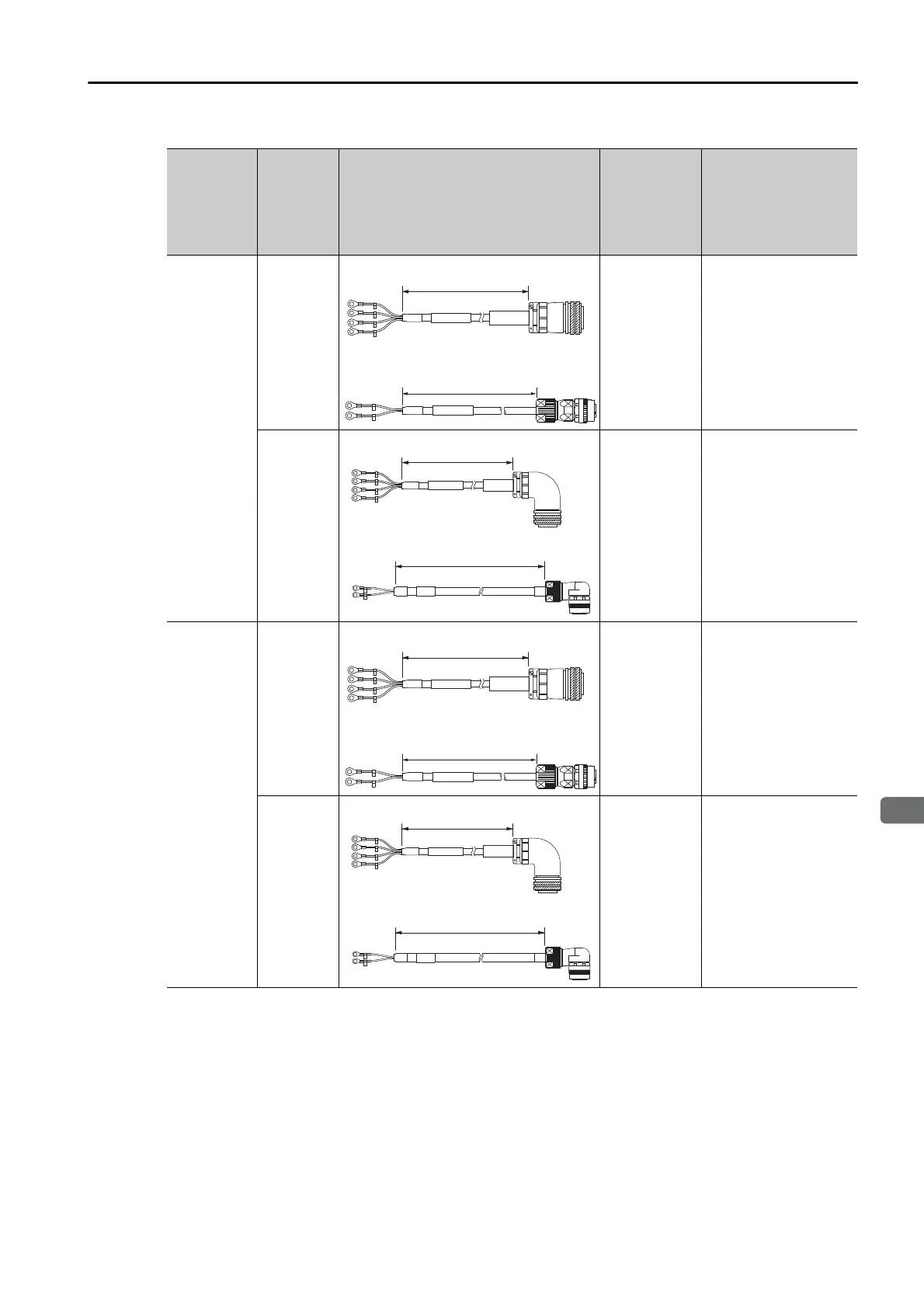

YASKAWA SGD7W - Page 65

4.2 Servomotor Main Circuit Cables
4.2.2 Servomotor Main Circuit Cables for Servomotors with Holding Brakes
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-9
SGM7A-20
2.0 kW
Straight
Standard
Cable:
JZSP-
UVA331--
E
Flexible Cable:
JZSP-
UVA341--
E
• Main Circuit Power
Supply Cable
Standard Cable:
JZSP-UVA301-
-E
Flexible Cable:
JZSP-UVA321--E
• Holding Brake
Cable
*2
JZSP-U7B23--E
Right-
angle
*1
Standard
Cable:
JZSP-
UVA332--
E
Flexible Cable:
JZSP-
UVA342--
E
• Main Circuit Power
Supply Cable
Standard Cable:
JZSP-UVA302-
-E
Flexible Cable:
JZSP-UVA322-
-E
• Holding Brake
Cable
*2
JZSP-U7B24--E
SGM7A-25
2.5 kW
Straight
Standard
Cable:
JZSP-
U7A551--
E
Flexible Cable:
JZSP-
U7A561--
E
• Main Circuit Power
Supply Cable
Standard Cable:
JZSP-U7A501-
-E
Flexible Cable:
JZSP-U7A521--E
• Holding Brake
Cable
*2
JZSP-U7B23--E
Right-
angle
*1
Standard
Cable:
JZSP-
U7A552--
E
Flexible Cable:
JZSP-
U7A562--
E
• Main Circuit Power
Supply Cable
Standard Cable:
JZSP-U7A502-
-E
Flexible Cable:
JZSP-U7A522--E
• Holding Brake
Cable
*2
JZSP-U7B24--E
Continued on next page.
*1. The lead installation direction is away from the load.
*2. Flexible Cables are provided as a standard feature.
Continued from previous page.
Servomotor
Model
Connector
Type
External Dimensions
Order Num-
bers of Main
Power Sup-
ply Cable and
Holding Brake
Cable
Individual Cable Order
Numbers
L
SERVOPACK end Motor end
L
SERVOPACK end Brake end
L
SERVOPACK end Motor end
L
Brake end Motor end
L
SERVOPACK end Motor end
L
SERVOPACK end Brake end
L
SERVOPACK end Motor end
L
Brake end Motor end
