4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.2 Standard-Structure Servomotor Connectors for 1.5 kW to 7.0 kW
4-16

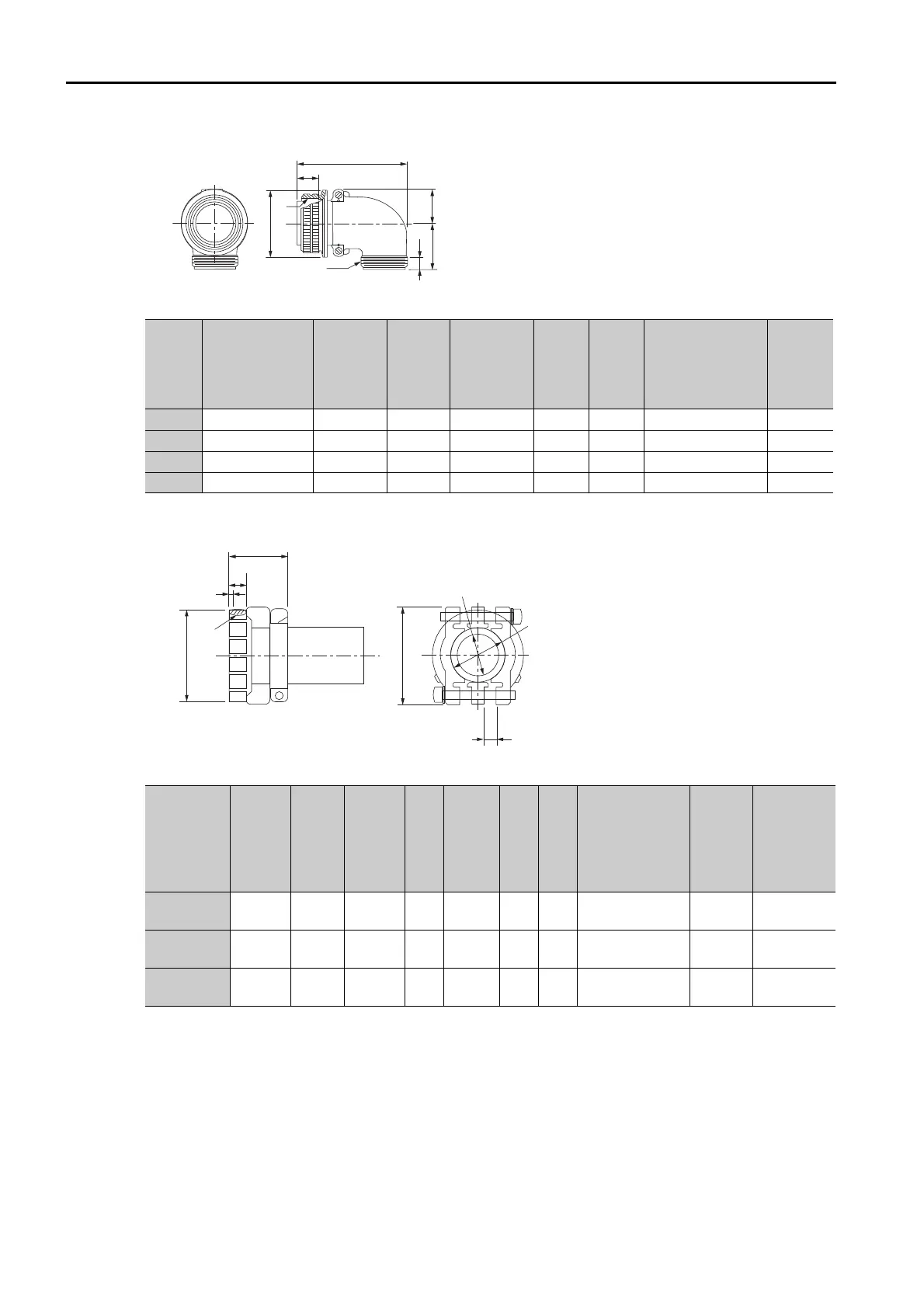

 Right-Angle Plug: N/MS3108B-S
Unit: mm
 Cable Clamp: N/MS3057-A
Unit: mm
Note: A rubber bushing is included.
Shell
Size
Joint Thread
A
Length of
Joint
J±0.12
Tot al
Length
L Max.
Joint Nut
Outer
Diameter
Q Dia.
R
± 0.5
U
± 0.5
Cable Clamp
Mounting Thread
V
Effec-
tive
Thread
Length
W Min.
18 1-1/8-18UNEF 18.26 68.27 34.13 20.5 30.2 1-20UNEF 9.53
20 1-1/4-18UNEF 18.26 76.98 37.28 22.5 33.3 1-3/16-18UNEF 9.53
22 1-3/8-18UNEF 18.26 76.98 40.48 24.1 33.3 1-3/16-18UNEF 9.53
24 1-1/2-18UNEF 18.26 86.51 43.63 25.6 36.5 1-7/16-18UNEF 9.53
Part
Appli-
cable
Con-
nector
Shell
Size
Tota l
Length
A ±0.7
Effec-
tive
Thread
Length
C
E
Dia.
G ±0.7 H
J
Dia.
Mounting
Thread
V
Outer
Diame-
ter
Q ±0.7
Dia.
Attached
Bushing
N/MS3057-
10A
18 23.8 10.3 15.9 31.7 3.2 14.3 1-20UNEF 30.1 AN3420-10
N/MS3057-
12A
20, 22 23.8 10.3 19 37.3 4 15.9 1-3/16-18UNEF 35.0 AN3420-12
N/MS3057-
16A
24 26.2 10.3 23.8 42.9 4.8 19.1 1-7/16-18UNEF 42.1 AN3420-16
U
R
W
J
A
Q
L
V
+0
-0.38
G
H (slide range)
E dia.
(Cable Clamp
inner diameter)
J dia. (inner diameter of bushing)
A
V
Q dia.
1.6
C
