4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.2 Standard-Structure Servomotor Connectors for 1.5 kW to 7.0 kW
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-15
2. Brake Power Supply Connector Kits are available from Yaskawa Controls Co., Ltd. Use the following model
numbers.
*1. M-size Connector Kits are available as a standard products.
*2. A 357J-50448T Crimping Tool from DDK Ltd. is required.
For Built-in Cooling Fan
Note: Prepare wiring materials that are appropriate for the following cooling fan specifications.
• Single-phase, 220 V
• 50/60 Hz
• 17/15 W
• 0.11/0.09 A

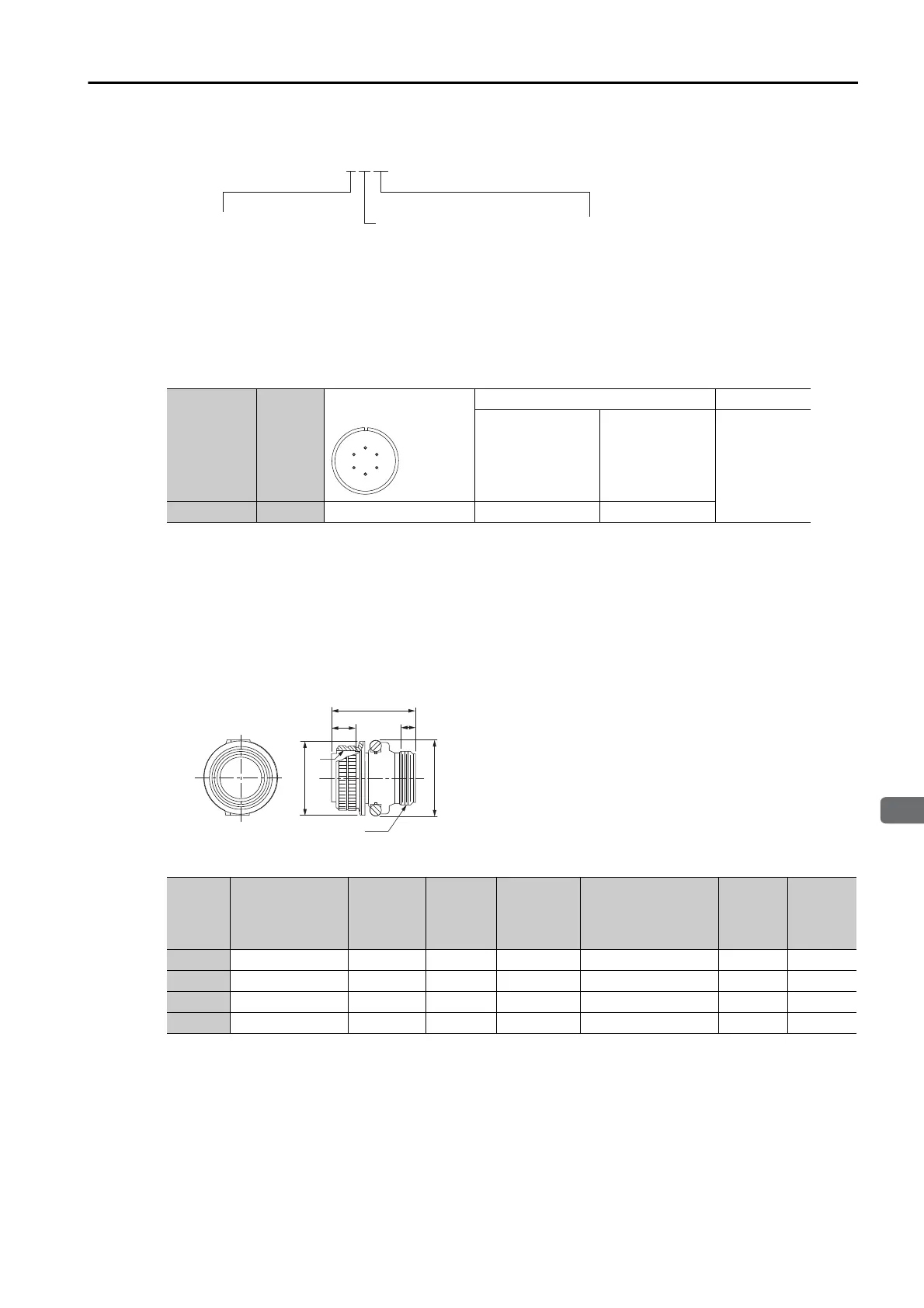

External Dimensions
Straight Plug: N/MS3106B-S
Unit: mm
Servomotor
Model
Capacity
Fan Connector Model
(Receptacle)
Order Number Manufacturer
Plug Cable Clamp
Japan
Aviation
Electronics
Industry, Ltd.
SGM7A-70 7.0 kW MS3102A14S-6P MS3108B14S-6S MS3057-6A
Shell
Size
Joint Thread
A
Length of
Joint
J±0.12
Tota l
Length
L Max.
Joint Nut
Outer
Diameter
Q Dia.
Cable Clamp
Mounting Thread
V
Effective
Thread
Length
W Min.
Maxi-
mum
Width
Y Max.
18 1-1/8-18UNEF 18.26 52.37 34.13 1-20UNEF 9.53 42
20 1-1/4-18UNEF 18.26 55.57 37.28 1-3/16-18UNEF 9.53 47
22 1-3/8-18UNEF 18.26 55.57 40.48 1-3/16-18UNEF 9.53 50
24 1-1/2-18UNEF 18.26 58.72 43.63 1-7/16-18UNEF 9.53 53
J Z S P - C V B 9 - S M S2 - E
Connector Shape
S: Straight plug
A: Right-angle plug
Bush Size
*1
S: S size (4.0 mm to 6.0 mm dia.)
M: M size (6.0 mm to 9.0 mm dia.)
L: L size (9.0 mm to 11.6 mm dia.)
Contact Pin Type
S2: Soldered
C3: Crimped
*2
J
W
A
V
Y
Q
L
