YASKAWA Z1000 CIMR-ZU*A Series User Manual

A
C
D
B
A
C
5A0062, 5A0077, 5A0099,
5A0125, 5A0145
5A0192, 5A0242
A – Fan guard
B – Cable cover
C – Cooling fan
D – Circulation fan

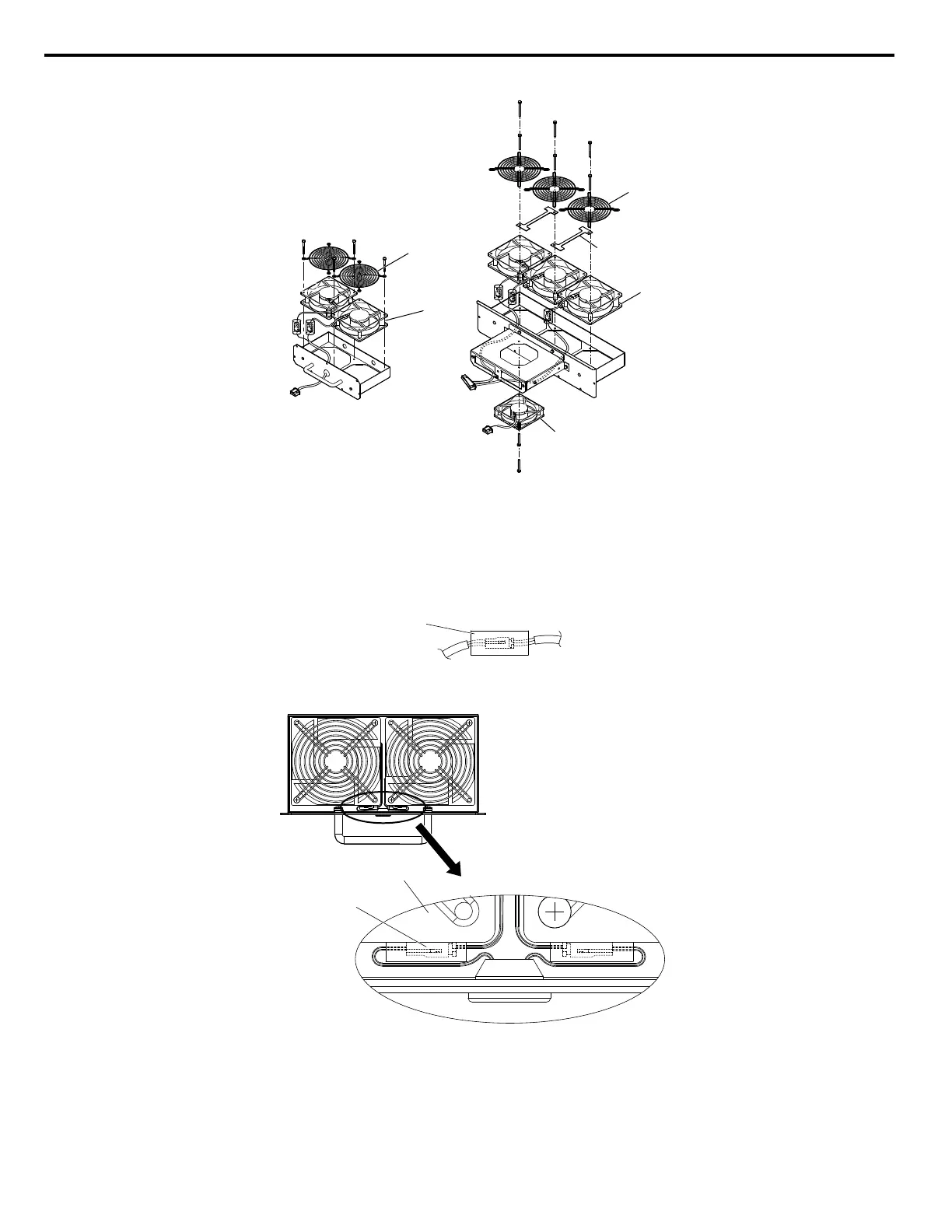

Figure 2.17 Fan Unit Disassembly: 5A0062 to 5A0242
n
Cooling Fan Wiring: 5A0062 to 5A0099
1.
Position the protective tube so the fan connector sits in the center of the protective tube.
Protective tube
2.
Place the fan connector covered by the tube as shown in Figure 2.18.
5A0062, 5A0077, 5A0099
Connector for fan B1
Fan B1
Figure 2.18 Cooling Fan Wiring: 5A0062 to 5A0099
3.
Make sure that the protective tube does not stick out beyond the fan guard.
n
Cooling Fan Wiring: 5A0125 and 5A0145
1.
Position the protective tube so the fan connector sits in the center of the protective tube.
2.5 Drive Cooling Fans
176
YASKAWA SIEP YAIZ1U 03B YASKAWA AC Drive – Z1000 Programming Manual

YASKAWA Z1000 CIMR-ZU*A Series Specifications

General

Series	Z1000 CIMR-ZU*A Series
Category	Controller
Voltage Classes	200V, 400V
Enclosure	NEMA 1, NEMA 12
Frequency Range	0.01 to 400 Hz
Cooling Method	Fan Cooled
Operating Temperature	-10°C to 50°C
Application	HVAC
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Frequency Range (Input)	50/60 Hz
Power Rating	0.4kW to 630kW
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Options	Modbus
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Output Voltage	0-100% of input voltage
