BNC Input/Output and External Input/Output
3
2
1
6
5
4
9
8
7
12
11
10
10
15
14
13
18
17
16
Index
App
• Comparison Result Output Over Range (Compare 0V)
Outputs a level signal when the measured result is over the range.
• Comparison End (Compare End)
Notifies that the comparison result output has been finalized. In the strict sense, the
end timing of the source measure cycle is output as a pulse signal.
Input Section (When Using TRIG IN, SWEEP START IN, and CTRL IN)
Input level: TTL level
Minimum pulse width when applying edge input: 10 µs or greater

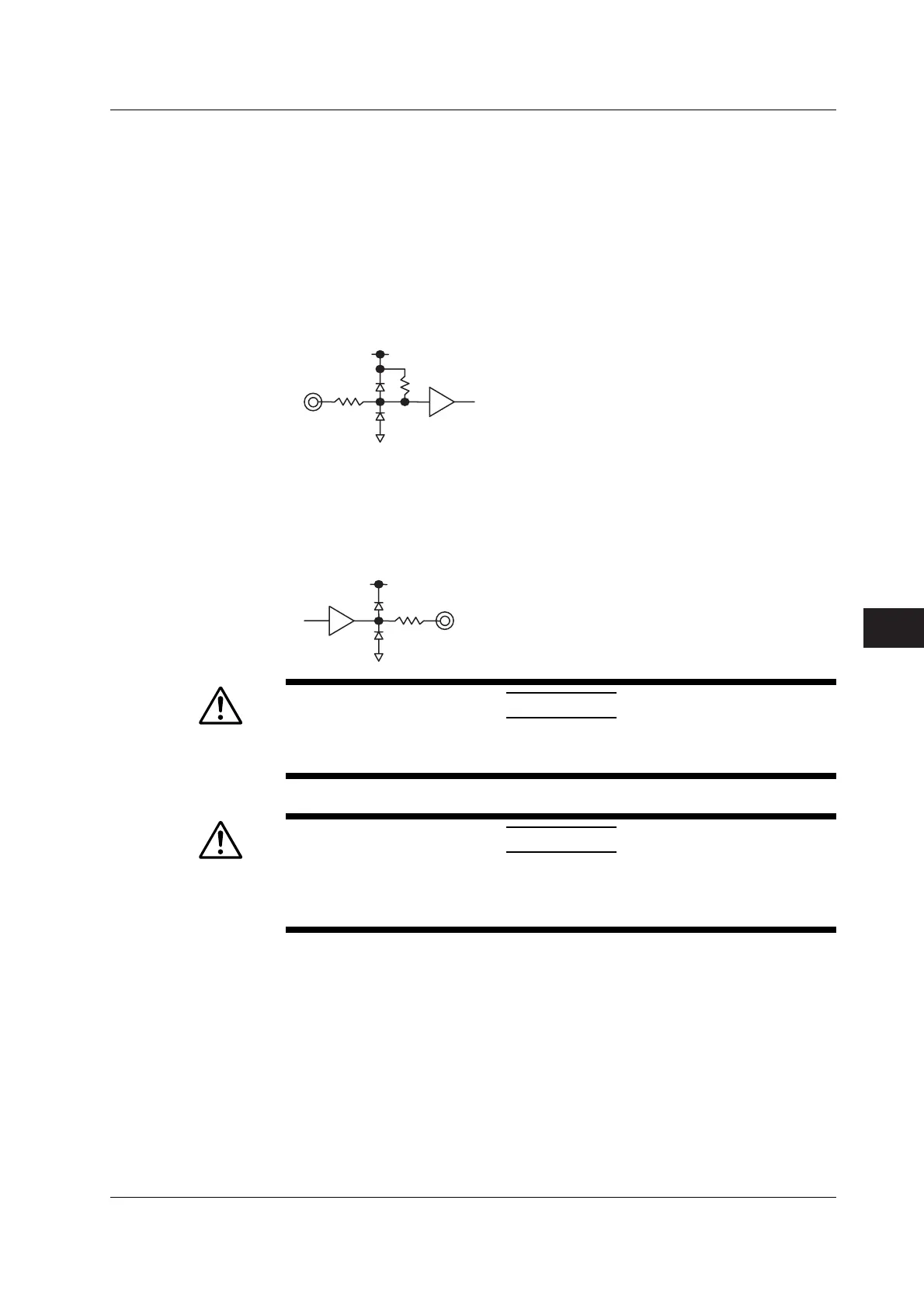

• Input Circuit Diagram
+5 V
10 kΩ
100 Ω
Output Section (When Using TRIG OUT, SWEEP SYNC OUT, and CTRL OUT or
COMPARE HI, COMPARE IN, COMPARE LO, COMPARE OV, and COMPARE END)
Output level: TTL level
Pulse width when outputting a pulse signal: Approx. 10 µs
• Output Circuit Diagram
+5 V
100 Ω
CAUTION
• Do not apply a voltage exceeding the TTL level to the input.
• Do not short or apply external voltage to the output.
French
ATTENTION
• N’appliquez pas une tension supérieure au niveau TTL de l’entrée.
• Ne court-circuitez pas la sortie et n’appliquez par de tension externe à cette
dernière.
<<Corresponding Command Mnemonic>>
:ROUTe:BNCI:SELect
:ROUTe:BNCI:CONTrol
:ROUTe:BNCO:SELect
:ROUTe:BNCO:TRIGger
:ROUTe:BNCO:SWEep
:ROUTe:BNCO:CONTrol
:ROUTe:DIO5
:ROUTe:DIO6
:ROUTe:DIO7
:ROUTe:DIO8
10.1 Setting the Input/Output Signals of the BNC Input/Output Terminal and the External Input/Output Connector
