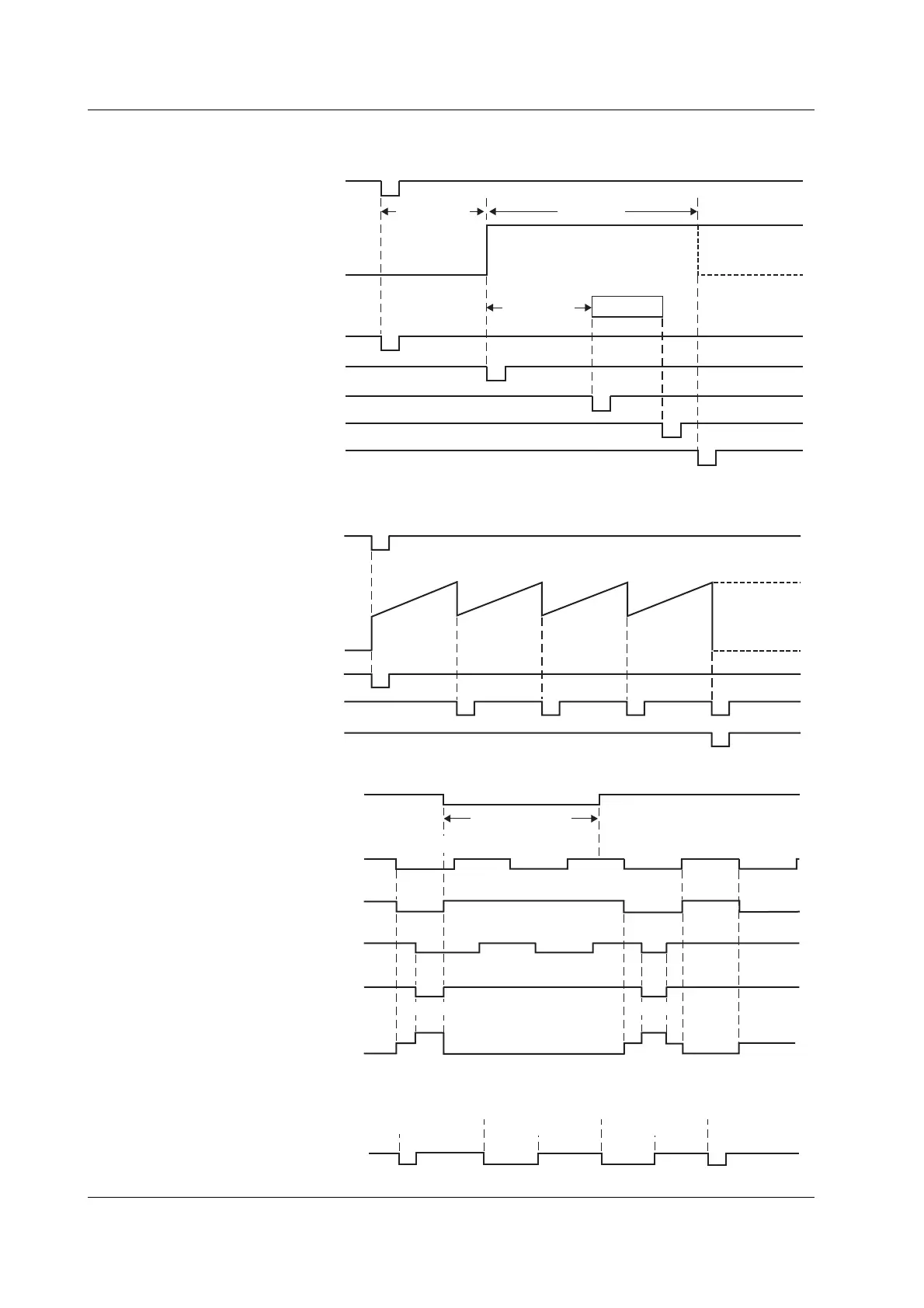

Timing Chart
• Trigger (Trig)
TrigIn
Source
Measurement
TrigOut
Origin
TrigOut
SrcChg
TrigOut
MeasBgn
TrigOut
MeasEnd
TrigOut
PulsEnd
Source delay Pulse width
Measurement
delay
Measurement
During pulse mode
• Sweep
Sweep
Start In
Source
measure
cycle
SweepOut
Origin
SweepOut
TurnEnd
SweepOut
AllEnd
When the sweep
termination mode
is Keep
When the sweep
termination mode
is Rtn
Example when the sweep count is 4
• Control (Ctrl)
Ctrl IN IntLock
Relay cannot be
turned ON
Ctrl IN Output
CtrlOut Output
(relay control)
Ctrl IN Zero
CtrlOut Zero
Status
OFF OFF
OFF
OFF
OFF
OFF
ON ON ON
ON
ON
ON
ON
Relay forcibly turned OFF
Generate
zero
Generate
zero
• Programmable Output (Output Using Communication Commands)
CtrlOut Program
":OUTP:PROG PULS"
":OUTP:PROG PULS"":OUTP:PROG ON"":OUTP:PROG ON"
":OUTP:PROG OFF"
":OUTP:PROG OFF"
10.1 Setting the Input/Output Signals of the BNC Input/Output Terminal and the External Input/Output Connector
