Source Range Setting and Auto Range (See section 5.2 for the procedure)
Source Range Setting
The source range settings during voltage generation and current generation are listed below.
• Voltage Source Range Settings
Source Range Setting Source Range Resolution
200 mV ±205.000 mV 1 µV
2 V ±2.05000 V 10 µV
12 V ±12.0000 V 100 µV
20 V ±20.5000 V 100 µV
30 V ±30.000 V 1 mV
60 V ±60.000 V 1 mV
110 V ±110.000 V 1 mV
• Current Source Range Settings
Source Range Setting Source Range Resolution
20 µA ±20.5000 µA 100 pA
200 µA ±205.000 µA1 nA
2 mA ±2.05000 mA 10 nA
20 mA ±20.5000 mA 100 nA
200 mA ±205.000 mA 1 µA
0.5 A ±0.50000 A 10 µA
1 A ±1.00000 A 10 µA
2 A ±2.00000 A 10 µA
3 A ±3.20000 A 10 µA
Auto Range
If auto range is turned ON, the range setting with the highest resolution that contains the
source level is automatically selected, eliminating the need for you to manually select the
range setting. However, switching the range setting takes time, and the source level becomes
discontinuous, if the range setting switches as a result of changing the source level.
Source Mode (See sections 5.4 and 5.5 for the procedure)
There are two source modes available.
DC Source Mode
If the sweep mode (see section 2.6, “Sweep”) is ON in DC source mode, the source level
changes after a time specified by the source delay elapses from the point in which the
trigger is activated. Then, measurement starts after a time specified by measurement
delay elapses. When the measurement and computation are complete, one source
measure cycle is finished.
If the sweep mode is OFF, the source level is maintained, and the source measure cycle
is carried out.
If the measurement function (see section 2.4, “Measurement”) is turned OFF, measure
delay, measurement, and computation are not carried out. The source measure cycle is
finished when the source level changes.

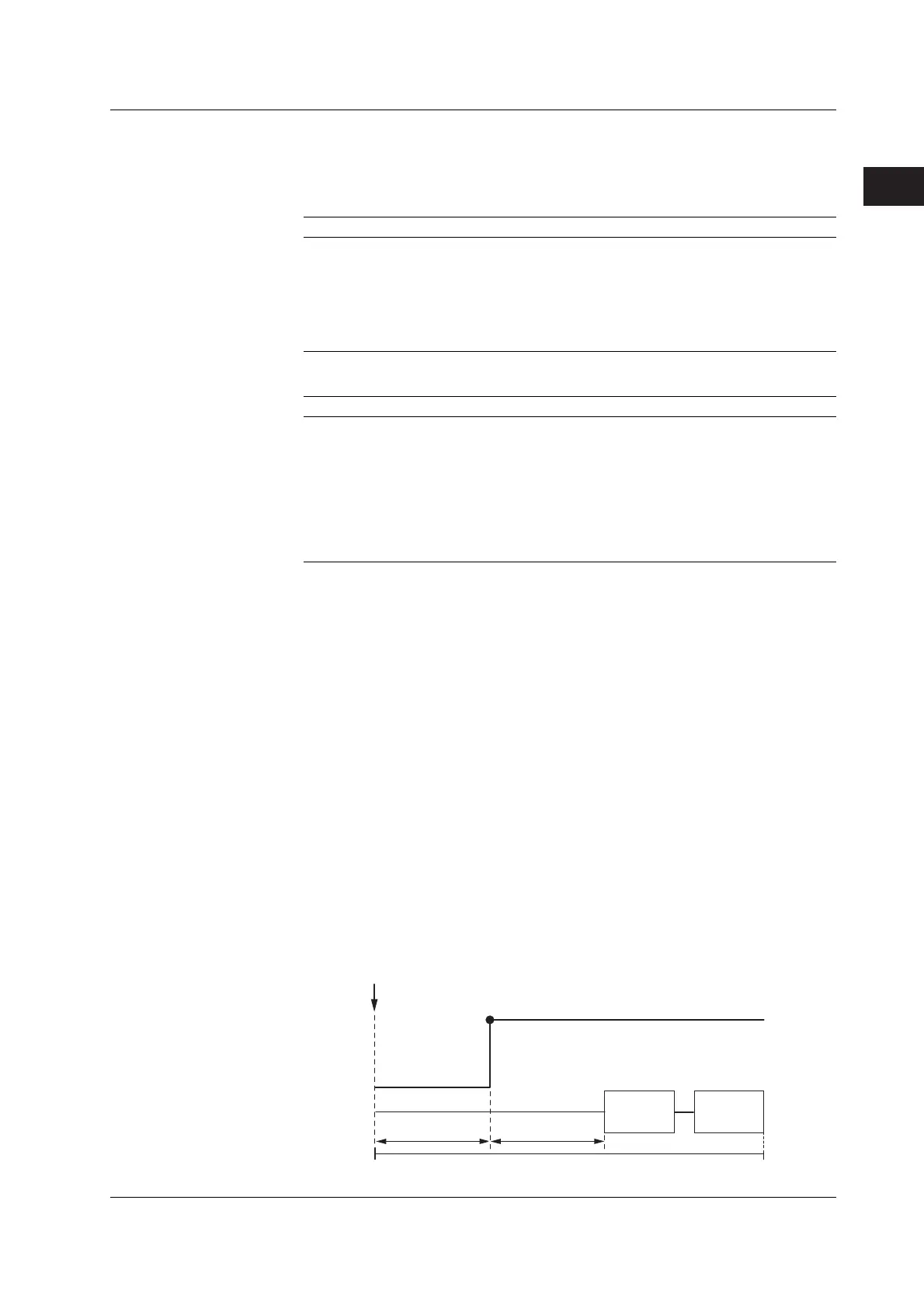

Measurement
Computation
Trigger
Source
Measurement
Current source level
Previous source
level
Source delay
Measurement
delay
Source measure cycle
2.3 Source
