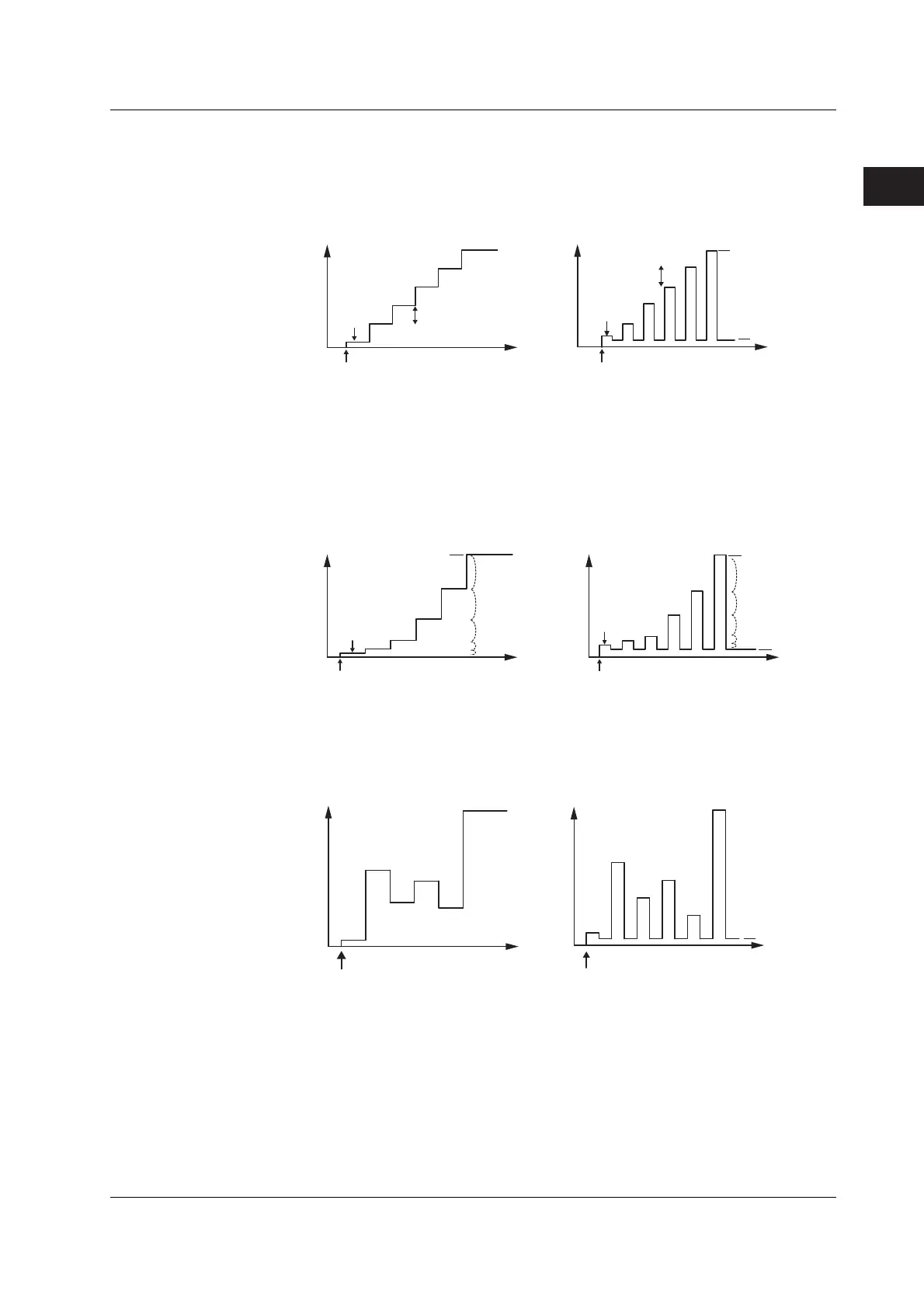

Sweep Mode (See sections 6.1 and 6.2 for the procedure)
Linear Sweep
Sweeps using evenly spaced step values that increase linearly from the specified start
value to the stop value.
Initial
value
Start
Start value
Start value
Initial
value
Start
Step value
Step value
Stop value
Stop value
When the source mode is DC
Base value
When the source mode is pulse
Trigger count Trigger count
Source level
Source level
Log Sweep
Sweeps exponentially from the specified start value to the stop value at the specified
step count.
The step count can be set arbitrary in the range of 2 to 65535. However, if the start
value and stop value have opposite signs, an error occurs, and the sweep operation
cannot be carried out.
Start
Start
Start value
Start value
Stop value
Stop value
Step count
Step count
Initial
value
Base value
When the source mode is pulse
Trigger count
Source level
Initial
value
When the source mode is DC
Trigger count
Source level
Program Sweep
Sweeps according to the values in a pattern file containing an arbitrary sweep pattern.
Program Sweep Example
Initial
value
Start
Initial
value
Start
When the source mode is DC
When the source mode is pulse
Base value
Trigger count
Trigger count
Source level
Source level
2.6 Sweep
