2-16 IM 765501-01E
Termination Mode (See section 6.3 for the procedure)
There are two termination modes, Keep and return (Rtn).
In Keep mode, the last source level of the sweep operation is retained. In Return (Rtn)
mode, the source level after the sweep operation is complete is reset to the level before
the sweep operation was started.

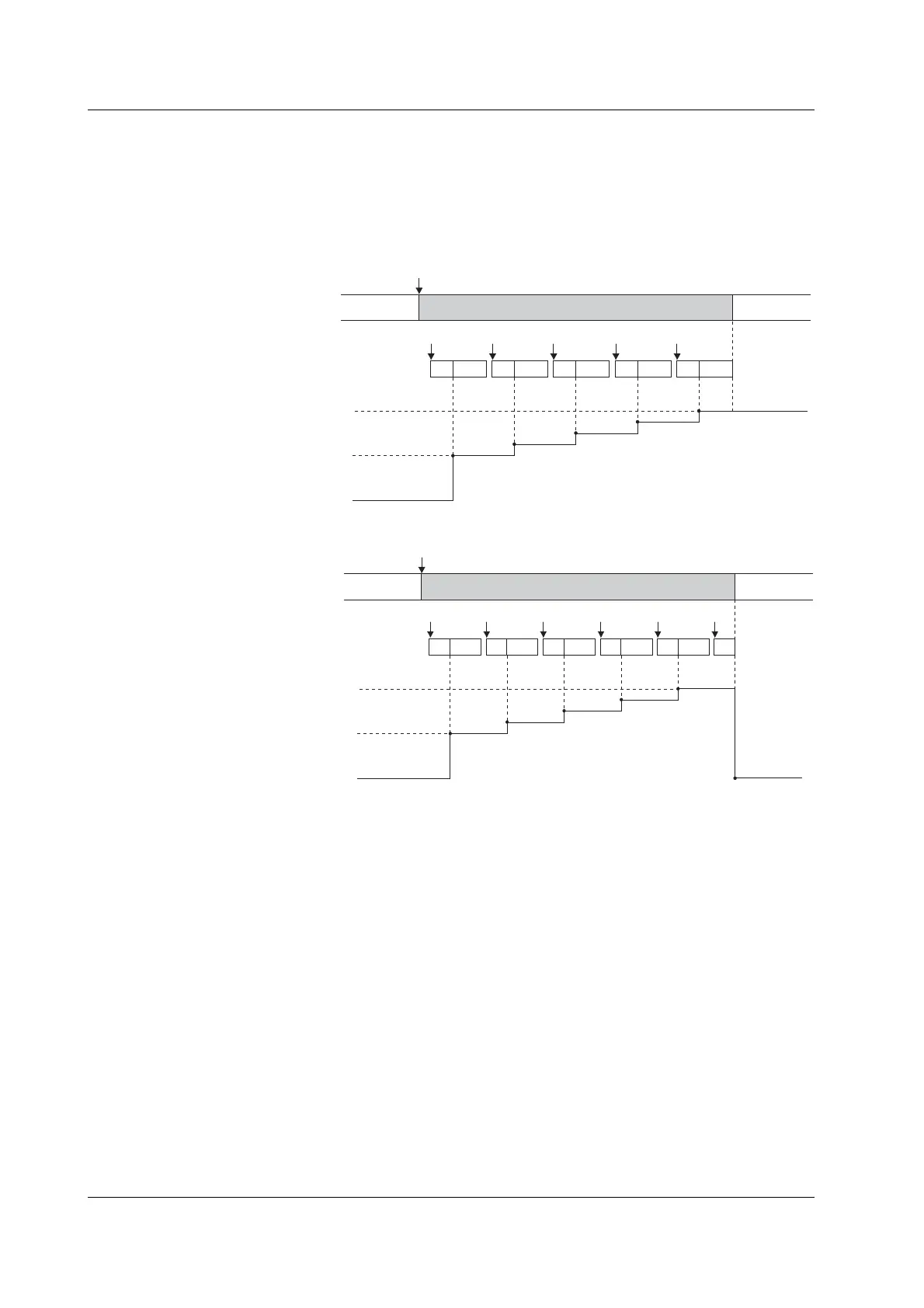

• Sweep operation when the termination mode (Last) is set to keep
Sd
Trigger
Meas
Trigger Trigger Trigger Trigger
Sd
Meas Sd Meas Sd Meas Sd Meas
Source measure
cycle
Source level
Stop value
Start value
Source level
before sweep
Sd: Source delay
Meas: Measurement delay + measurement + computation
Waiting for
start
Sweep state
Start
Waiting for
start
Sweeping
• Sweep operation when the termination mode (Last) is set to return (Rtn)
Sd
Trigger
Meas
Trigger Trigger Trigger Trigger
Sd Meas Sd Meas Sd Meas Sd Meas
Trigger
Sd
Source measure
cycle
Source level
Stop value
Start value
Source level
before sweep
Sd: Source delay
Meas: Measurement delay + measurement + computation
Waiting for
start
Sweep state
Start
Waiting for
start
Sweeping
Repeat Count (See section 6.4 for the procedure)
The selectable range is 1 to 1000 or infinity (∞). For example, if the repeat count is set
to 5, the GS610 repeats the sweep operation five times when it receives a start event.
Then, the GS610 returns to the start-wait condition. If infinity (∞) is selected, the GS610
starts the sweep operation when it receives a start event and repeats the operation until
the sweep operation or output is turned OFF.
2.6 Sweep
