5-10 IM 765501-01E

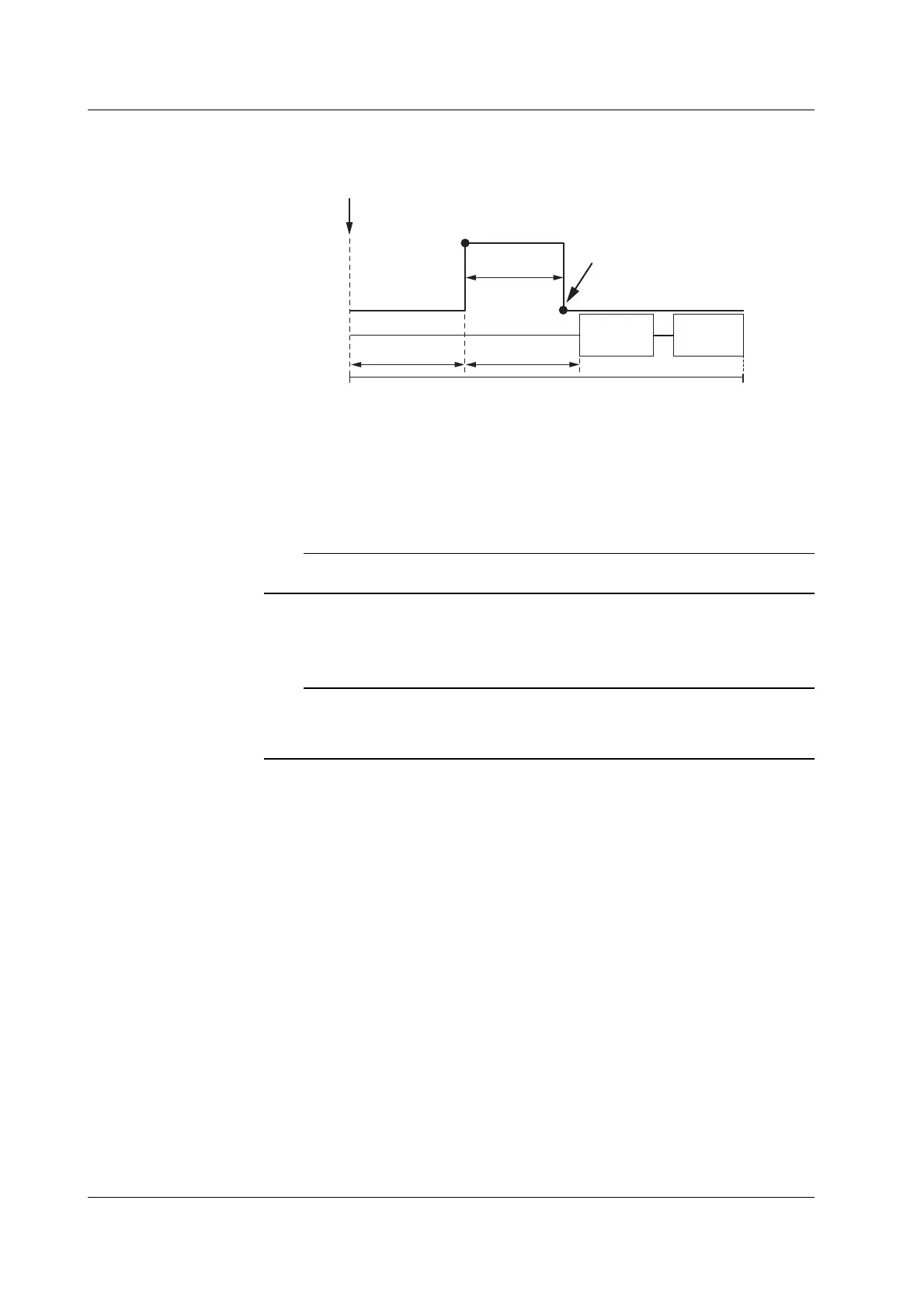

When the End of the Measurement and Computation Is before the End of the Pulse
Generation
Measurement
Computation
Trigger
Source
Measurement
Current source level
Base pulse value Base pulse value
Source delay
Measurement
delay
Source measure cycle
Pulse width
Pulse source end
Selectable Range Source Values (Source Level)
See section 5.2, “Source Range Settings.”
Selectable Range of Pulse Base Values
The pulse base value is the same as the source value (source level).
Note
If the source range setting is auto range, the range setting appropriate for the larger of the
two values |source value| and |pulse base value| is applied.
Selectable Range of Pulse Width
100 µs to 3600.000000 s
Note
If a capacitive or inductive load is connected, the limiter is activated transiently, and the
settling time is increased.
If a capacitive load is connected, the output capacitance of the GS610 is also added. Be
careful of the settling time.
<<Corresponding Command Mnemonic>>
:SOURce:SHAPe
:SOURce:VOLTage:LEVel
:SOURce:VOLTage:PBASe
:SOURce:CURRent:LEVel
:SOURce:CURRent:PBASe
:SOURce:PULSe:WIDTh
5.5 Setting the Pulse Source Mode
